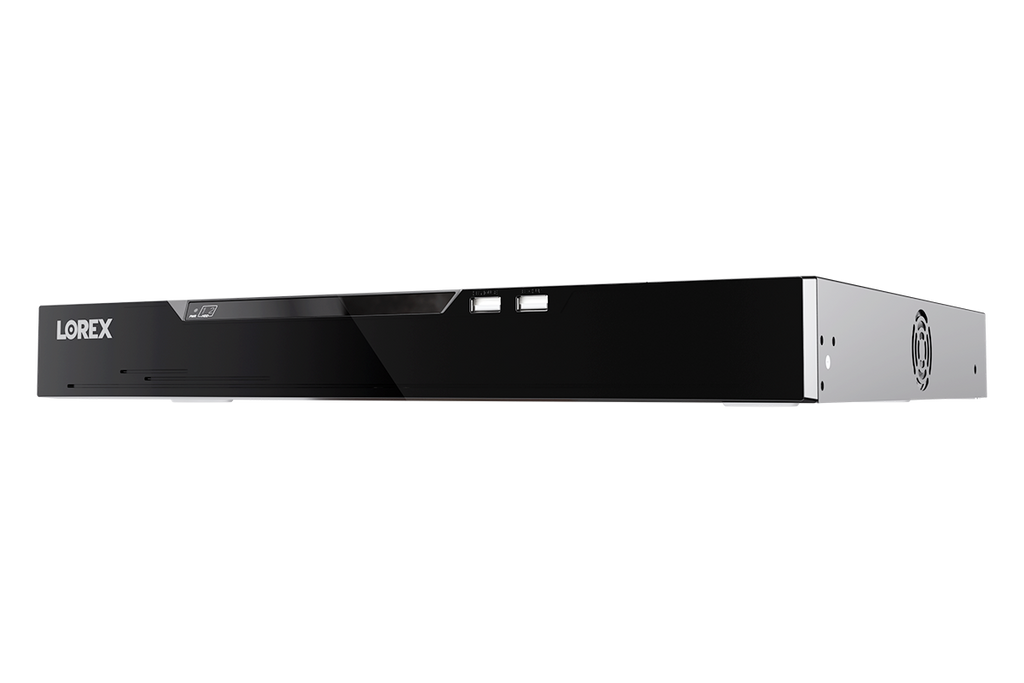

Lorex Connect XC 4K 16-Channel Commercial NVR - 4TB
Lorex Connect XC 4K 16-Channel Commercial NVR - 4TB
- Resolution4K
- Channels16-Channel
- Storage4TB
Best for: growing businesses, retail and commercial properties that need a 4K recorder for up to 16 PoE cameras.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
The Lorex Connect X Series NVR delivers crystal-clear 4K video with intelligent analytics and scalable storage, helping businesses monitor critical areas, detect threats in real time, and optimize operations with confidence. Includes 4TB of storage with 16 built-in PoE ports. No monthly fees.
Key Features

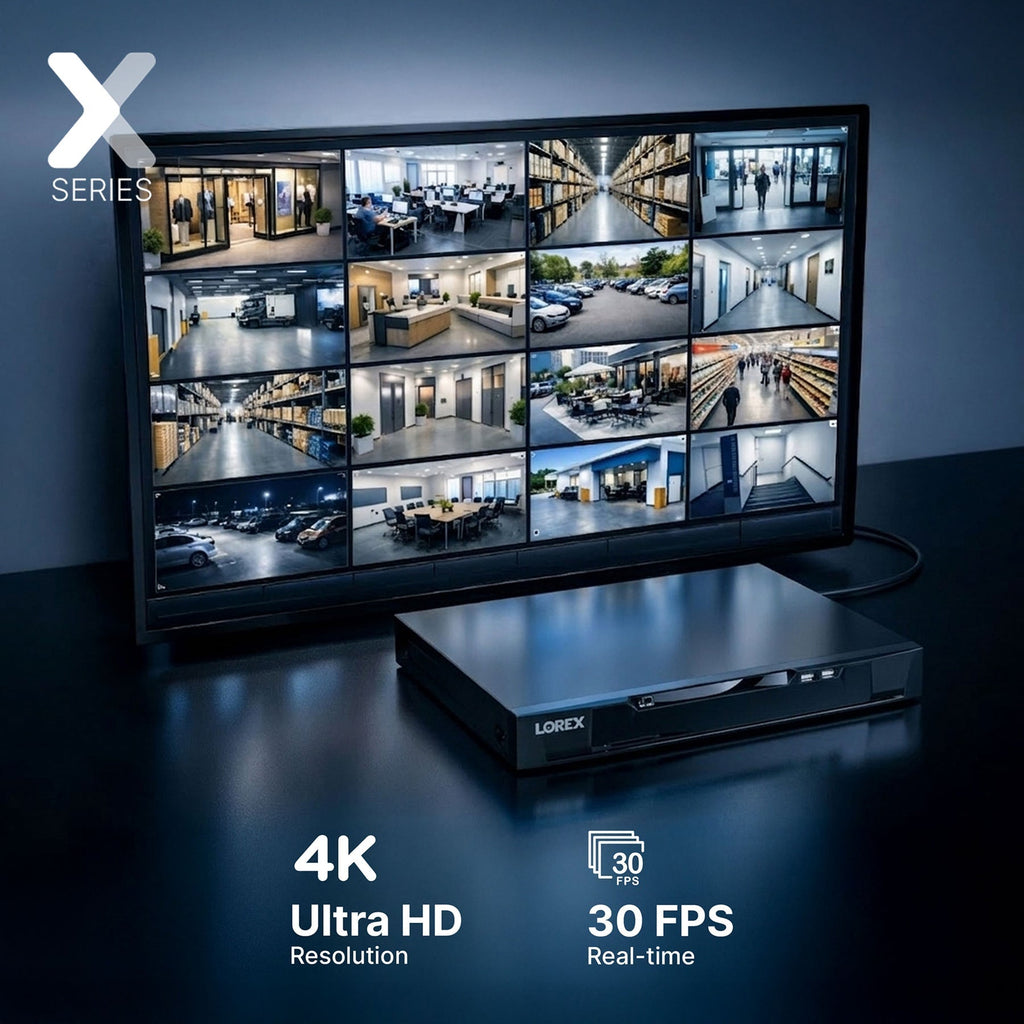

Supports continuous 4K recording
Supports up to 16 cameras

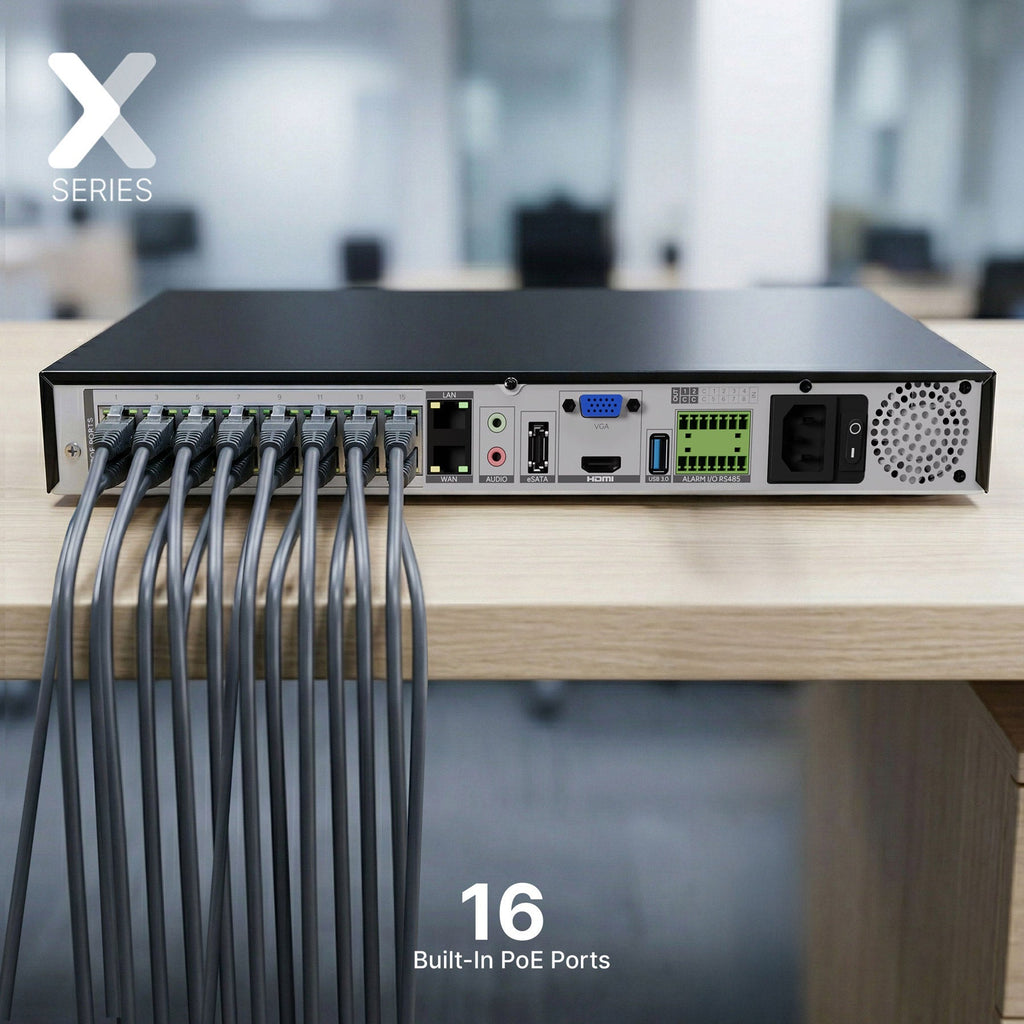

16 built-in PoE ports

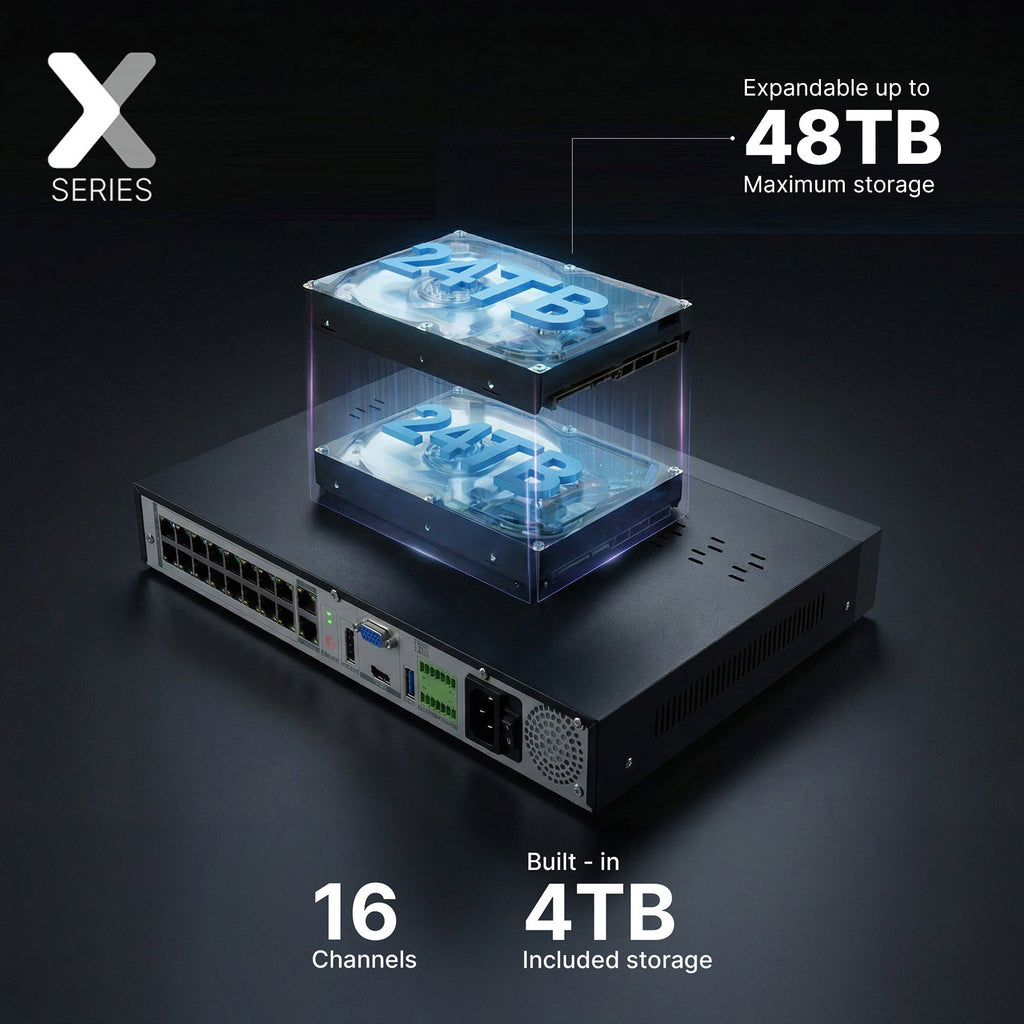

4TB included, expandable up to 48TB
Supports AI-powered detection and analytics
Smart Search quickly locates key activity
Remote viewing and alerts with Lorex Connect
Specifications
| Channels | 16 |
| Video Resolution | 4K (3840 × 2160) display and recording; supports cameras from 720p up to 12MP |
| Built-In PoE | 16 PoE ports, 240 W max total PoE output |
| Storage | 4TB included · 2 SATA bays · expandable up to 48TB (24TB per disk) |
| Video Output | 1 × HDMI (up to 4K) · 1 × VGA (up to 1080p) |
| AI Analytics | Person & vehicle detection, intrusion, loitering, wrong-way, parking, smoke & fire detection, line crossing, heat map, people counting, Smart Search |
| Mobile App | Lorex Connect (iOS and Android) |
| Network | 2 × RJ45 gigabit · ONVIF and RTSP |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Power Consumption | Under 15 W (excluding hard drives) |
Download the full specification sheet (PDF)
Manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ XC 4K 16-Channel NVR (RNU01P-64B-AB1)
- ✔ 4TB of storage
- ✔ 2 × mounting brackets, 6 × mounting bracket screws
- ✔ HDMI cable, power cable, mouse
- ✔ 2 × Alarm I/O terminal block connectors
- ✔ 8 × HDD screws, 4 × adhesive foam feet pads
Add Cameras
Pair this recorder with Lorex X Series PoE cameras:
- ➜ X5 4K Turret Camera
- ➜ X5 4K Bullet Camera
- ➜ X3 4K Turret Camera (Zoom)
- ➜ X3 4K Bullet Camera (Zoom)
- ➜ X3 4K Dual-Lens Camera
- ➜ 4K PTZ Camera
- ➜ 2K+ Dual-Lens PTZ Camera
Prefer a ready-made bundle with cameras included? Browse our X Series systems and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
Are cameras included?
No. This is a recorder only. Cameras are sold separately, or you can choose one of our ready-made X Series systems that include cameras.
Is storage included?
Yes. It includes 4TB of storage and has two SATA bays, so you can expand storage up to 48TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
How do I power my cameras?
The recorder has 16 built-in PoE ports (240 W max total output shared across all connected cameras), so a single network cable can carry both power and video to each PoE camera. Network cable is not included. Please check each camera’s power requirements before installing.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with an HDMI cable, power cable, mouse and mounting brackets.
Compare XC Recorders
| 8-Channel | 16-Channel (this recorder) |
32-Channel | 32-Channel + PoE Switch | |
|---|---|---|---|---|
| Cameras | Up to 8 | Up to 16 | Up to 32 | Up to 32 |
| PoE Ports | 8 built-in | 16 built-in | 16 built-in | 16 built-in + 16-port PoE+ switch |
| Storage Included | 2TB | 4TB | 8TB | 8TB |
| Max Storage | 12TB | 48TB | 48TB | 48TB |
| Best for | Small shops and offices | Growing businesses | Large sites (extra 16 cameras need a separate PoE switch) | Large sites, all 32 cameras in one package |
