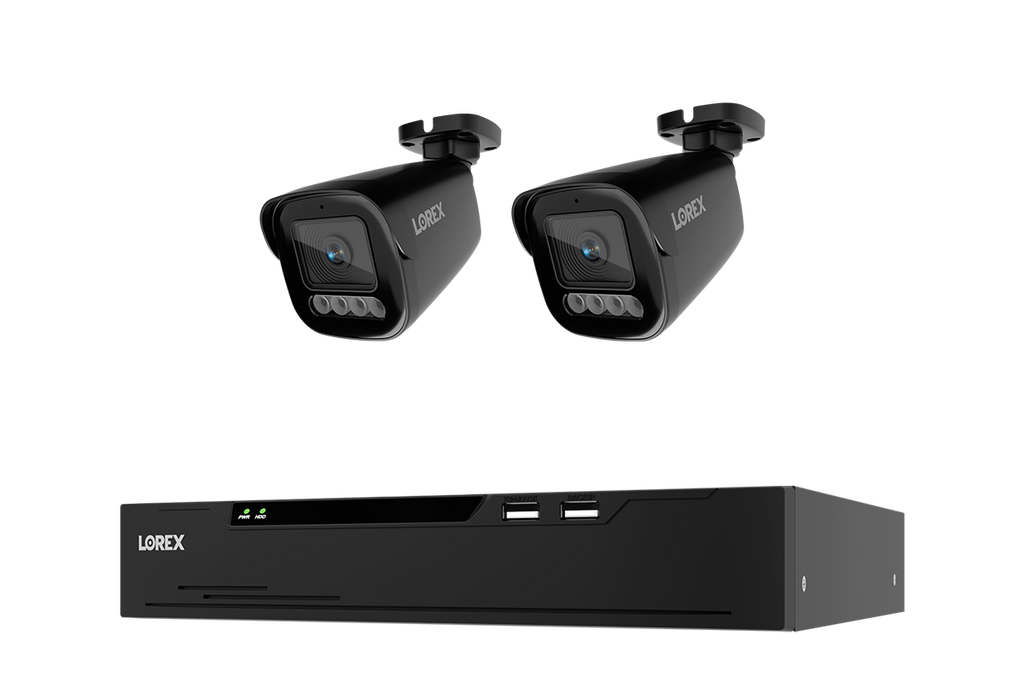

Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Bullet Security Cameras - 2TB
Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Bullet Security Cameras - 2TB
- Resolution4K
- StyleBullet
- Channels8-Channel
- Storage2TB
Best for: parking lots, driveways, long perimeters and building exteriors where you want to zoom in on distant detail. A complete bundle for small shops and offices (up to 8 cameras).
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
Complete 4K surveillance solution featuring an 8-channel NVR with 2TB storage and X3 Bullet cameras equipped with motorized varifocal lenses. Delivers crystal-clear monitoring across multiple zones with wired reliability and advanced connectivity through Lorex Connect. Ideal for businesses requiring professional-grade security with seamless integration and remote access. No monthly fees. Cables not included.
Key Features

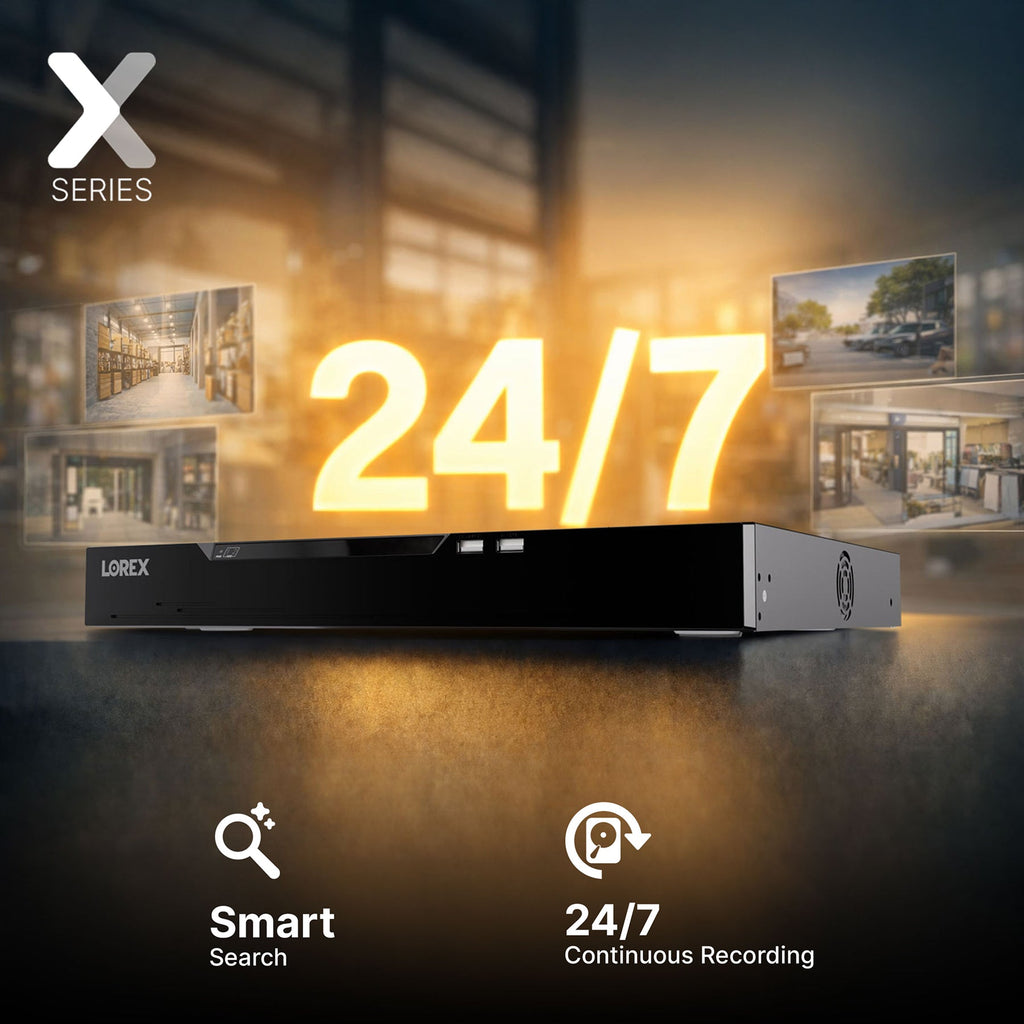

Continuous 4K recording
Connect up to 8 cameras

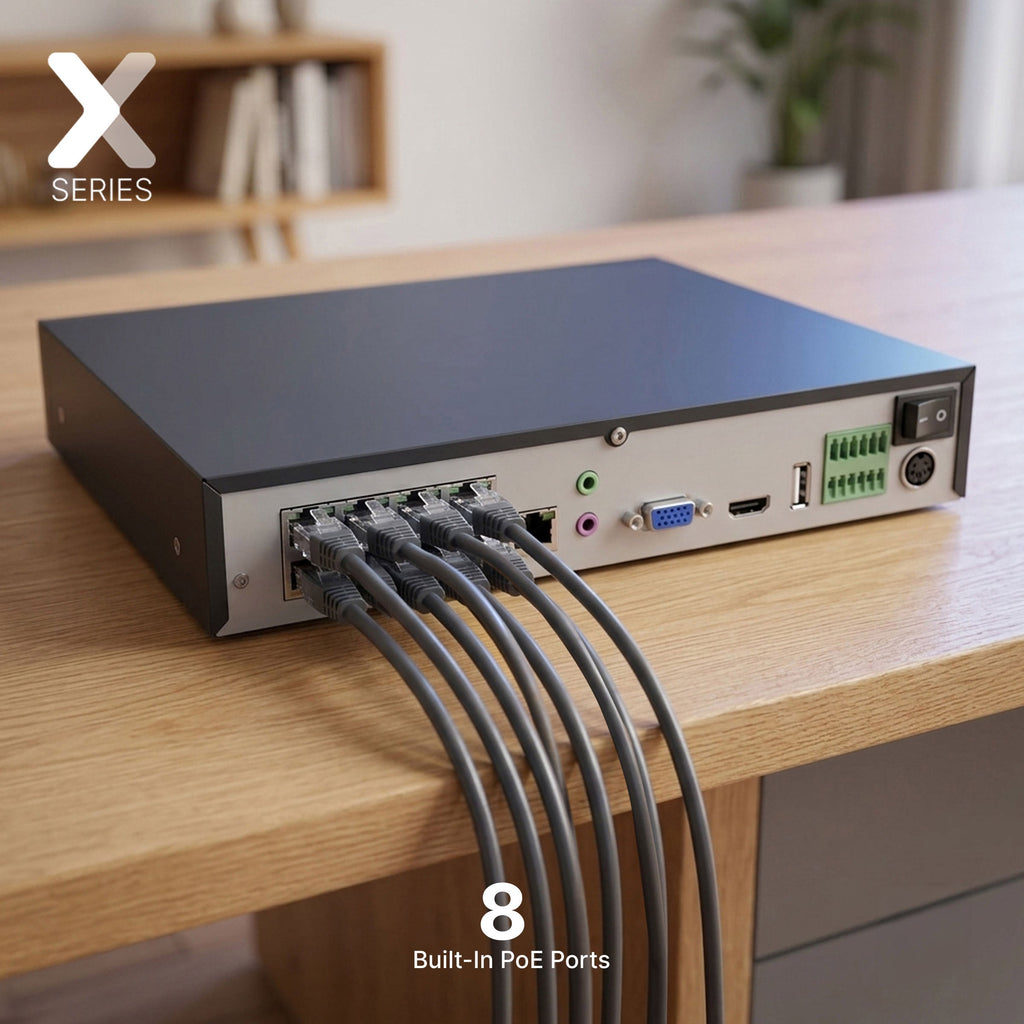

8 built-in PoE ports

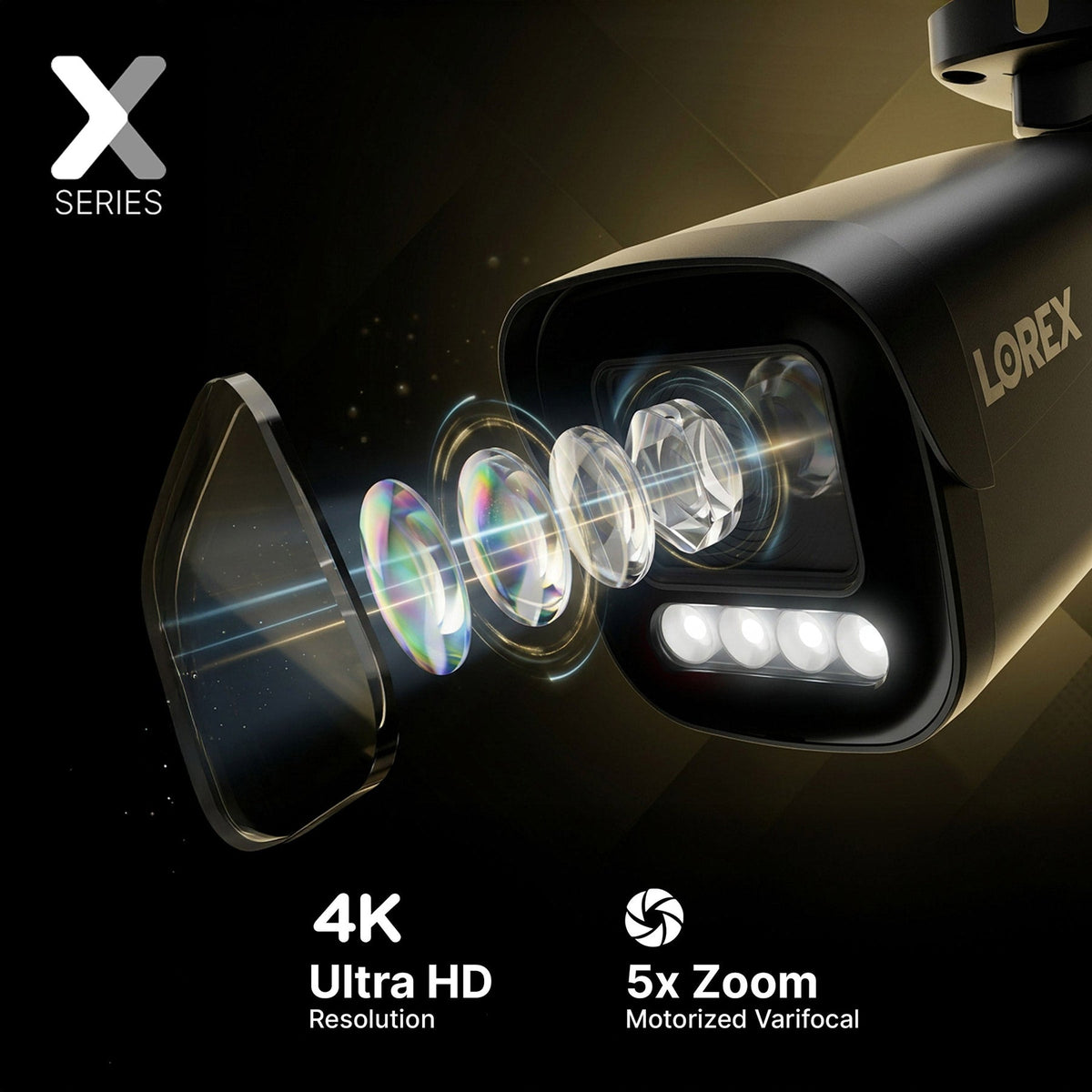

4K clarity with 5× optical zoom

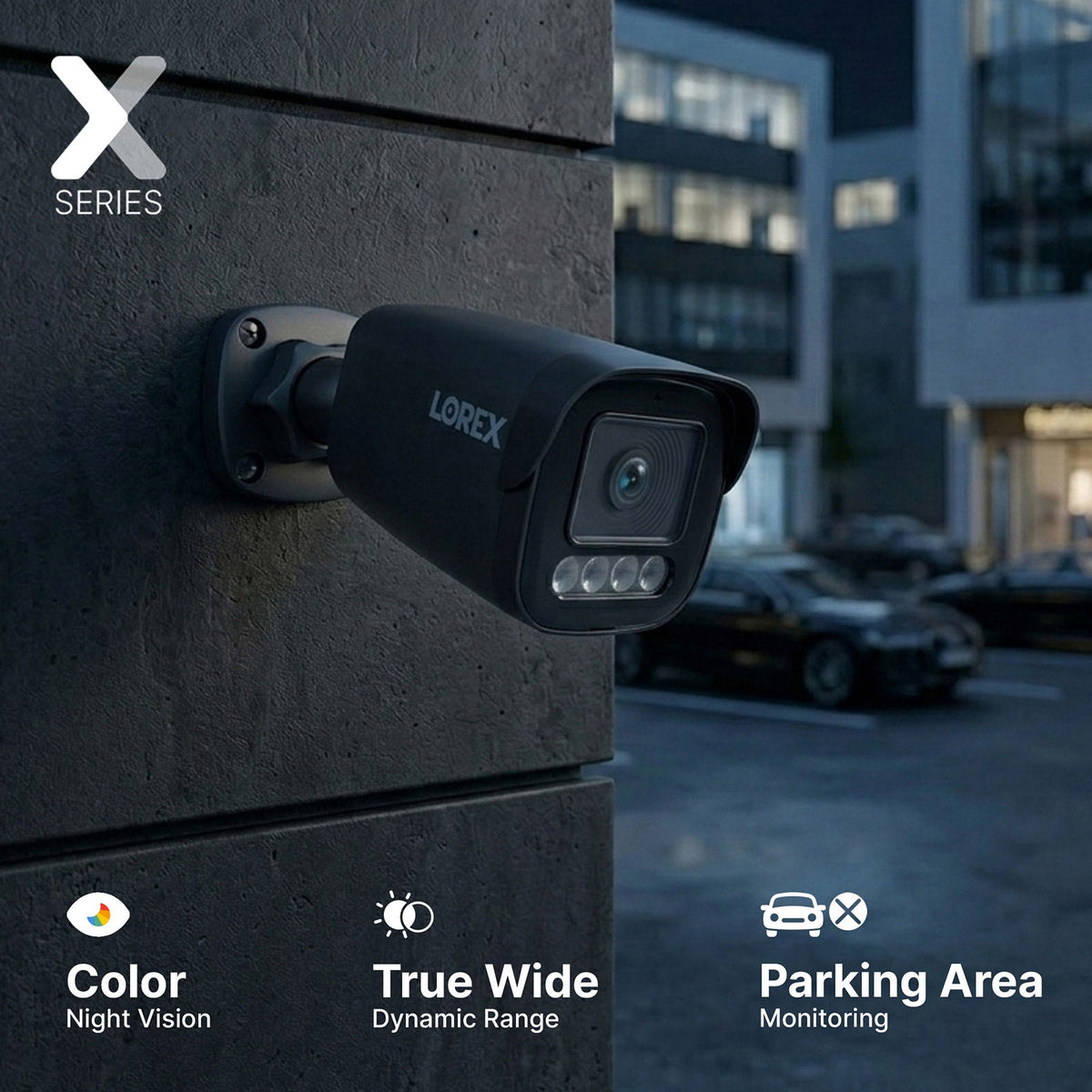

Color Night Vision and long-range IR
Lights, sirens, and warning messages
AI detection and business analytics

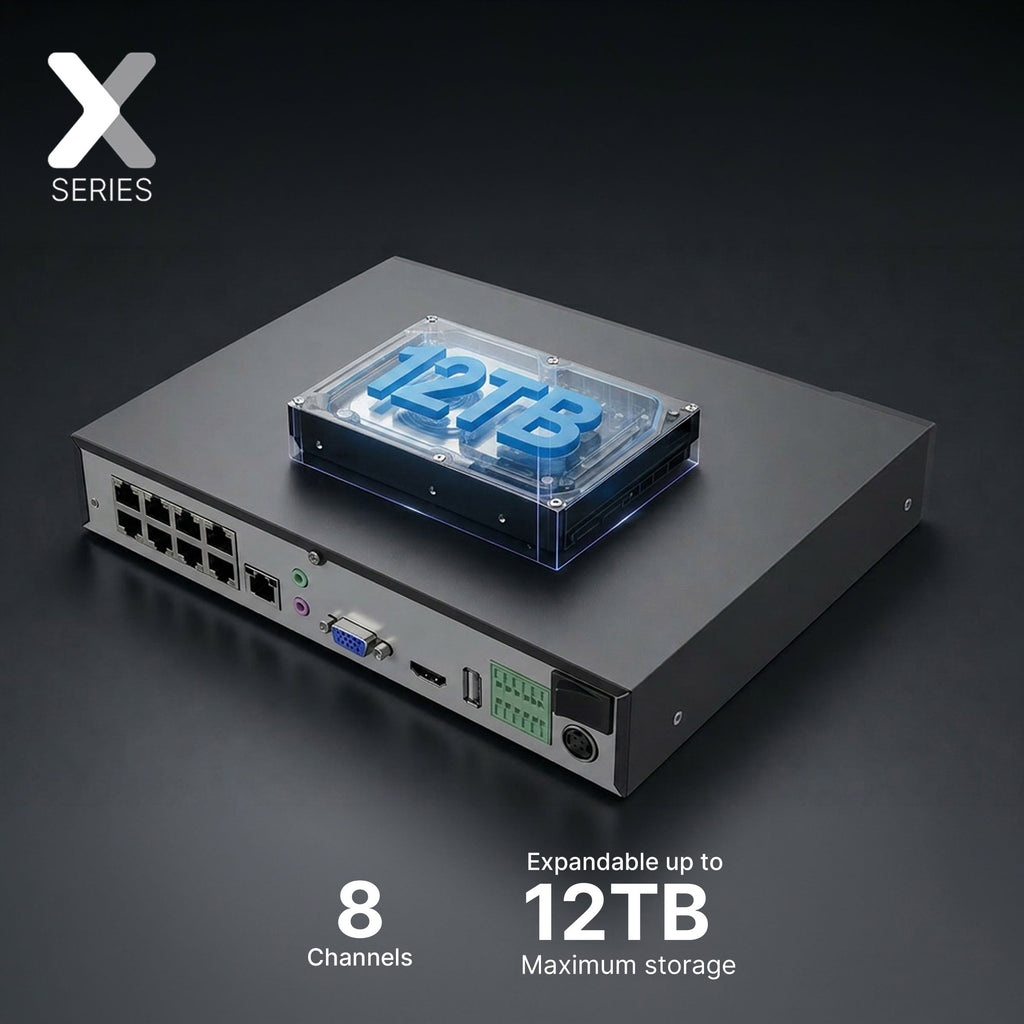

2TB included, expandable up to 12TB
Remote viewing and alerts with Lorex Connect
Specifications
Recorder: XC 4K 8-Channel NVR
| Channels | 8 |

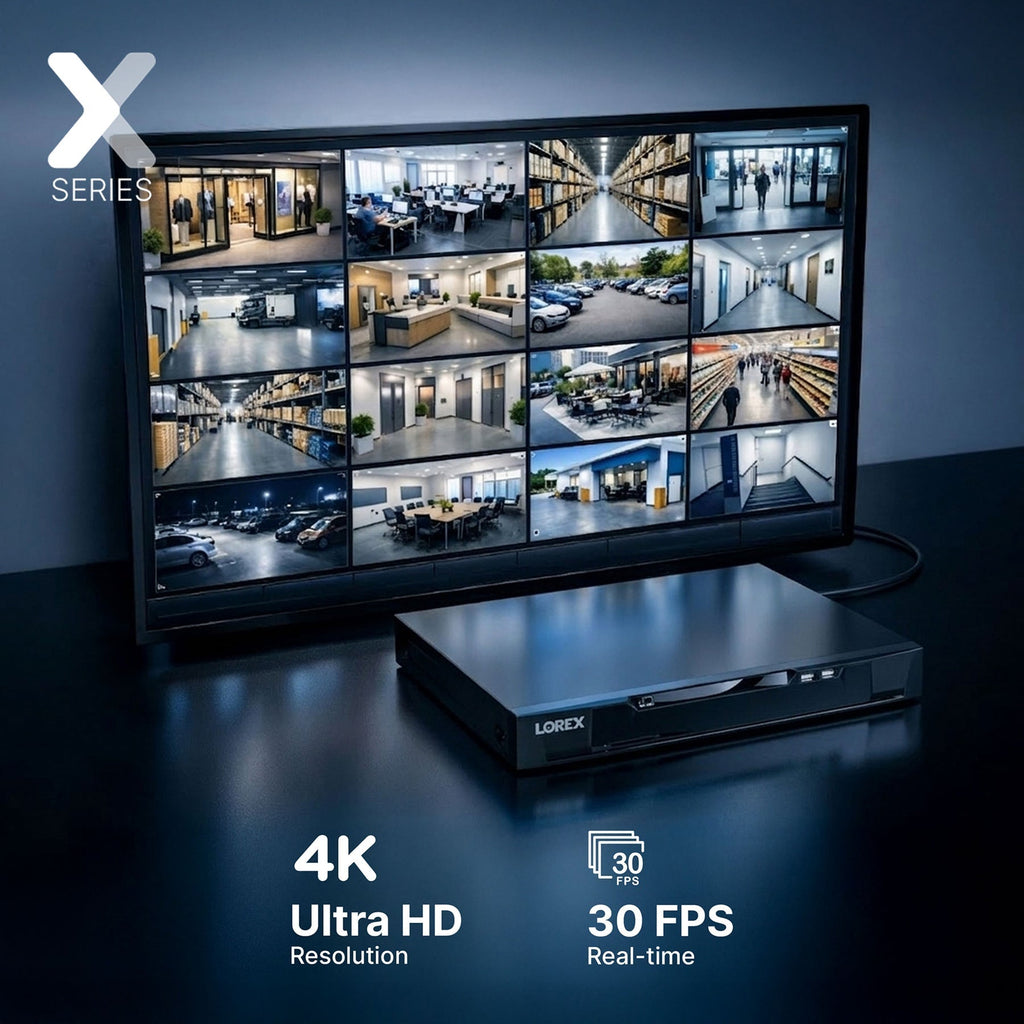

| Video Resolution | 4K (3840 × 2160) display and recording; supports cameras from 720p up to 12MP |
| Built-In PoE | 8 PoE ports, 100 W max total PoE output |
| Storage | 2TB included · 1 SATA bay · expandable up to 12TB |
| Video Output | 1 × HDMI (up to 4K) · 1 × VGA (up to 1080p) |
| AI Analytics | Person & vehicle detection, intrusion, loitering, wrong-way, parking, smoke & fire detection, line crossing, heat map, people counting, Smart Search |
| Mobile App | Lorex Connect (iOS and Android) |
| Network | 1 × RJ45 gigabit · ONVIF and RTSP |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Power Consumption | Under 15 W (excluding hard drive) |
Cameras: X3 4K PoE Bullet Camera with Motorized Varifocal
| Resolution | 4K (8MP) at 25 FPS |
| Lens | Motorized varifocal 2.7–13.5 mm, F1.6, 5× optical zoom |
| Field of View | 33° to 103° horizontal |
| Night Vision | Color Night Vision with IR, up to 131 ft (40 m) in total darkness |
| Active Deterrence | White light, siren and pre-recorded messages |
| Audio | 2-way talk |

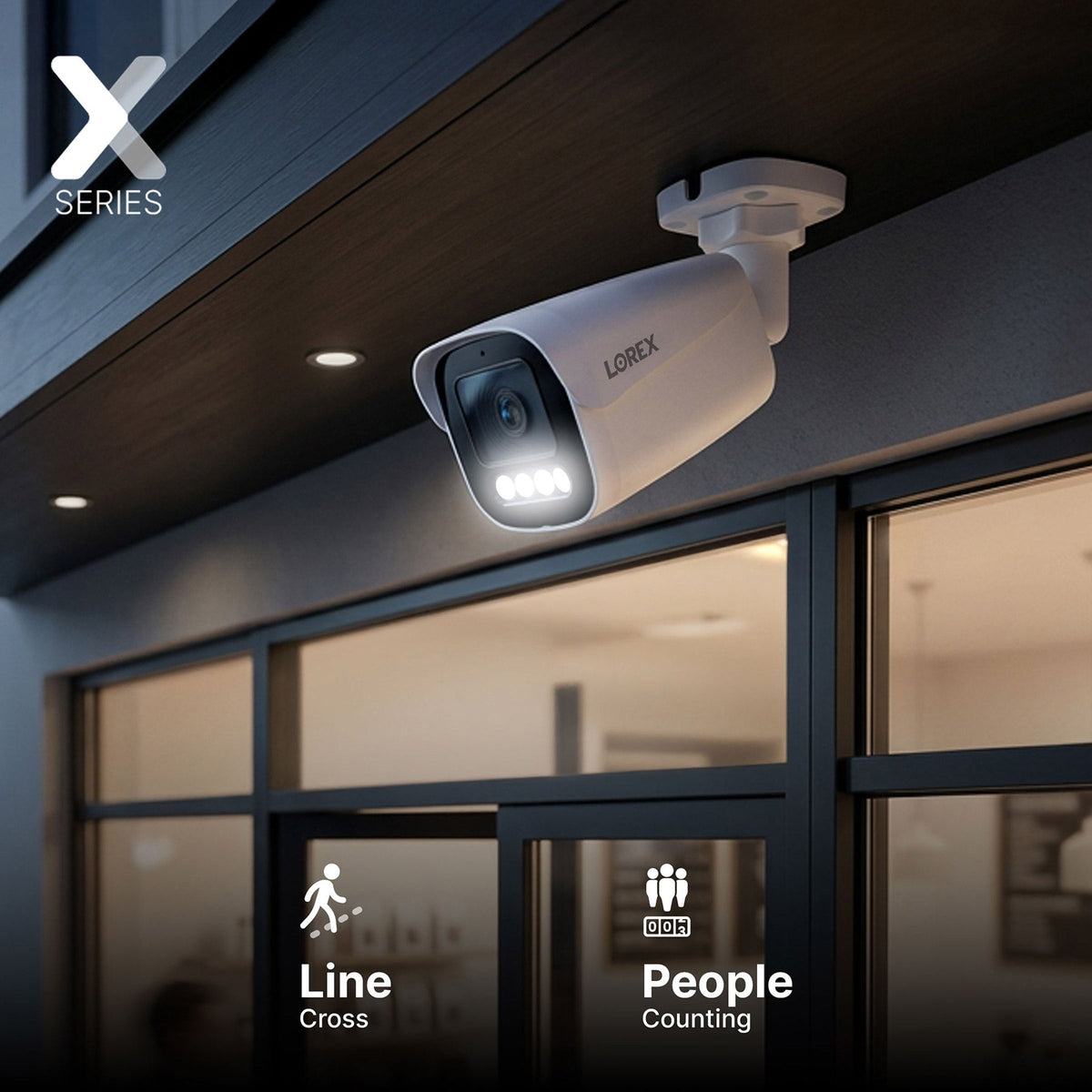

| AI Analytics | Person & vehicle detection, people counting, loitering, intrusion, line crossing, parking and wrong-way monitoring |
| Weather Rating | IP66 |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Power | PoE (802.3af), 12 W max |
Download the recorder specification sheet (PDF)
Download the camera specification sheet (PDF)
Camera manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ XC 4K 8-Channel NVR (RNE01P-82B-AB1)
- ✔ 2TB of storage
- ✔ X3 4K PoE Bullet Cameras with Motorized Varifocal (CNE01P-2BB-AB1 Black / CNE01P-2BW-AB1 White), quantity and color per your selected options
- ✔ Power adapter and cable
- ✔ HDMI cable and mouse
- ✔ 2 × Alarm I/O terminal block connectors
- ✔ 6 × HDD screws, 4 × adhesive foam feet pads
- ✔ Alarm I/O terminal block connector, Allen key, mounting hardware and a weather-resistant RJ45 cable gland for each camera
Expand Your System
The recorder in this system supports up to 8 cameras, so you can add more Lorex X Series PoE cameras whenever you need them:
- ➜ X5 4K Turret Camera
- ➜ X5 4K Bullet Camera
- ➜ X3 4K Turret Camera (Zoom)
- ➜ X3 4K Bullet Camera (Zoom)
- ➜ X3 4K Dual-Lens Camera
- ➜ 4K PTZ Camera
- ➜ 2K+ Dual-Lens PTZ Camera
Need a different size? Browse our X Series systems and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
What is included in this system?
The 8-channel recorder with 2TB of storage, the number of cameras you select, and the mounting hardware and cable glands for each camera. See What’s Included above for the full list.
Are network cables included?
No. Network (Ethernet) cable is not included. Each PoE camera needs one network cable run back to the recorder, so plan your cable lengths before ordering.
Is storage included?
Yes. It includes 2TB of storage and has one SATA bay, so you can expand storage up to 12TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
How are the cameras powered?
The recorder has 8 built-in PoE ports (100 W max total output shared across all connected cameras), so a single network cable carries both power and video to each camera. Please check each camera’s power requirements before installing.
Can I add more cameras later?
Yes. The recorder supports up to 8 cameras in total. You can add any Lorex X Series PoE camera, see Expand Your System above.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with an HDMI cable, power adapter and mouse, and each camera ships with its own mounting hardware.
Compare X Series 8-Channel Systems
| X5 Turret | X5 Bullet | X3 Turret (Zoom) | X3 Bullet (Zoom) (this system) |
X3 Dual-Lens | |
|---|---|---|---|---|---|
| Resolution | 4K | 4K | 4K | 4K | 4K |
| Lens | Fixed 2.8 mm | Fixed 2.8 mm | 5× motorized zoom | 5× motorized zoom | Dual fixed 2.4 mm |
| Field of View | 109° | 109° | 33° to 103° | 33° to 103° | 190.8° |
| Night Vision | Color Night IQ+ | Color Night IQ+ | Color Night Vision | Color Night Vision | Color Night Vision |
| Audio | 2-way talk | 2-way talk | Listen-in | 2-way talk | 2-way talk |
| Best for | Entrances, offices, hallways | Building exteriors and perimeters | Zooming in on distant areas | Zooming in on distant areas | Wide areas with fewer blind spots |
