Lorex Connect X Series 4K 32-Channel Wired NVR System with X5 Bullet Security Cameras - 8TB
Lorex Connect X Series 4K 32-Channel Wired NVR System with X5 Bullet Security Cameras - 8TB
- Resolution4K
- StyleBullet
- Channels32-Channel
- Storage8TB
Best for: building exteriors, parking areas, driveways and perimeters that need sharp 4K detail and true color after dark. A complete bundle for large sites, with a 16-port PoE+ switch included (up to 32 cameras).
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
The Lorex Connect X Series 4K system pairs a 32-channel XC NVR with 8TB of storage and X5 Bullet cameras with Color Night IQ+ for vivid low-light footage. 4K resolution delivers sharp detail, while Lorex Connect integration enables remote viewing, intelligent alerts, and centralized management. An included PoE switch simplifies connecting the full camera count. No monthly fees. Cables not included.
Key Features
Continuous 4K recording
Connect up to 32 cameras
16 built-in PoE ports plus an included 16-port PoE+ switch

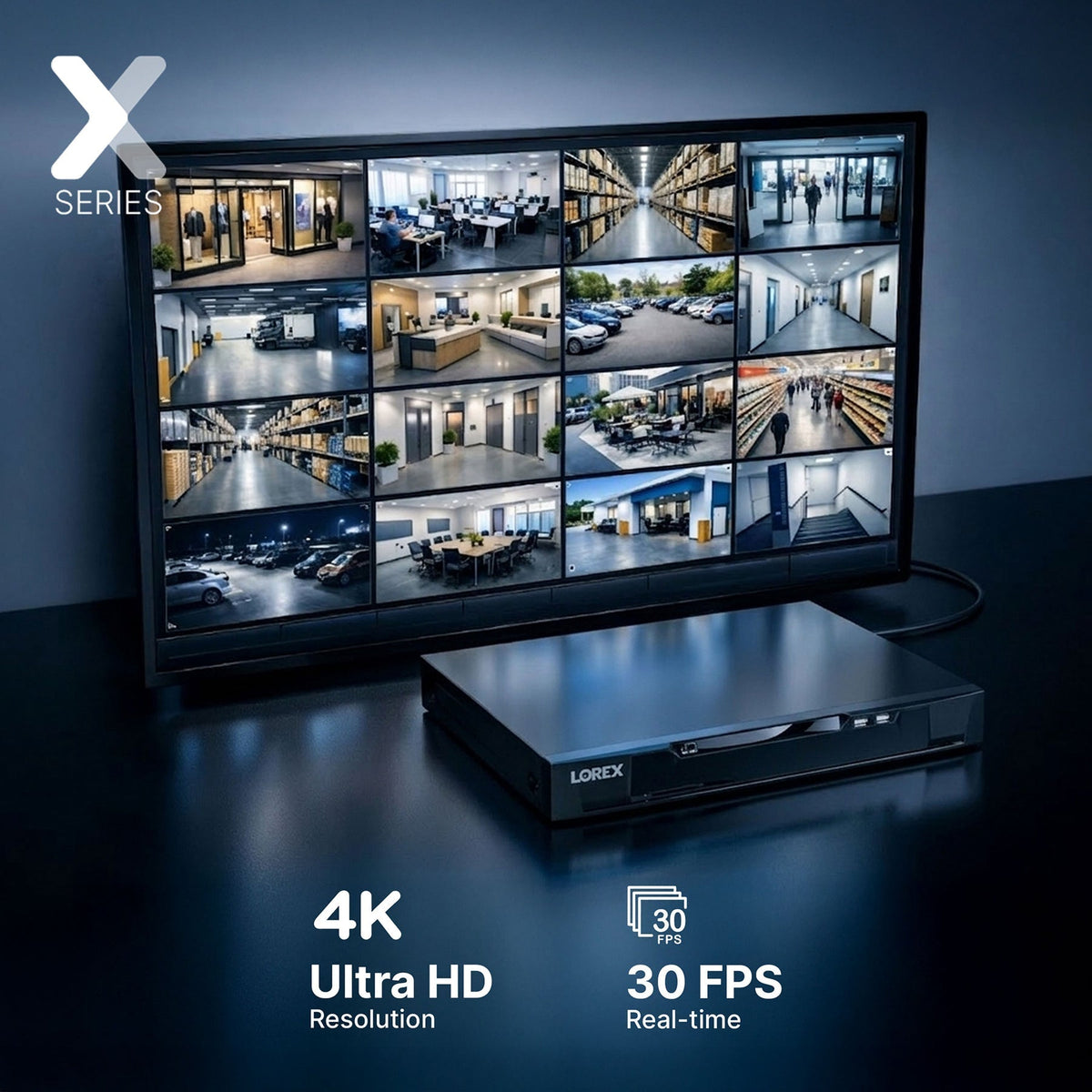

Real-time 4K at 30 FPS
Color Night IQ+ and long-range IR
Red/blue lights, siren, and warnings
AI detection and advanced analytics
8TB included, expandable up to 48TB
Remote viewing and alerts with Lorex Connect
Specifications
Recorder: XC 4K 32-Channel NVR
| Channels | 32 (16 PoE + 16 IP video inputs) |
| Video Resolution | 4K (3840 × 2160) display and recording; supports cameras from 720p up to 12MP |

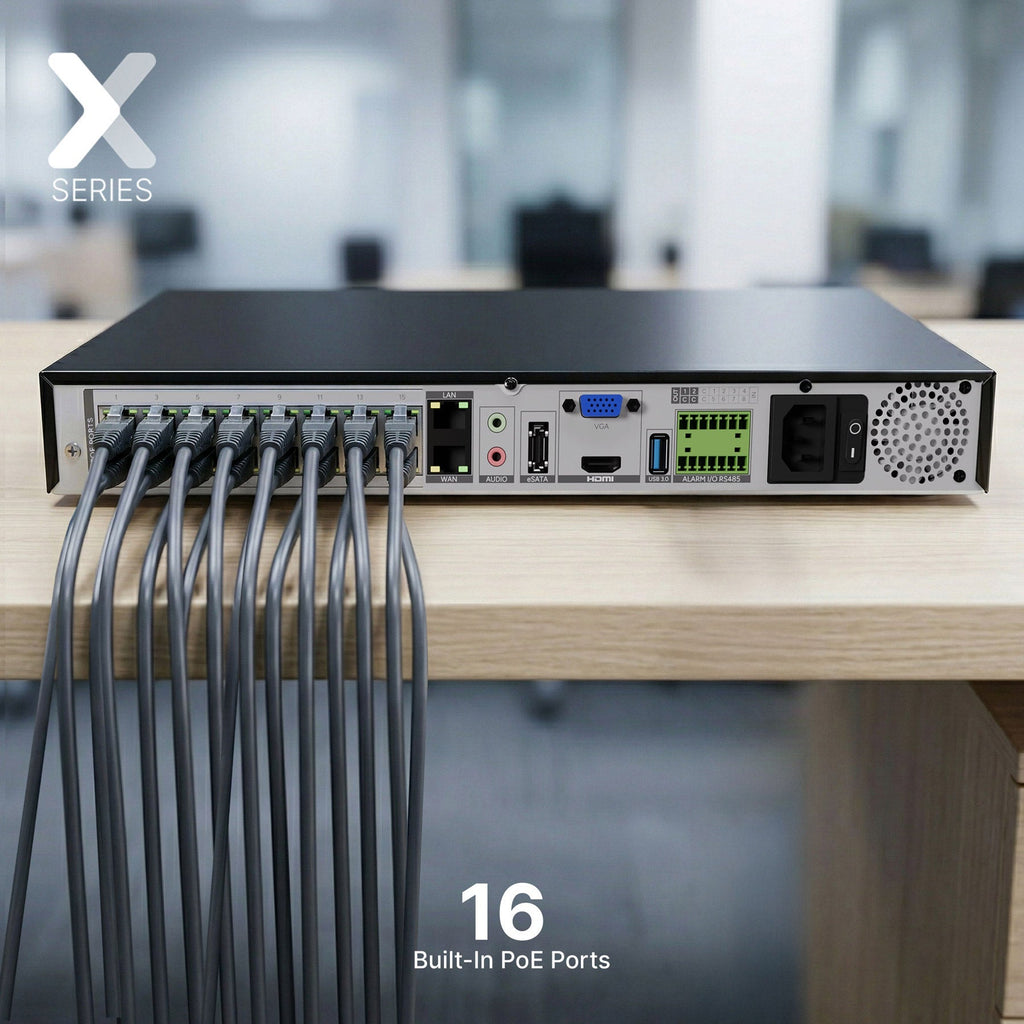

| Built-In PoE | 16 PoE ports on the recorder, 240 W max total PoE output |
| PoE Switch | Lorex AEX16 16-port PoE+ switch included |

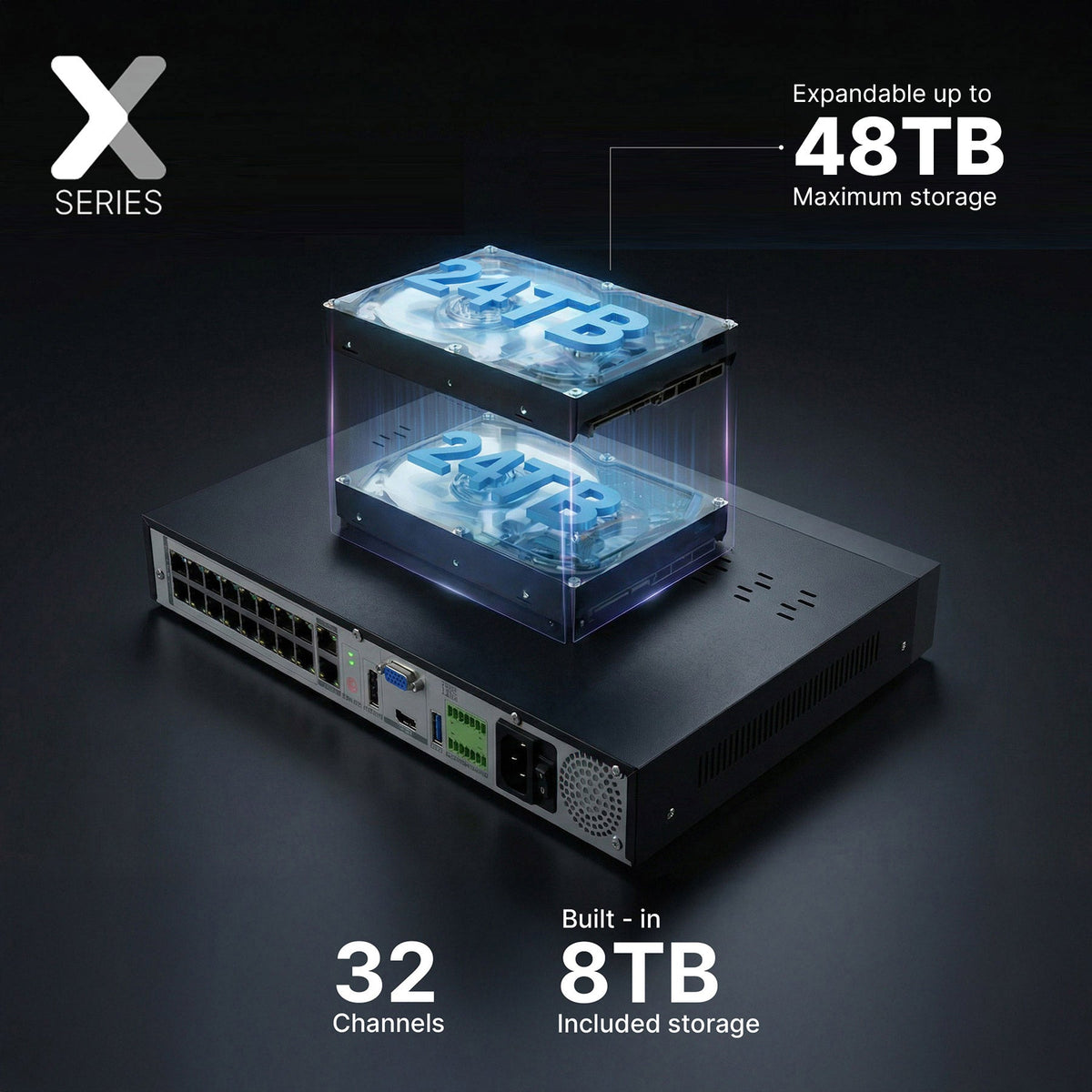

| Storage | 8TB included · 2 SATA bays · expandable up to 48TB (24TB per disk) |
| Video Output | 1 × HDMI (up to 4K) · 1 × VGA (up to 1080p) |
| AI Analytics | Person & vehicle detection, intrusion, loitering, wrong-way, parking, smoke & fire detection, line crossing, heat map, people counting, Smart Search |
| Mobile App | Lorex Connect (iOS and Android) |
| Network | 2 × RJ45 gigabit · ONVIF and RTSP |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) (recorder) |
| Power Consumption | Under 15 W (recorder, excluding hard drives) |
Cameras: X5 4K PoE Bullet Camera

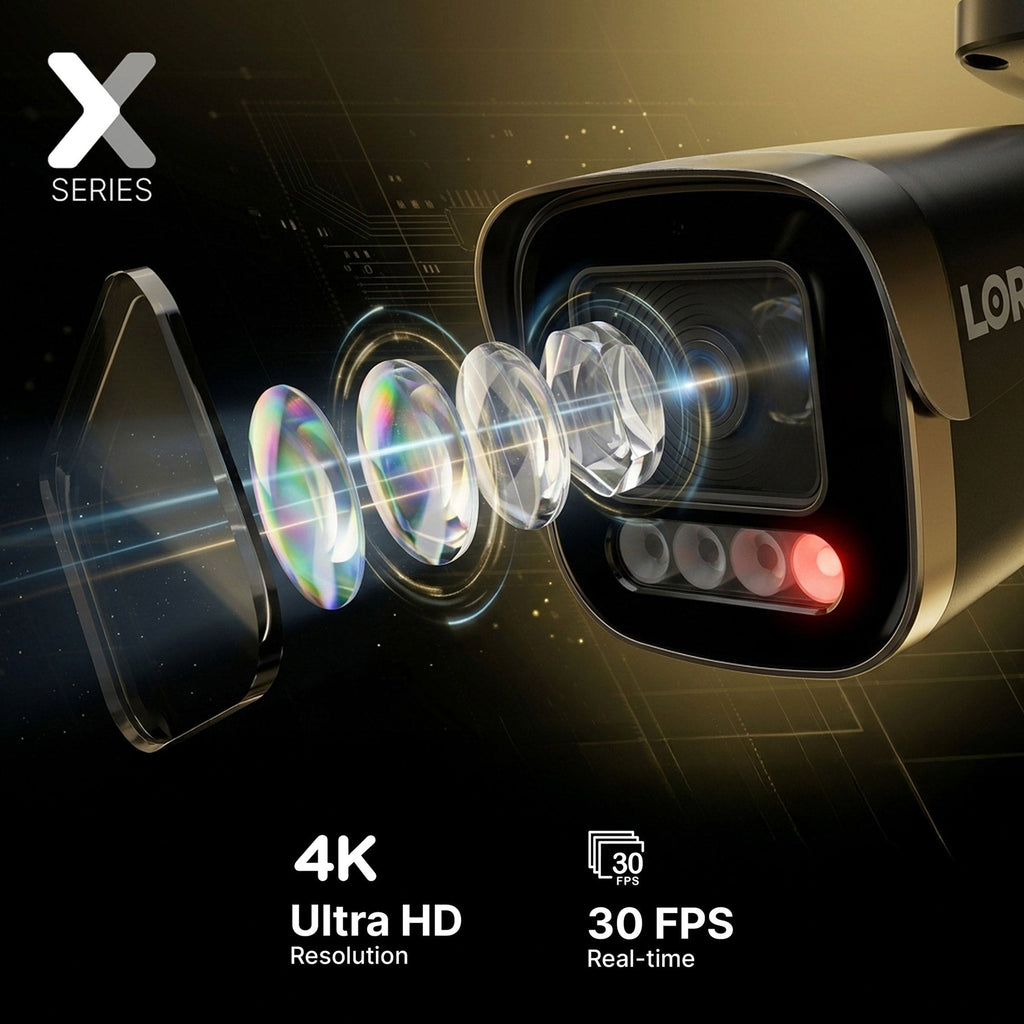

| Resolution | 4K (8MP) at 30 FPS |
| Lens | Fixed 2.8 mm, F1.0 aperture |
| Field of View | 109° horizontal |

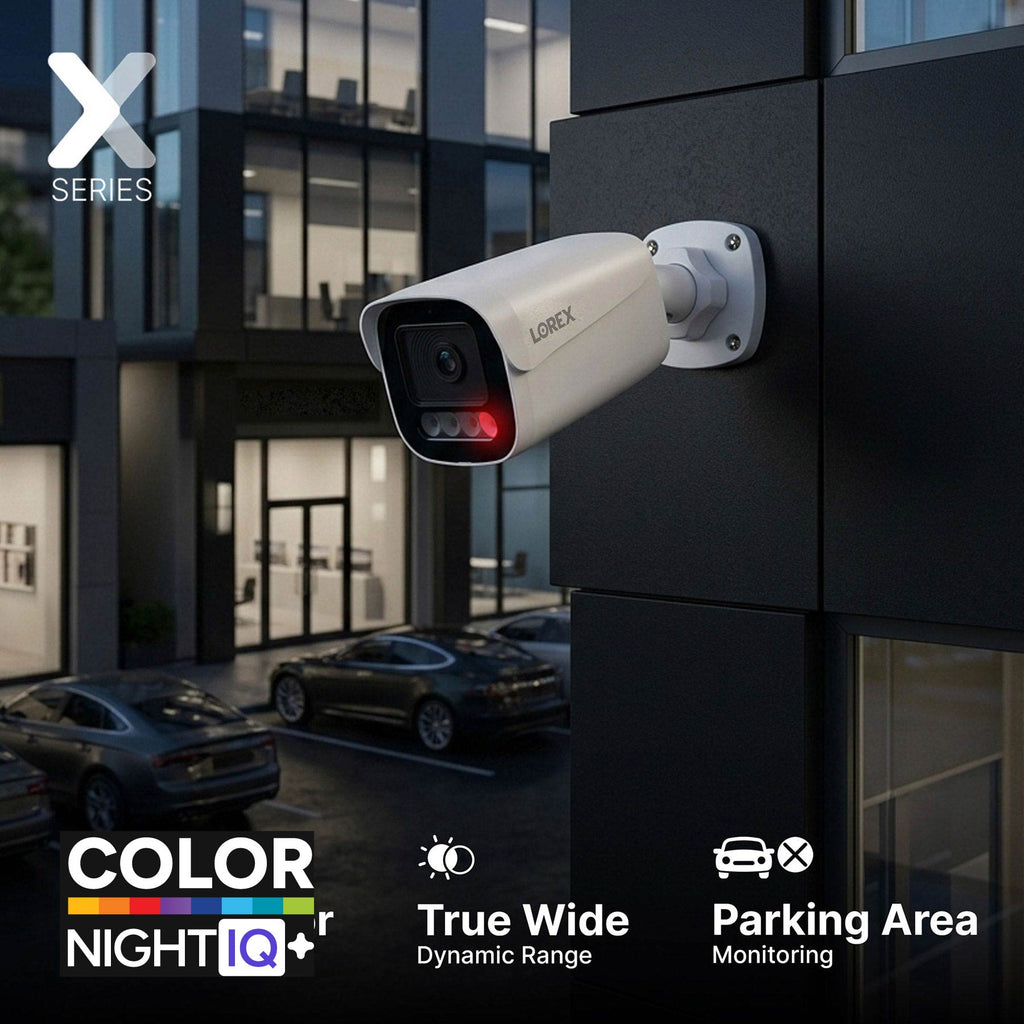

| Night Vision | Color Night IQ+ with IR, up to 98 ft (30 m) |
| Active Deterrence | Siren, white and red & blue lights |
| Audio | 2-way talk |

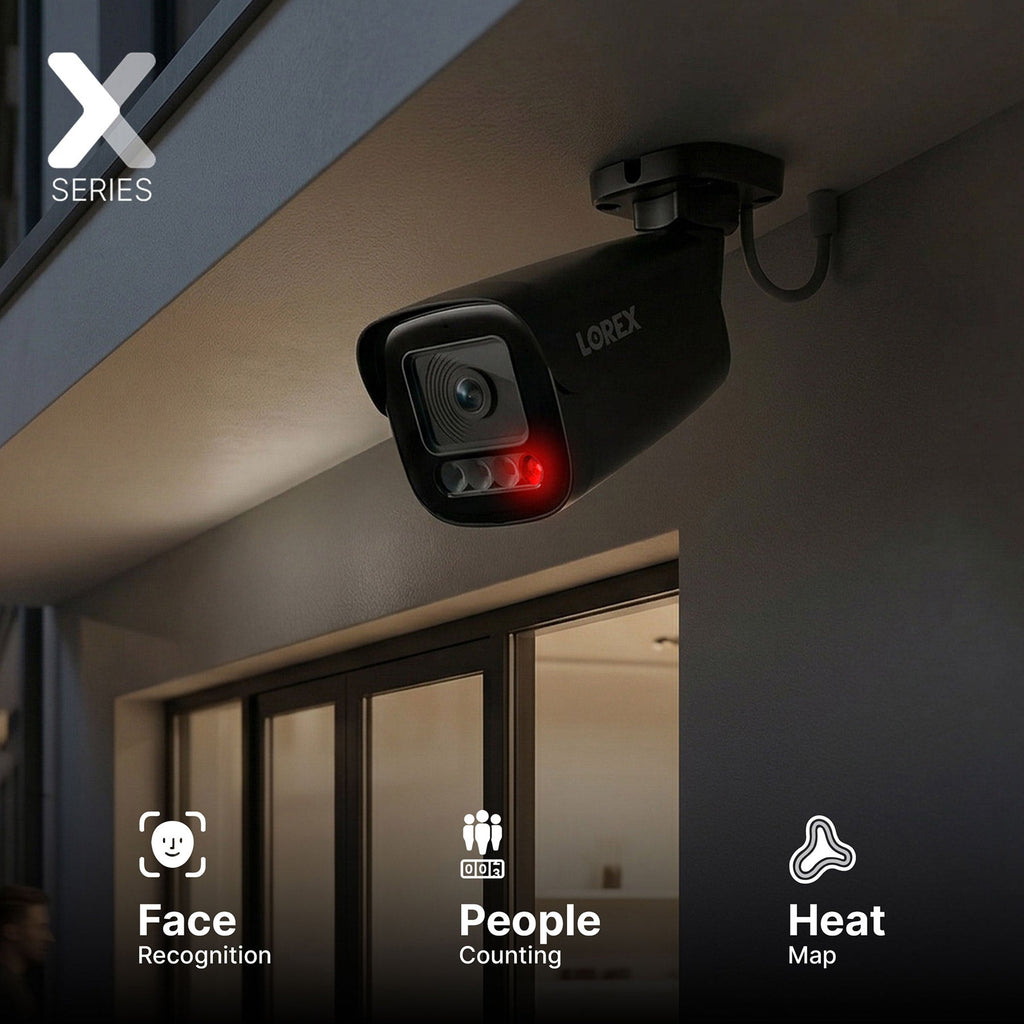

| AI Analytics | Person & vehicle detection, face recognition, people counting, heat map, loitering, intrusion, line crossing, parking and wrong-way monitoring |
| Weather Rating | IP66 |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Power | PoE (802.3af), 8.9 W max |
Download the recorder specification sheet (PDF)
Download the camera specification sheet (PDF)
Download the PoE switch specification sheet (PDF)
Recorder manuals, downloads and support articles (Lorex)
PoE switch manuals and downloads (Lorex)
Specifications as published by Lorex and subject to change.
What's Included

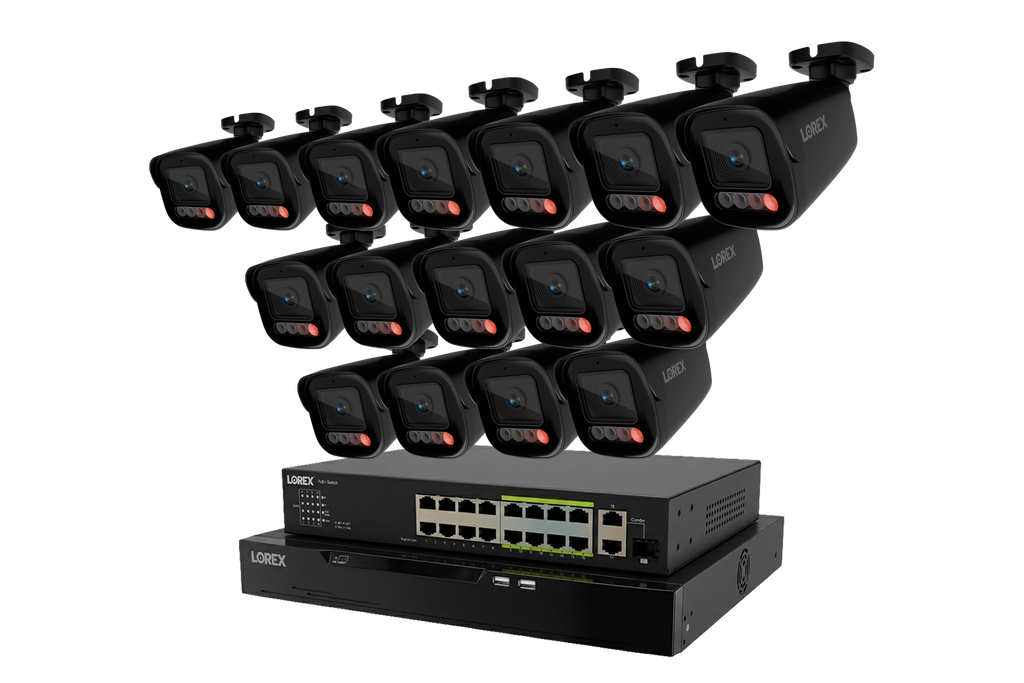

- ✔ XC 4K 32-Channel NVR (RNU01P-C8B-AB1)
- ✔ 8TB of storage
- ✔ X5 4K PoE Bullet Cameras (CNE01P-1BB-AB1 Black / CNE01P-1BW-AB1 White), quantity and color per your selected options
- ✔ 2 × mounting brackets, 6 × mounting bracket screws
- ✔ HDMI cable, power cable, mouse
- ✔ 2 × Alarm I/O terminal block connectors
- ✔ 8 × HDD screws, 4 × adhesive foam feet pads
- ✔ AEX16 16-Port PoE+ Switch with power cord
- ✔ Switch accessories: 2 × rack mount brackets, 8 × screws, 4 × rubber feet, SFP dust cap
- ✔ Mounting hardware and a weather-resistant RJ45 cable gland for each camera
Expand Your System
The recorder in this system supports up to 32 cameras, so you can add more Lorex X Series PoE cameras whenever you need them:
- ➜ X5 4K Turret Camera
- ➜ X5 4K Bullet Camera
- ➜ X3 4K Turret Camera (Zoom)
- ➜ X3 4K Bullet Camera (Zoom)
- ➜ X3 4K Dual-Lens Camera
- ➜ 4K PTZ Camera
- ➜ 2K+ Dual-Lens PTZ Camera
Need a different size? Browse our X Series systems and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
What is included in this system?
The 32-channel recorder with 8TB of storage, the number of cameras you select, plus the AEX16 16-port PoE+ switch, and the mounting hardware and cable glands for each camera. See What’s Included above for the full list.
Are network cables included?
No. Network (Ethernet) cable is not included. Each PoE camera needs one network cable run back to the recorder or PoE switch, so plan your cable lengths before ordering.
Is storage included?
Yes. It includes 8TB of storage and has two SATA bays, so you can expand storage up to 48TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
How are the cameras powered?
The recorder has 16 built-in PoE ports (240 W max total output), and the included AEX16 16-port PoE+ switch powers the other 16 cameras, so a single network cable carries both power and video to each camera. Please check each camera’s power requirements before installing.
Can I add more cameras later?
Yes. The recorder supports up to 32 cameras in total. You can add any Lorex X Series PoE camera, see Expand Your System above.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with an HDMI cable, power cable, mouse and mounting brackets, the PoE switch ships with rack mount brackets, and each camera ships with its own mounting hardware.
Compare X Series 32-Channel Systems
| X5 Turret | X5 Bullet (this system) |
X3 Turret (Zoom) | X3 Bullet (Zoom) | X3 Dual-Lens | |
|---|---|---|---|---|---|
| Resolution | 4K | 4K | 4K | 4K | 4K |
| Lens | Fixed 2.8 mm | Fixed 2.8 mm | 5× motorized zoom | 5× motorized zoom | Dual fixed 2.4 mm |
| Field of View | 109° | 109° | 33° to 103° | 33° to 103° | 190.8° |
| Night Vision | Color Night IQ+ | Color Night IQ+ | Color Night Vision | Color Night Vision | Color Night Vision |
| Audio | 2-way talk | 2-way talk | Listen-in | 2-way talk | 2-way talk |
| Best for | Entrances, offices, hallways | Building exteriors and perimeters | Zooming in on distant areas | Zooming in on distant areas | Wide areas with fewer blind spots |
