Lorex 4K 32-Ch NVR System, X3 Turret

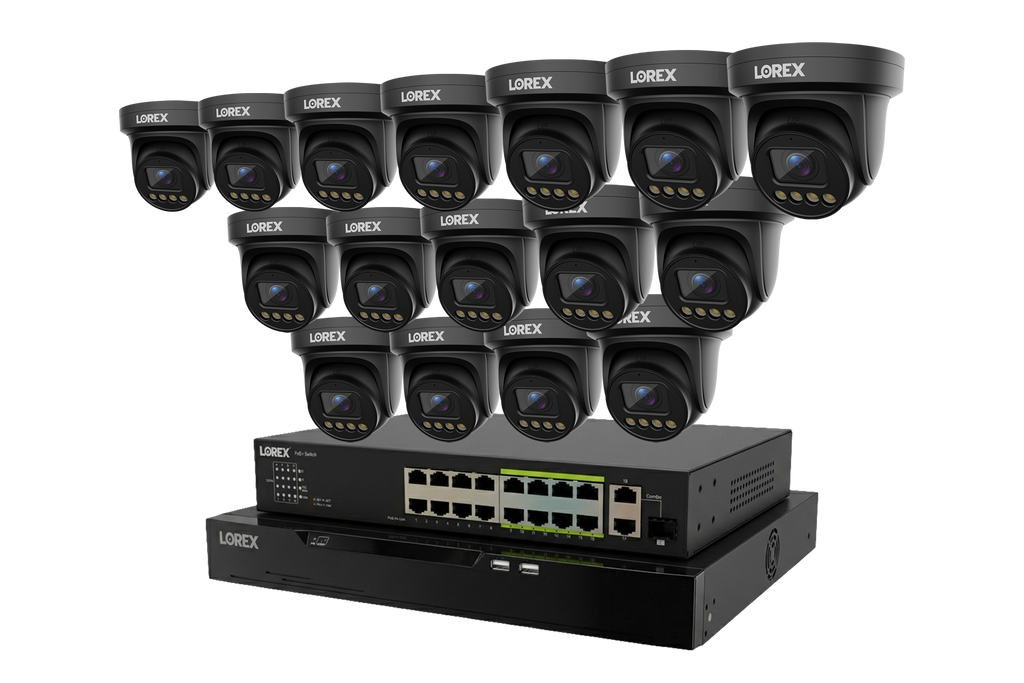

Lorex Connect X Series 4K 32-channel wired NVR system with X3 turret security cameras and 8TB storage

Lorex Connect X Series 4K 32-Channel Wired NVR System with X3 Turret Security Cameras - 8TB

Black / 16 / No Extended Warranty

$5,551.99 $6,939.99

Complete 4K surveillance solution featuring a 32-channel NVR with 8TB storage and X3 Turret cameras equipped with motorized varifocal lenses. Delivers crystal-clear monitoring across multiple zones with wired reliability and advanced connectivity through Lorex Connect. Ideal for businesses requiring professional-grade security with seamless integration and remote access. An included PoE switch simplifies connecting the full camera count. No monthly fees. Cables not included.

✔ Authorized Lorex Partner✔ No Monthly Fees✔ No Tax Added at Checkout✔ Up to 3-Year Warranty Available

Key Features

Protect Around the Clock

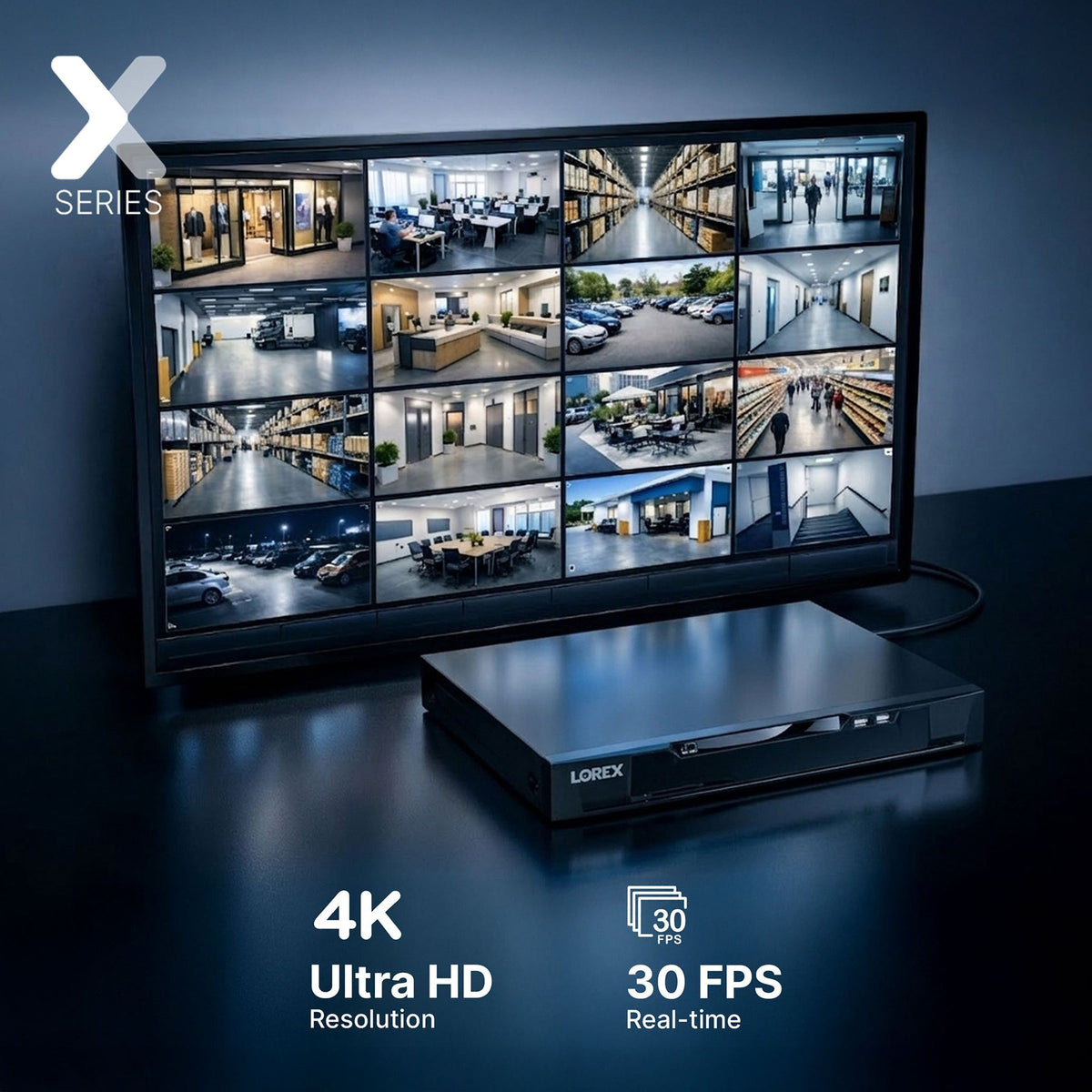

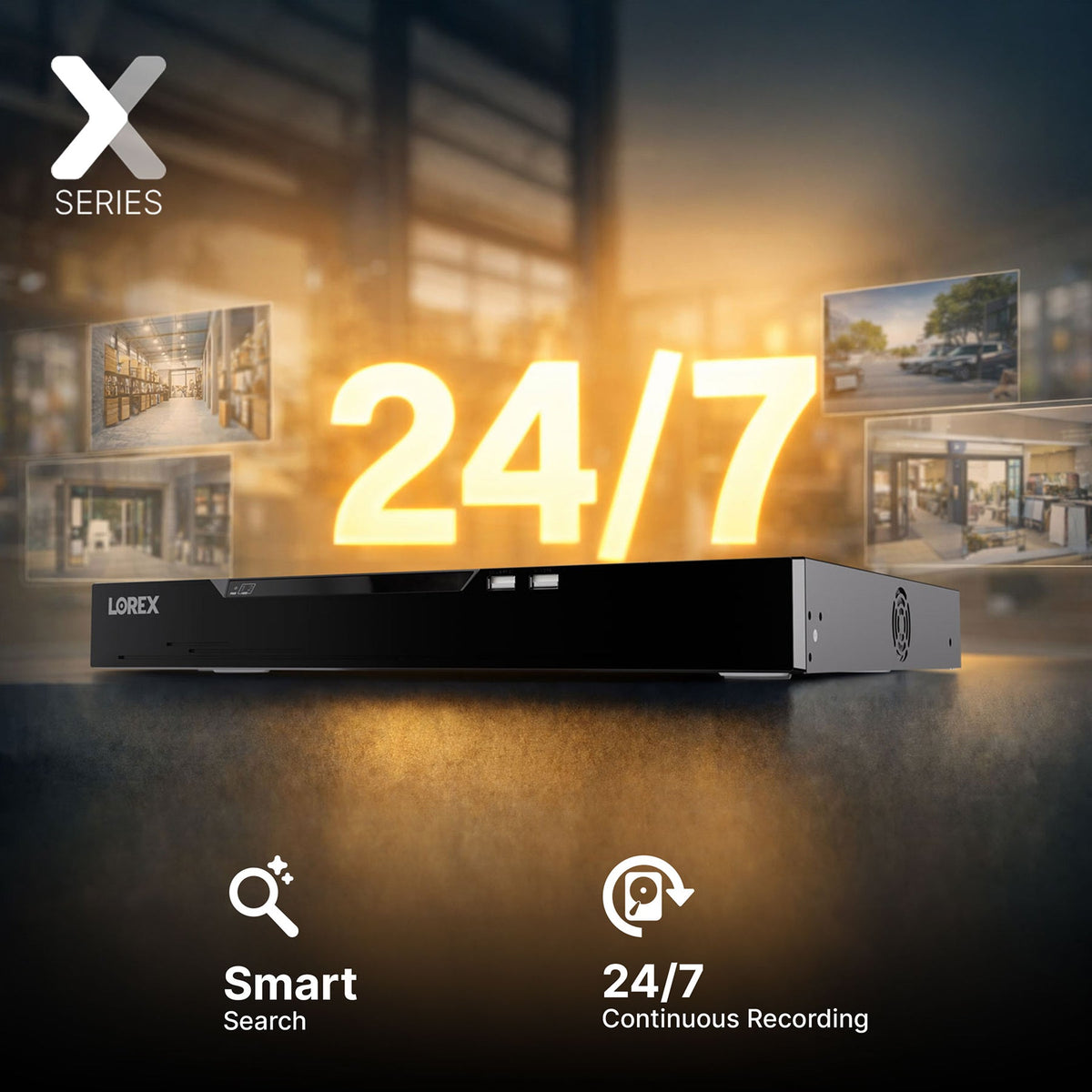

Continuous 4K recording

Monitor Key Areas
Connect up to 32 cameras

Power Cameras Directly

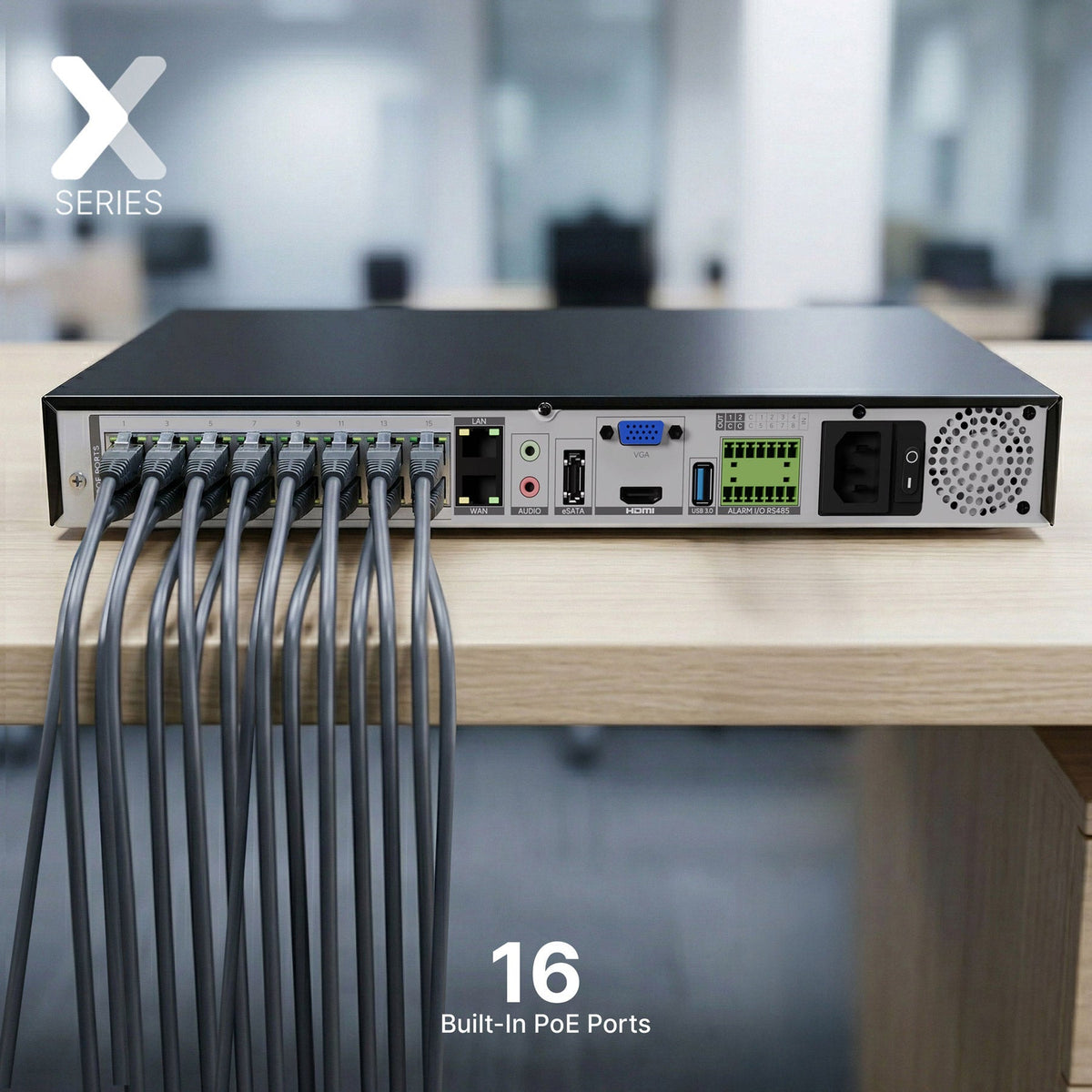

16 built-in PoE ports plus an included 16-port PoE+ switch

See Every Detail

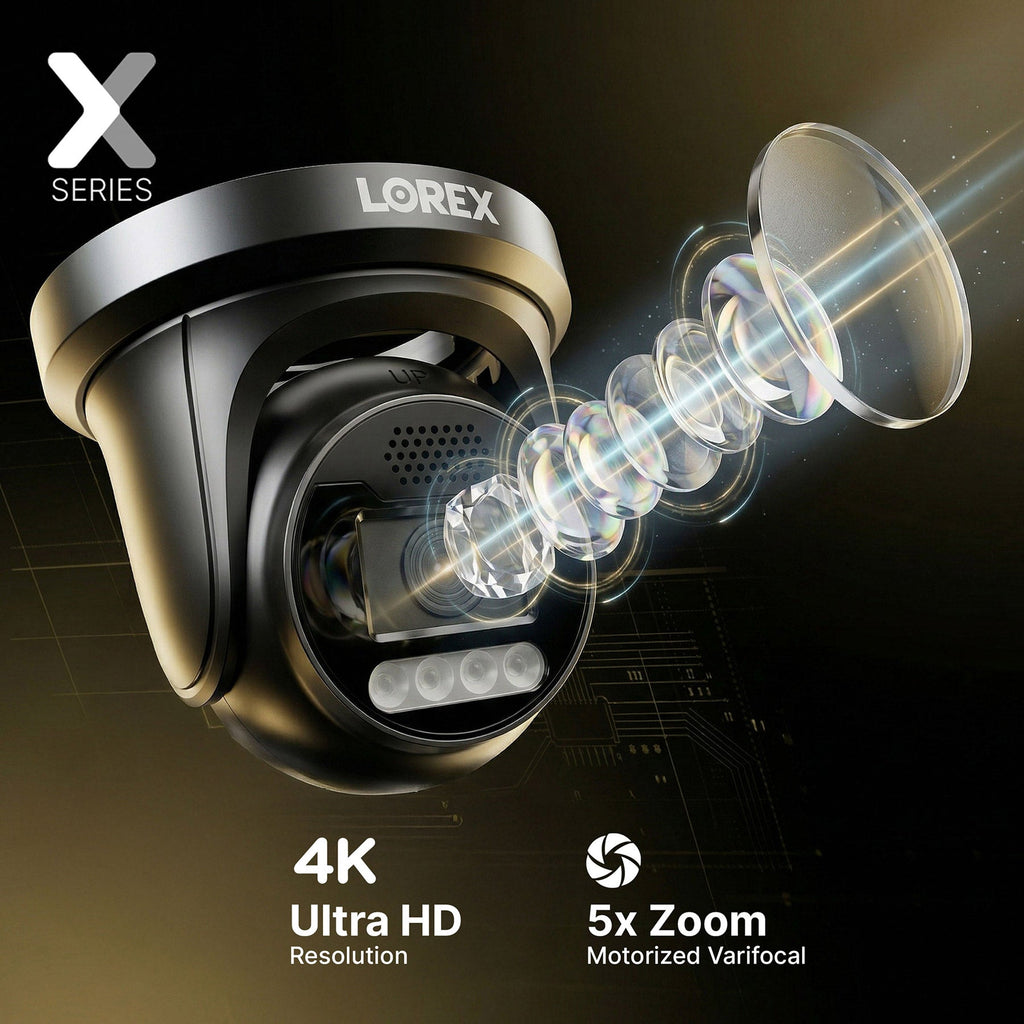

4K clarity with 5× optical zoom

See More at Night

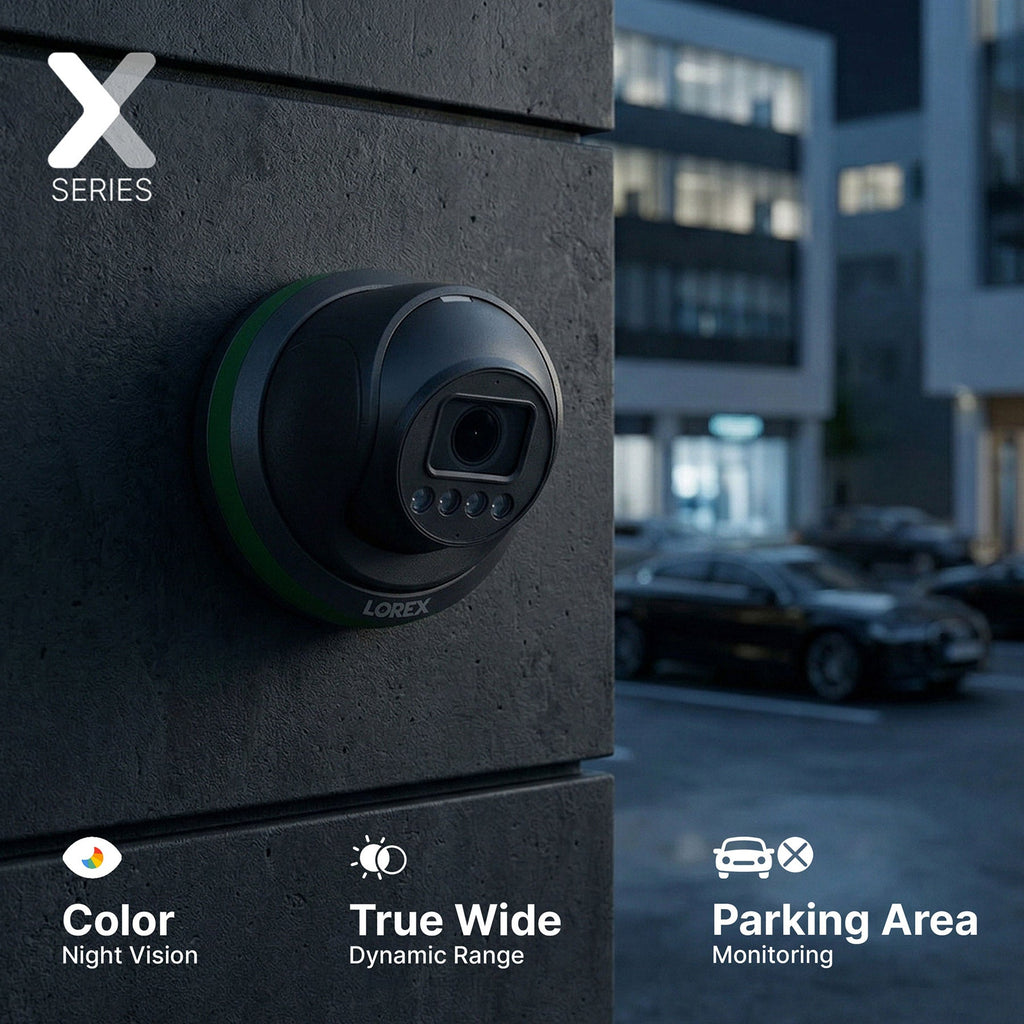

Color Night Vision and long-range IR

Deter Threats Proactively
Bright active deterrence light

Turn Video Into Insight

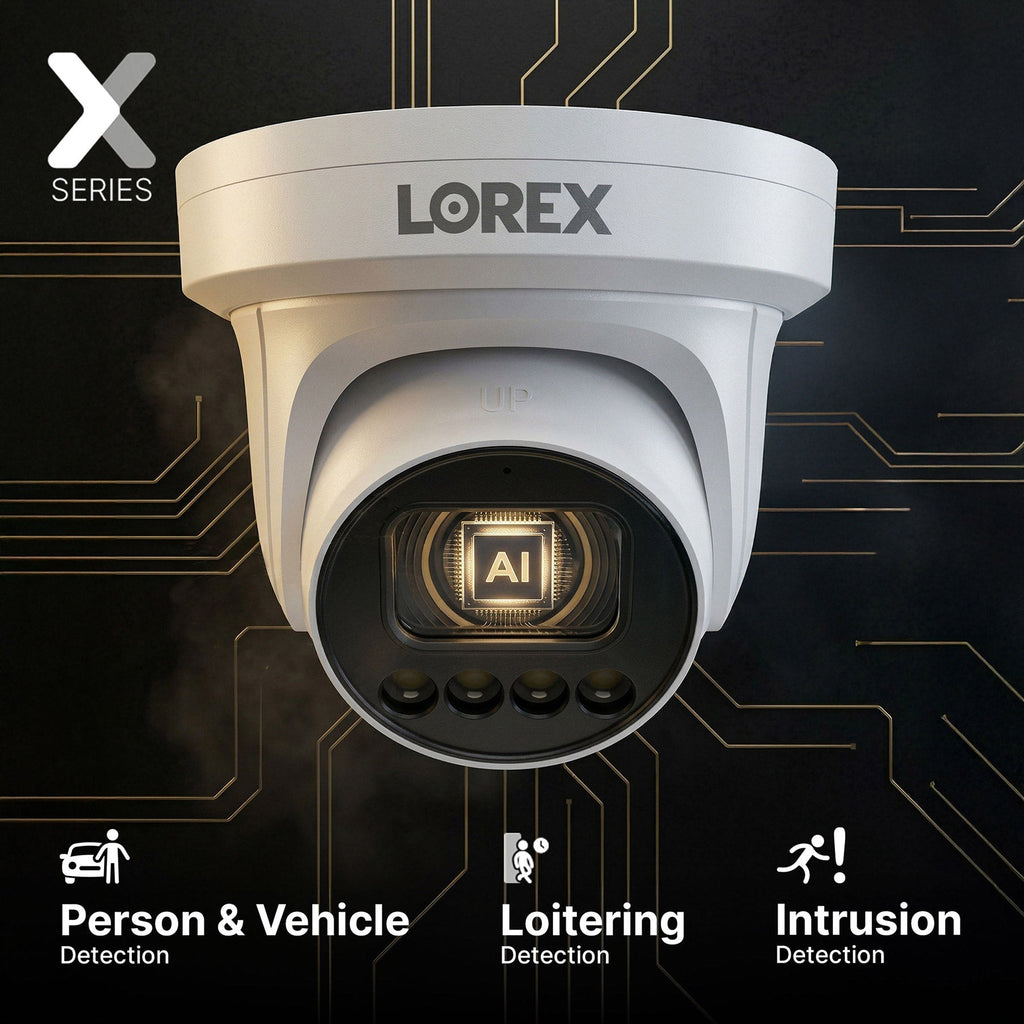

AI detection and business analytics

Keep More Video

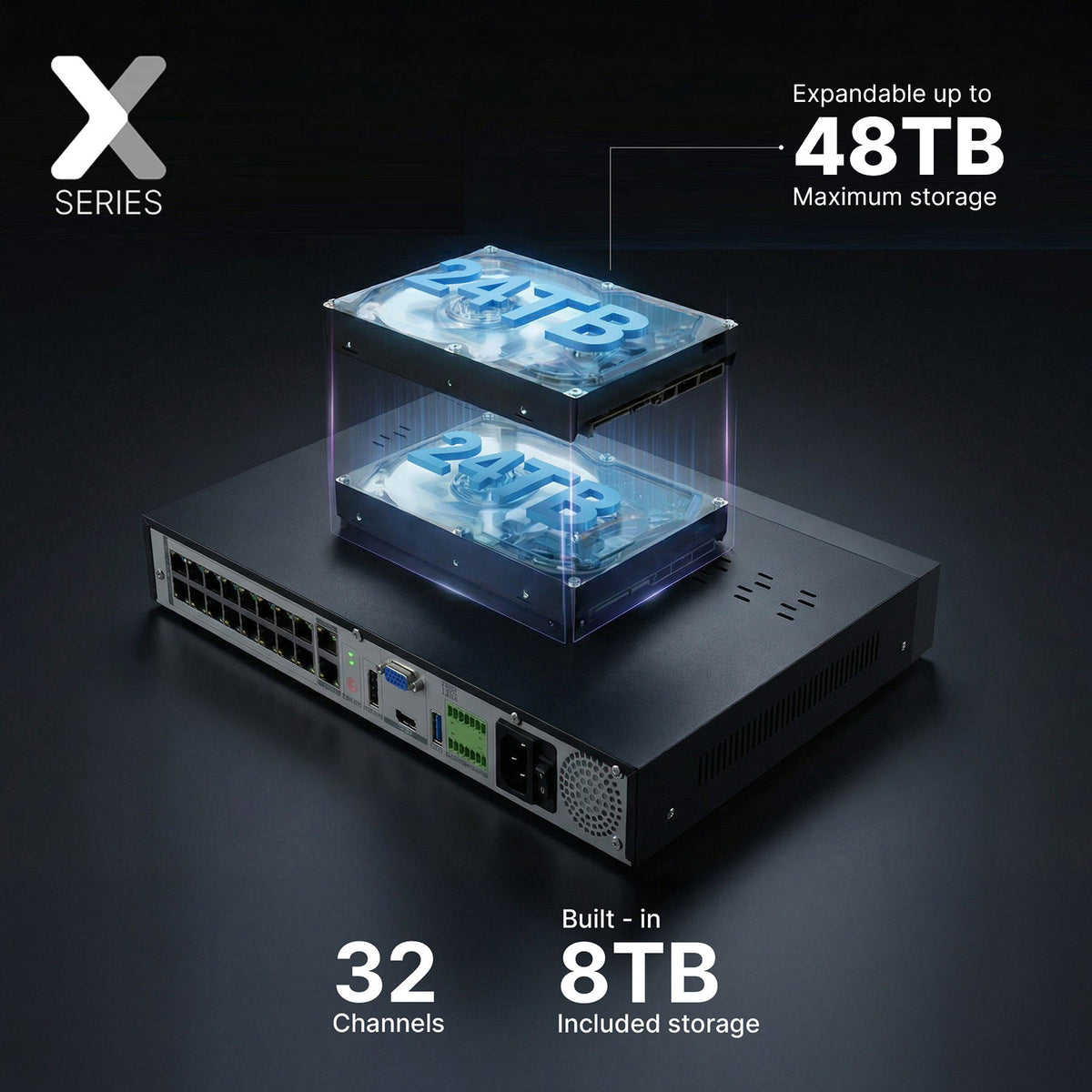

8TB included, expandable up to 48TB

Stay Connected
Remote viewing and alerts with Lorex Connect

Specifications

Recorder: XC 4K 32-Channel NVR

Channels	32 (16 PoE + 16 IP video inputs)
Video Resolution	4K (3840 × 2160) display and recording; supports cameras from 720p up to 12MP
Built-In PoE	16 PoE ports on the recorder, 240 W max total PoE output
PoE Switch	Lorex AEX16 16-port PoE+ switch included
Storage	8TB included · 2 SATA bays · expandable up to 48TB (24TB per disk)
Video Output	1 × HDMI (up to 4K) · 1 × VGA (up to 1080p)
AI Analytics	Person & vehicle detection, intrusion, loitering, wrong-way, parking, smoke & fire detection, line crossing, heat map, people counting, Smart Search
Mobile App	Lorex Connect (iOS and Android)
Network	2 × RJ45 gigabit · ONVIF and RTSP
Operating Temperature	14°F to 122°F (-10°C to 50°C) (recorder)
Power Consumption	Under 15 W (recorder, excluding hard drives)

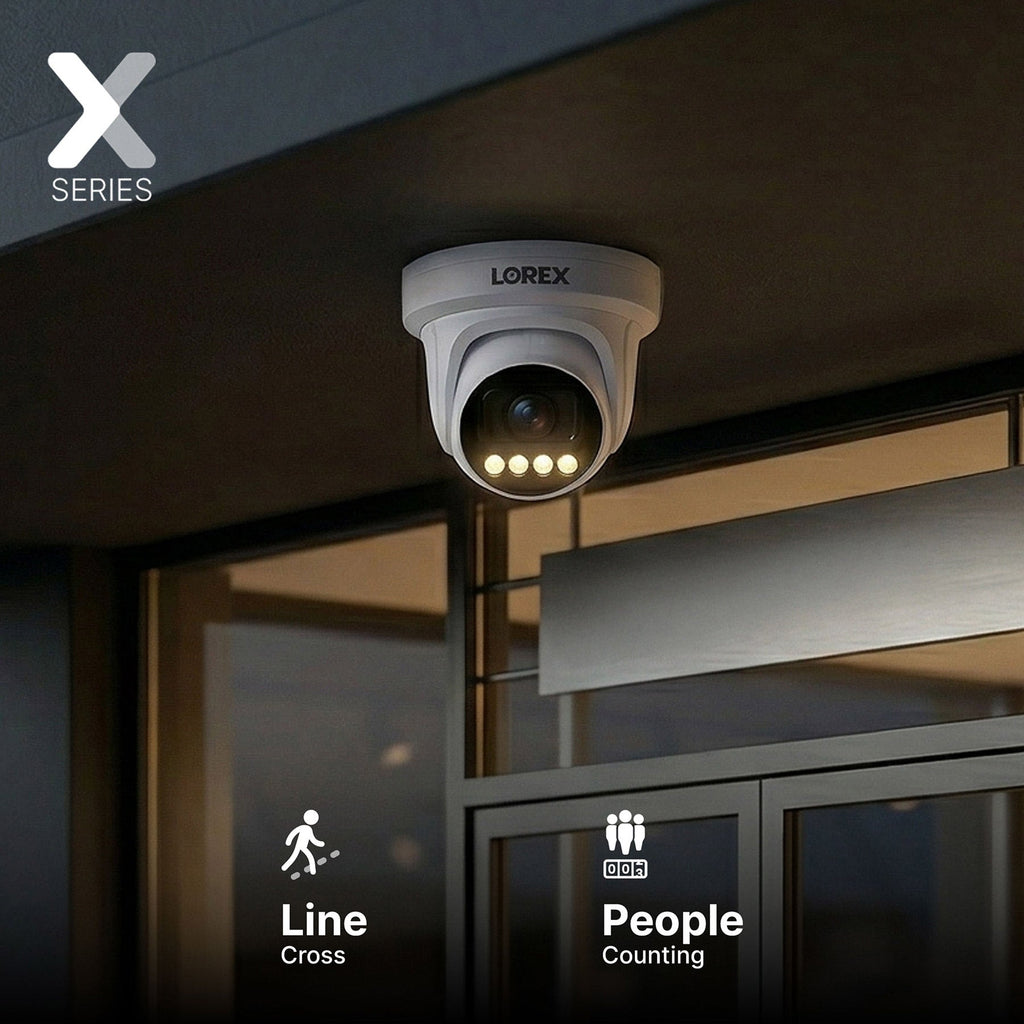

Cameras: X3 4K PoE Turret Camera with Motorized Varifocal

Resolution	4K (8MP) at 25 FPS
Lens	Motorized varifocal 2.7–13.5 mm, F1.6, 5× optical zoom
Field of View	33° to 103° horizontal
Night Vision	Color Night Vision with IR, up to 131 ft (40 m) in total darkness
Active Deterrence	White light
Audio	Listen-in (built-in microphone)
AI Analytics	Person & vehicle detection, people counting, loitering, intrusion, line crossing, parking and wrong-way monitoring
Weather Rating	IP66
Operating Temperature	-22°F to 140°F (-30°C to 60°C)
Power	PoE (802.3af), 12 W max

Download the recorder specification sheet (PDF)

Download the camera specification sheet (PDF)

Download the PoE switch specification sheet (PDF)

Recorder manuals, downloads and support articles (Lorex)

Camera manuals, downloads and support articles (Lorex)

PoE switch manuals and downloads (Lorex)

Specifications as published by Lorex and subject to change.

What's Included

✔ XC 4K 32-Channel NVR (RNU01P-C8B-AB1)
✔ 8TB of storage
✔ X3 4K PoE Turret Cameras with Motorized Varifocal (CNE01P-2TB-AB1 Black / CNE01P-2TW-AB1 White), quantity and color per your selected options
✔ 2 × mounting brackets, 6 × mounting bracket screws
✔ HDMI cable, power cable, mouse
✔ 2 × Alarm I/O terminal block connectors
✔ 8 × HDD screws, 4 × adhesive foam feet pads
✔ AEX16 16-Port PoE+ Switch with power cord
✔ Switch accessories: 2 × rack mount brackets, 8 × screws, 4 × rubber feet, SFP dust cap
✔ Alarm I/O terminal block connector, mounting hardware and a weather-resistant RJ45 cable gland for each camera

Expand Your System

The recorder in this system supports up to 32 cameras, so you can add more Lorex X Series PoE cameras whenever you need them:

Need a different size? Browse our X Series systems and cameras.

Warranty & Extended Coverage

Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.

Option	Total Coverage
No Extended Warranty	1 year (included)
1-Year Extended Warranty	2 years total
2-Year Extended Warranty	3 years total — longest coverage

Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.

To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.

Read the full Warranty & Claims terms.

Shipping, Returns & Contact

No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
Returns: see our Return Policy
Contact: support@thegalaxystore.ca · Contact page

Frequently Asked Questions

What is included in this system?

The 32-channel recorder with 8TB of storage, the number of cameras you select, plus the AEX16 16-port PoE+ switch, and the mounting hardware and cable glands for each camera. See What’s Included above for the full list.

Are network cables included?

No. Network (Ethernet) cable is not included. Each PoE camera needs one network cable run back to the recorder or PoE switch, so plan your cable lengths before ordering.

Is storage included?

Yes. It includes 8TB of storage and has two SATA bays, so you can expand storage up to 48TB.

Are there any monthly fees?

No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.

How are the cameras powered?

The recorder has 16 built-in PoE ports (240 W max total output), and the included AEX16 16-port PoE+ switch powers the other 16 cameras, so a single network cable carries both power and video to each camera. Please check each camera’s power requirements before installing.

Can I add more cameras later?

Yes. The recorder supports up to 32 cameras in total. You can add any Lorex X Series PoE camera, see Expand Your System above.

How does the Extended Warranty work?

Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.

Is installation included?

No. Installation is not included and we do not offer installation services. The recorder ships with an HDMI cable, power cable, mouse and mounting brackets, the PoE switch ships with rack mount brackets, and each camera ships with its own mounting hardware.

Compare X Series 32-Channel Systems

	X5 Turret	X5 Bullet	X3 Turret (Zoom) (this system)	X3 Bullet (Zoom)	X3 Dual-Lens
Resolution	4K	4K	4K	4K	4K
Lens	Fixed 2.8 mm	Fixed 2.8 mm	5× motorized zoom	5× motorized zoom	Dual fixed 2.4 mm
Field of View	109°	109°	33° to 103°	33° to 103°	190.8°
Night Vision	Color Night IQ+	Color Night IQ+	Color Night Vision	Color Night Vision	Color Night Vision
Audio	2-way talk	2-way talk	Listen-in	2-way talk	2-way talk
Best for	Entrances, offices, hallways	Building exteriors and perimeters	Zooming in on distant areas	Zooming in on distant areas	Wide areas with fewer blind spots
