Lorex Connect X Series 4K 16-Channel Wired NVR System with X3 Dual-Lens Turret Camera - 4TB
Lorex Connect X Series 4K 16-Channel Wired NVR System with X3 Dual-Lens Turret Camera - 4TB
- Resolution4K
- StyleTurret
- Channels16-Channel
- Storage4TB
Best for: lobbies, retail floors, warehouses, parking areas and open spaces where one camera should cover a very wide view with fewer blind spots. A complete bundle for growing businesses (up to 16 cameras).
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
The Lorex Connect X Series 4K 16-Channel Wired NVR System delivers ultra-clear panoramic coverage to monitor large areas with fewer blind spots and cameras. Advanced AI analytics and proactive deterrence help teams identify activity sooner and respond faster. Comes with a 4TB 16-channel recorder. Broader coverage reduces cabling complexity, installation time and infrastructure costs. No monthly fees. Cables not included.
Key Features

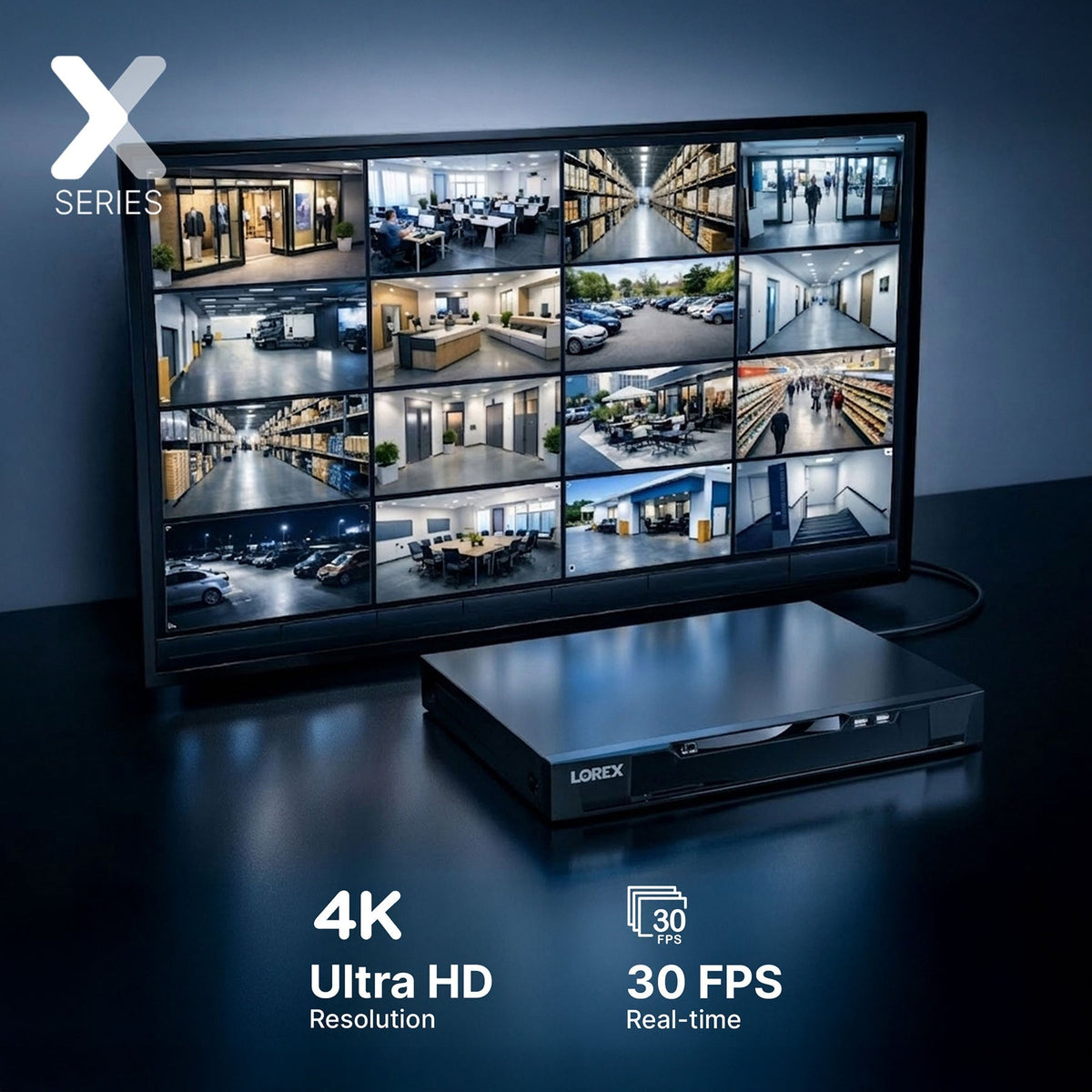

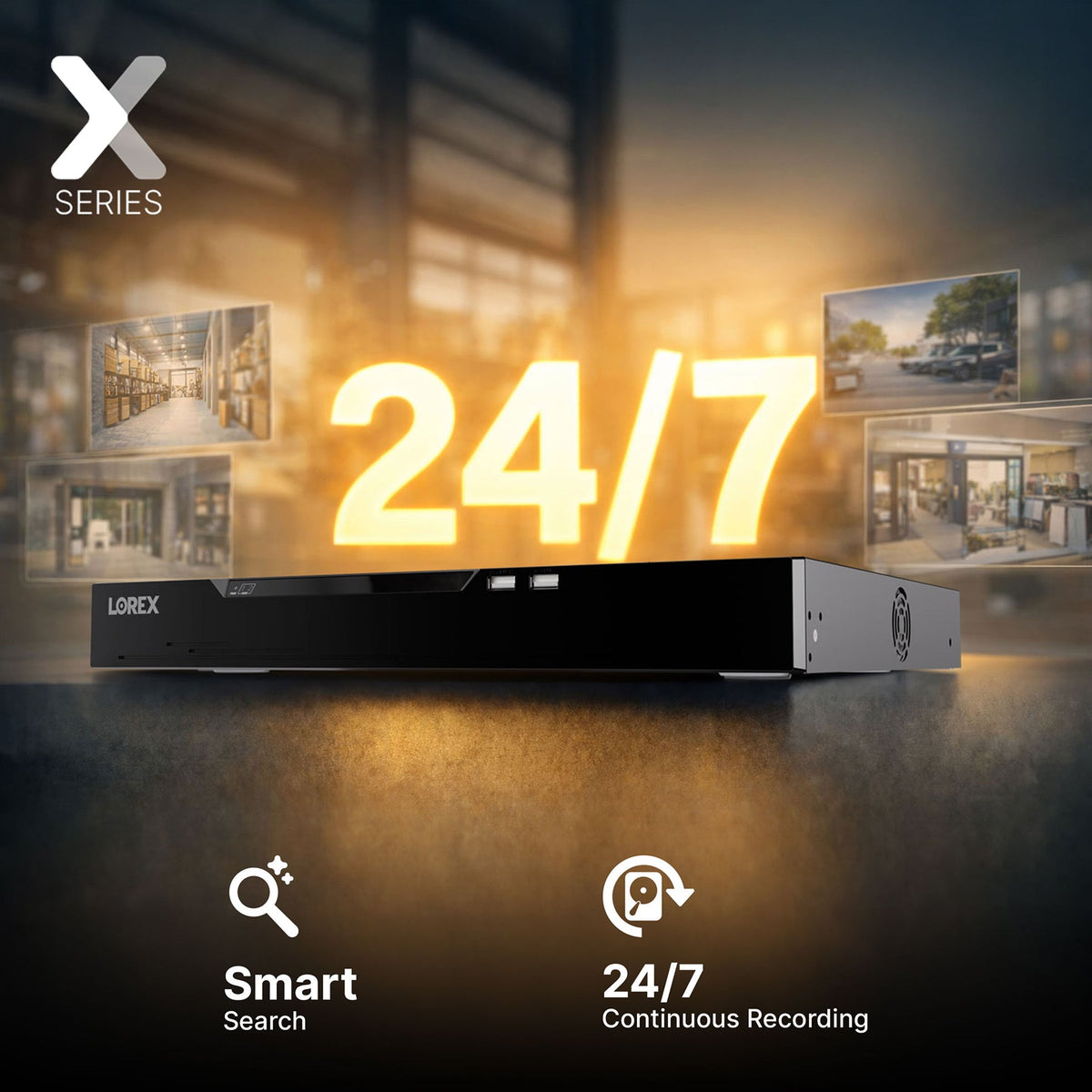

Continuous 4K recording
Connect up to 16 cameras

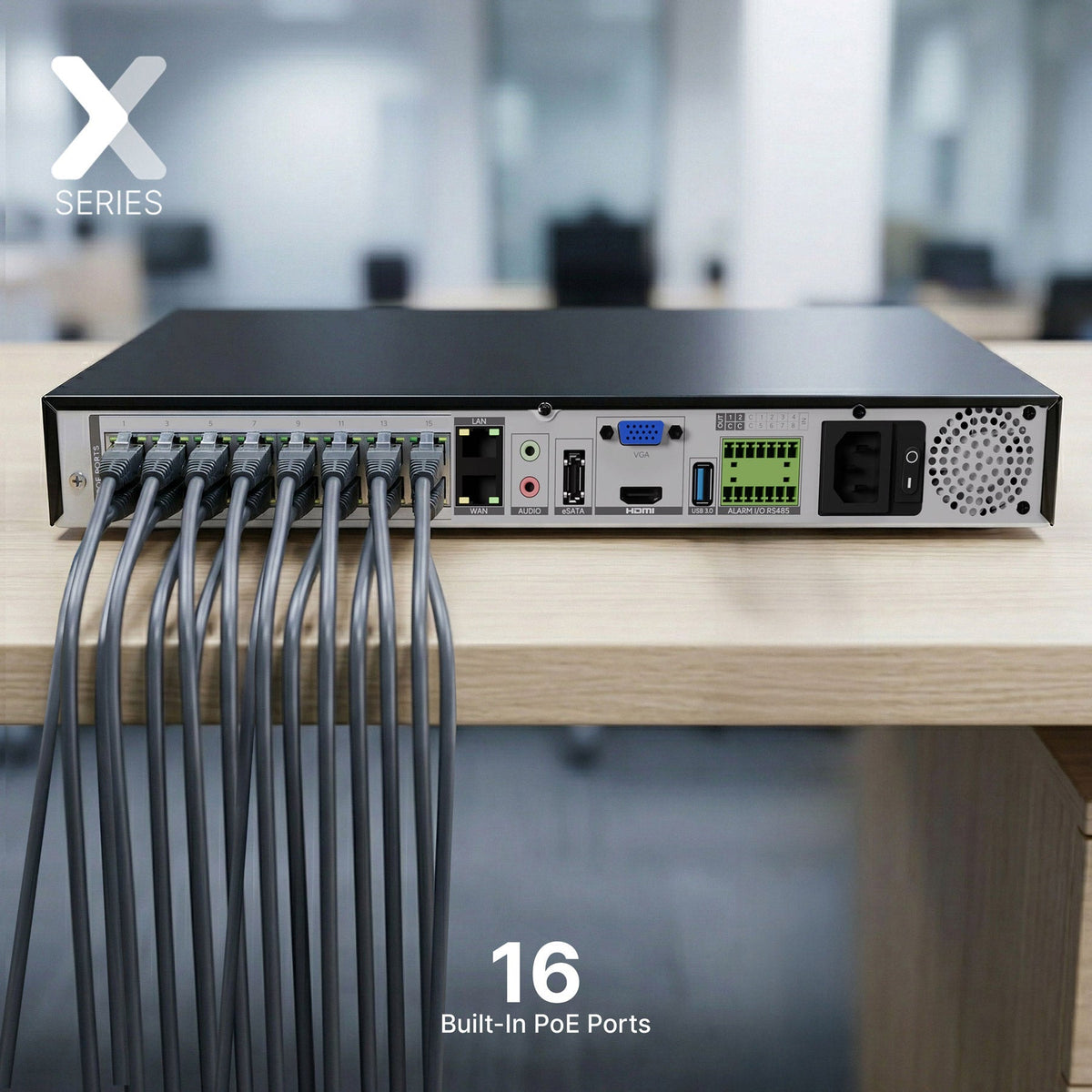

16 built-in PoE ports

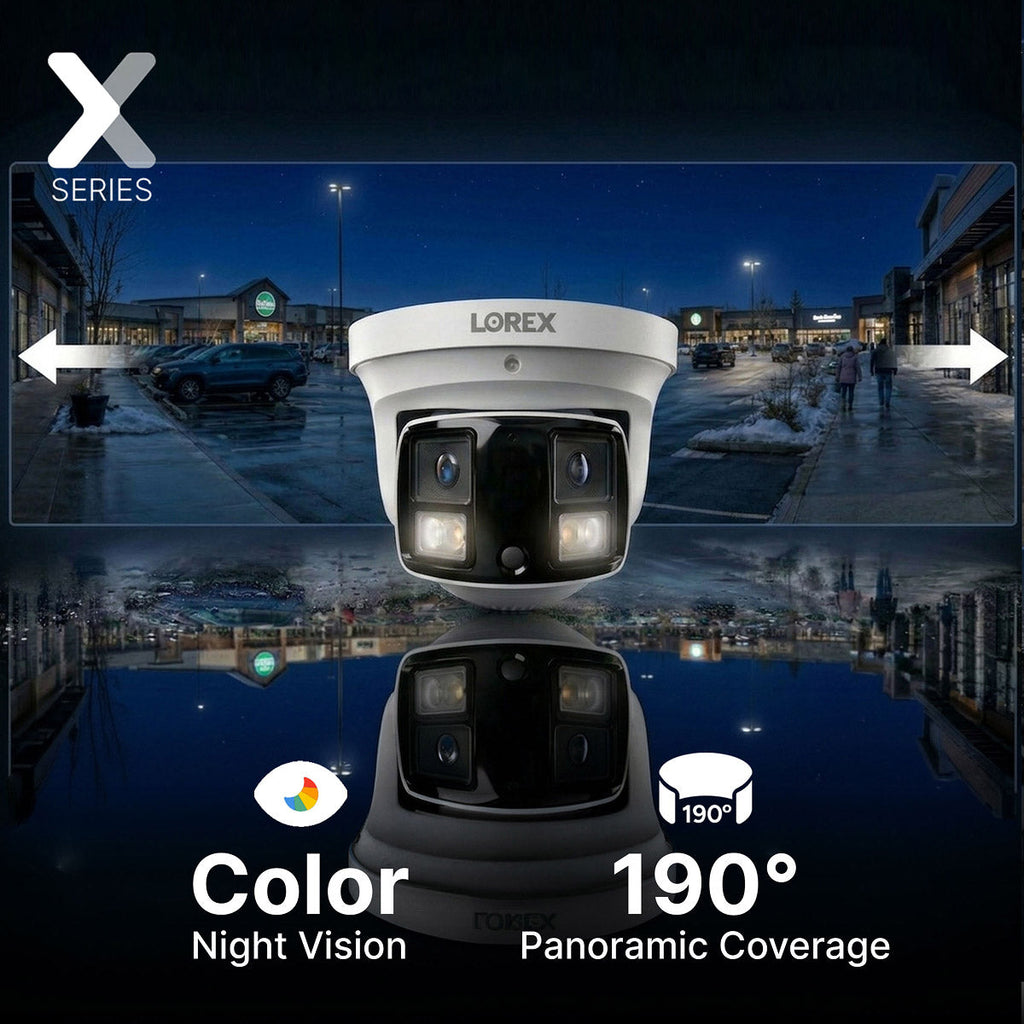

Dual lenses deliver 190° coverage
Real-time 4K with Color Night Vision
Red/blue lights, siren, and warnings
AI detection and business analytics
4TB included, expandable up to 48TB
Remote viewing and alerts with Lorex Connect
Specifications
Recorder: XC 4K 16-Channel NVR
| Channels | 16 |
| Video Resolution | 4K (3840 × 2160) display and recording; supports cameras from 720p up to 12MP |
| Built-In PoE | 16 PoE ports, 240 W max total PoE output |

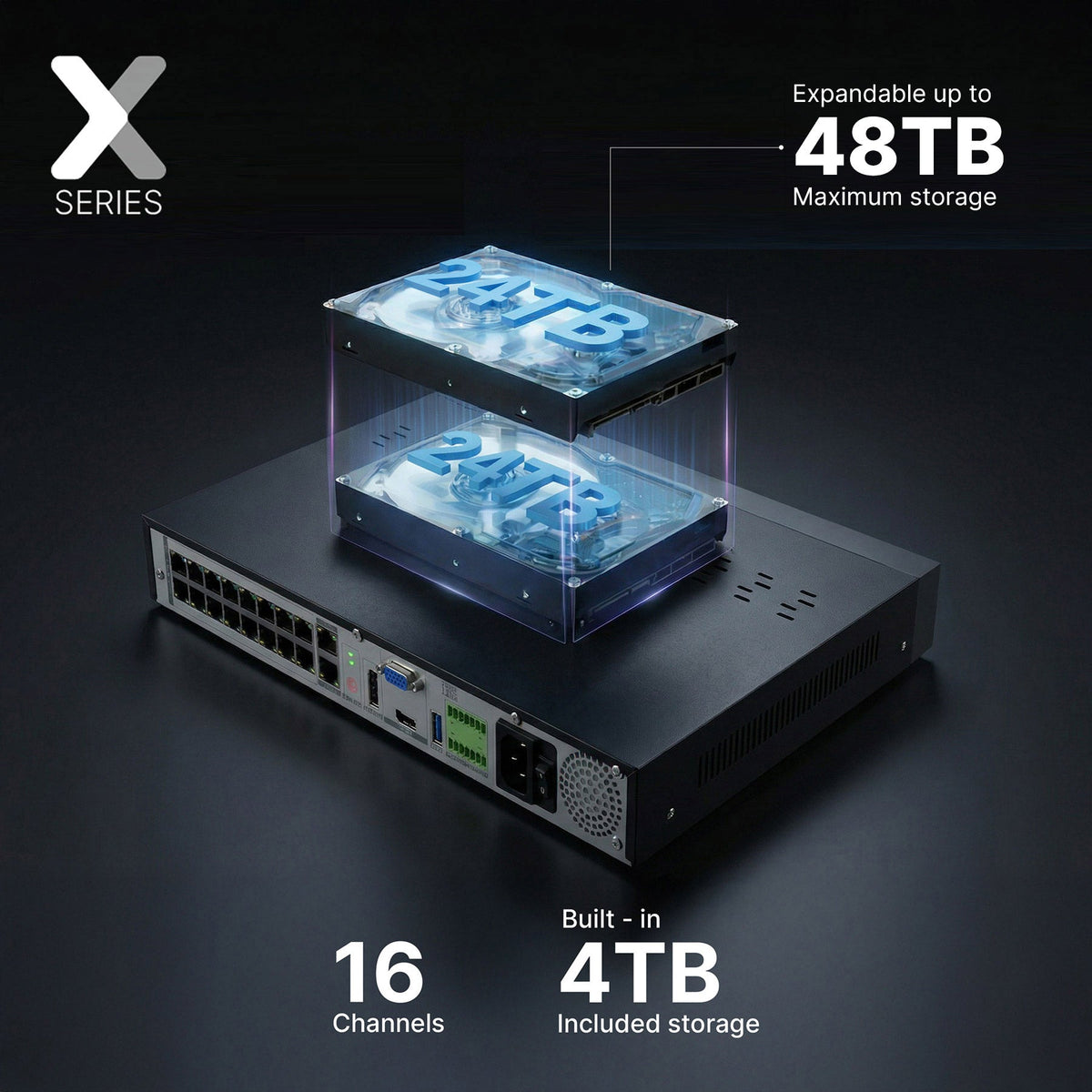

| Storage | 4TB included · 2 SATA bays · expandable up to 48TB (24TB per disk) |
| Video Output | 1 × HDMI (up to 4K) · 1 × VGA (up to 1080p) |
| AI Analytics | Person & vehicle detection, intrusion, loitering, wrong-way, parking, smoke & fire detection, line crossing, heat map, people counting, Smart Search |
| Mobile App | Lorex Connect (iOS and Android) |
| Network | 2 × RJ45 gigabit · ONVIF and RTSP |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Power Consumption | Under 15 W (excluding hard drives) |

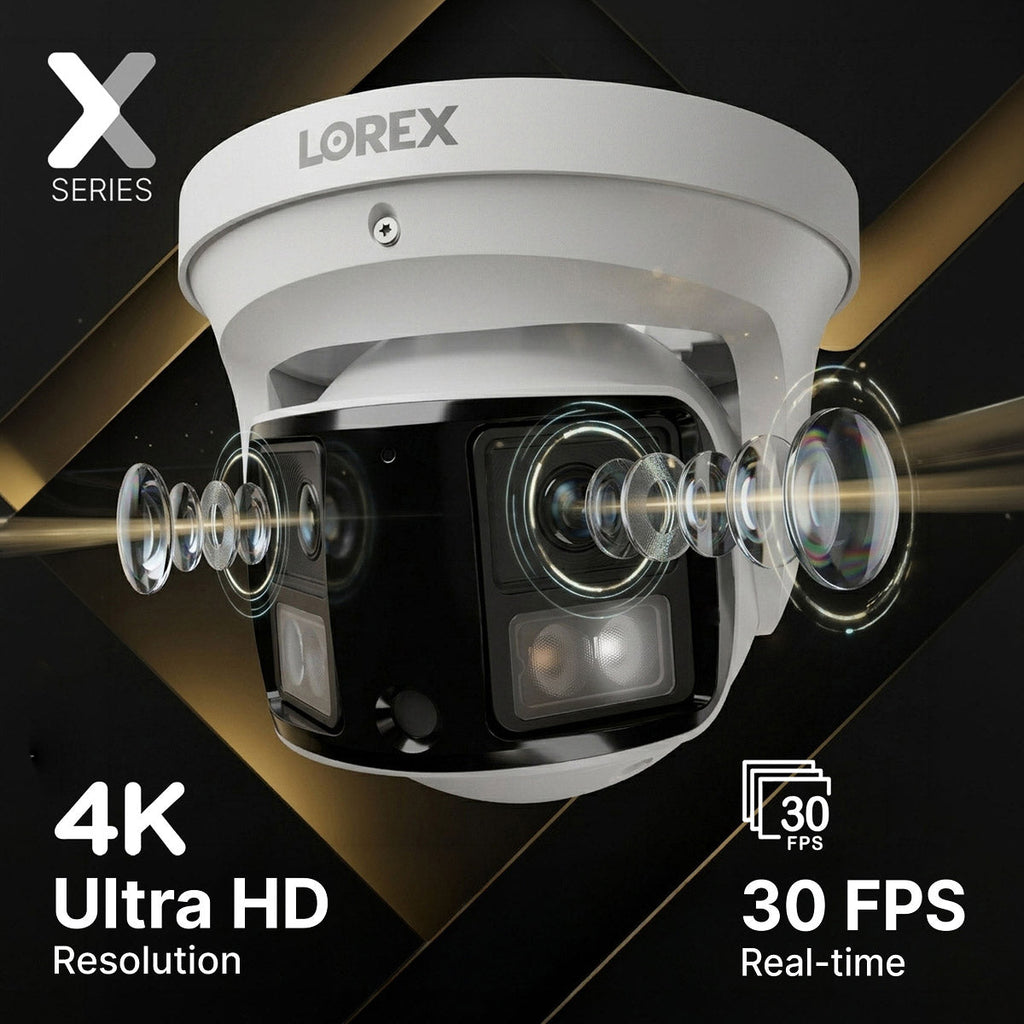

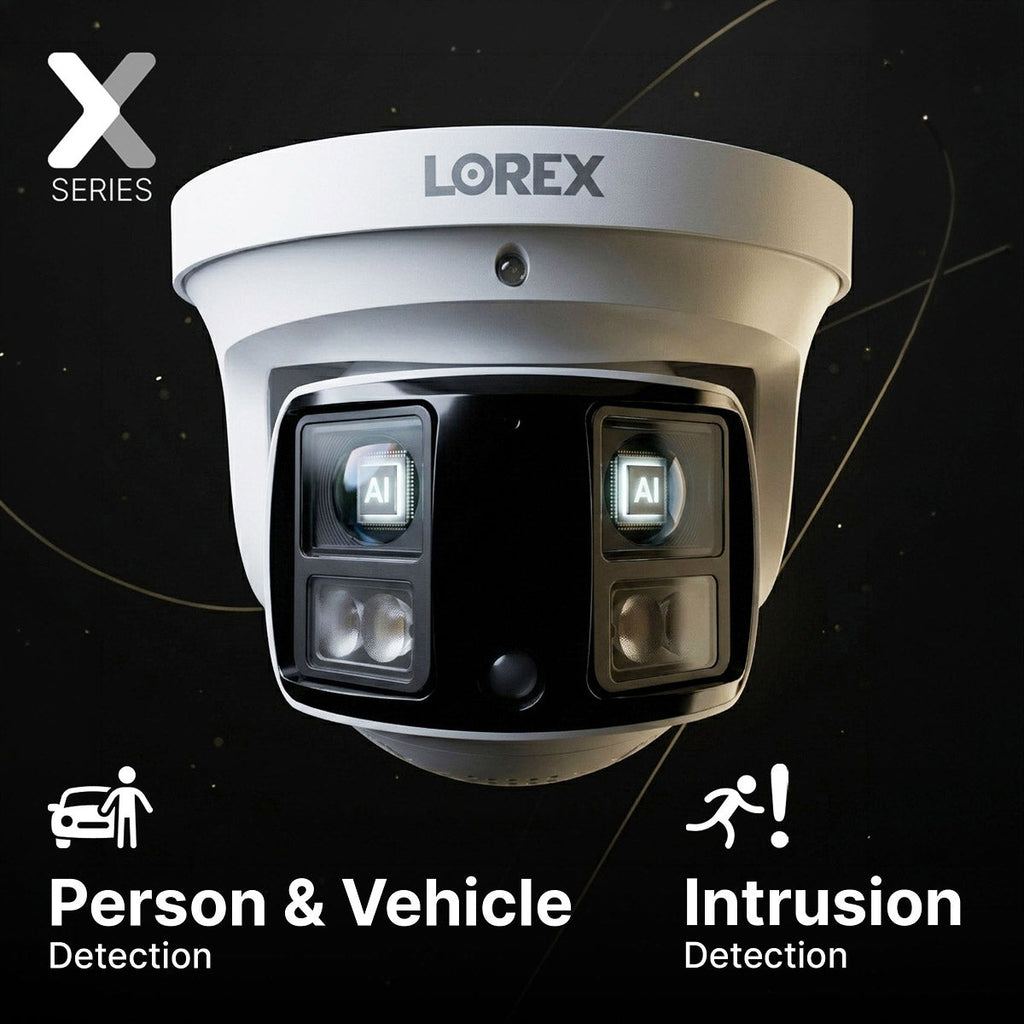

Cameras: X3 4K Dual-Lens Turret Camera
| Resolution | 4K (8MP) at 30 FPS |
| Lens | Dual fixed 2.4 mm, F1.6 aperture |
| Field of View | 190.8° horizontal |
| Night Vision | Color Night Vision with IR, up to 98 ft (30 m) in total darkness |
| Active Deterrence | Siren, white and red & blue lights, pre-recorded messages |
| Audio | 2-way talk |

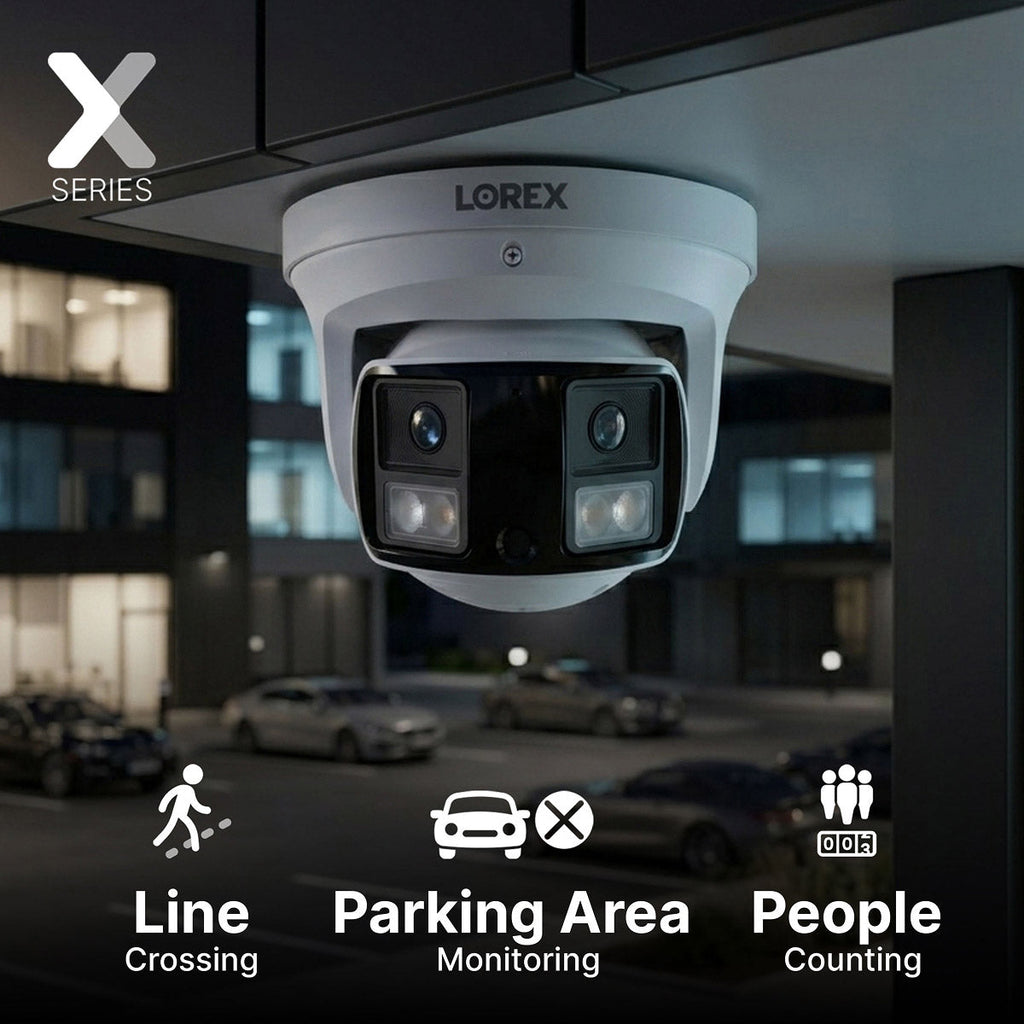

| AI Analytics | Person & vehicle detection, people counting, loitering, intrusion, line crossing, parking and wrong-way monitoring |
| Weather Rating | IP66 |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Power | PoE (802.3af), 11.2 W max |
Download the recorder specification sheet (PDF)
Download the camera specification sheet (PDF)
Recorder manuals, downloads and support articles (Lorex)
Camera manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.

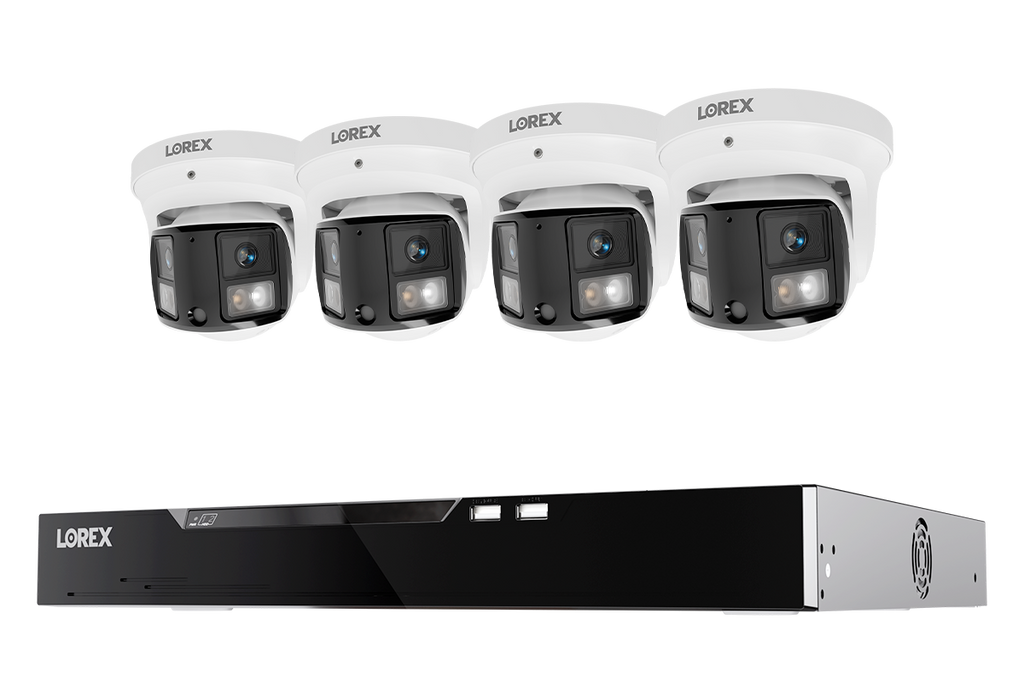

What's Included
- ✔ XC 4K 16-Channel NVR (RNU01P-64B-AB1)
- ✔ 4TB of storage
- ✔ X3 4K Dual-Lens Turret Cameras (CNU01P-1SW-AB1), quantity per your selected option
- ✔ 2 × mounting brackets, 6 × mounting bracket screws
- ✔ HDMI cable, power cable, mouse
- ✔ 2 × Alarm I/O terminal block connectors
- ✔ 8 × HDD screws, 4 × adhesive foam feet pads
- ✔ Alarm I/O terminal block connector, Torx key, mounting hardware and a weather-resistant RJ45 cable gland for each camera
Expand Your System
The recorder in this system supports up to 16 cameras, so you can add more Lorex X Series PoE cameras whenever you need them:
- ➜ X5 4K Turret Camera
- ➜ X5 4K Bullet Camera
- ➜ X3 4K Turret Camera (Zoom)
- ➜ X3 4K Bullet Camera (Zoom)
- ➜ X3 4K Dual-Lens Camera
- ➜ 4K PTZ Camera
- ➜ 2K+ Dual-Lens PTZ Camera
Need a different size? Browse our X Series systems and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
What is included in this system?
The 16-channel recorder with 4TB of storage, the number of cameras you select, and the mounting hardware and cable glands for each camera. See What’s Included above for the full list.
Are network cables included?
No. Network (Ethernet) cable is not included. Each PoE camera needs one network cable run back to the recorder, so plan your cable lengths before ordering.
Is storage included?
Yes. It includes 4TB of storage and has two SATA bays, so you can expand storage up to 48TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
How are the cameras powered?
The recorder has 16 built-in PoE ports (240 W max total output shared across all connected cameras), so a single network cable carries both power and video to each camera. Please check each camera’s power requirements before installing.
Can I add more cameras later?
Yes. The recorder supports up to 16 cameras in total. You can add any Lorex X Series PoE camera, see Expand Your System above.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with an HDMI cable, power cable, mouse and mounting brackets, and each camera ships with its own mounting hardware.
Compare X Series 16-Channel Systems
| X5 Turret | X5 Bullet | X3 Turret (Zoom) | X3 Bullet (Zoom) | X3 Dual-Lens (this system) |
|
|---|---|---|---|---|---|
| Resolution | 4K | 4K | 4K | 4K | 4K |
| Lens | Fixed 2.8 mm | Fixed 2.8 mm | 5× motorized zoom | 5× motorized zoom | Dual fixed 2.4 mm |
| Field of View | 109° | 109° | 33° to 103° | 33° to 103° | 190.8° |
| Night Vision | Color Night IQ+ | Color Night IQ+ | Color Night Vision | Color Night Vision | Color Night Vision |
| Audio | 2-way talk | 2-way talk | Listen-in | 2-way talk | 2-way talk |
| Best for | Entrances, offices, hallways | Building exteriors and perimeters | Zooming in on distant areas | Zooming in on distant areas | Wide areas with fewer blind spots |
