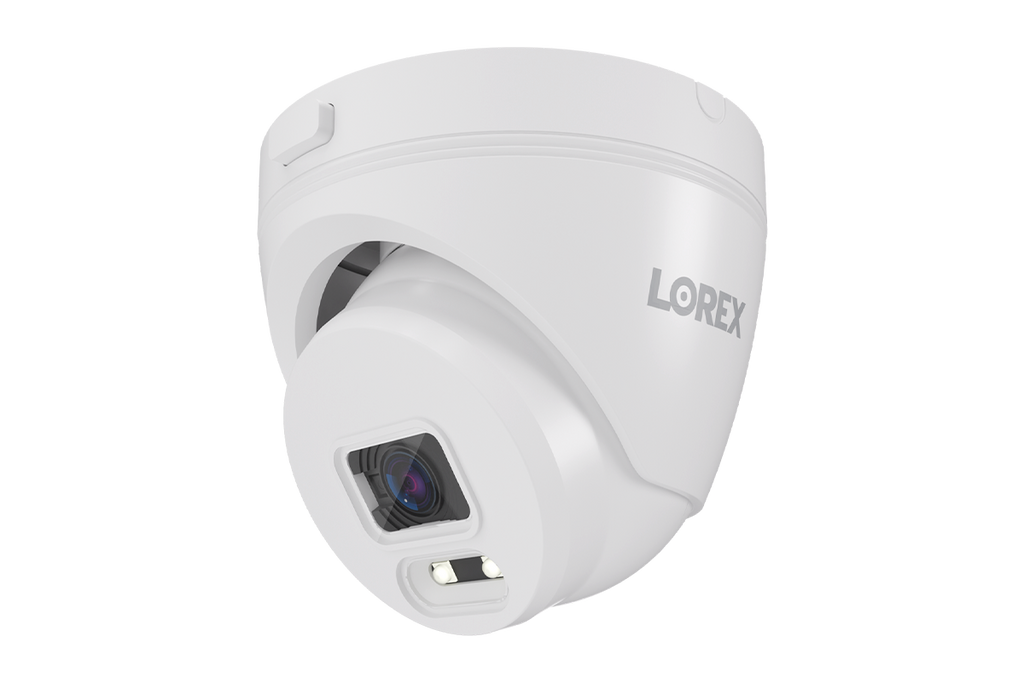

Lorex Connect T1 1080p Analog Turret Camera
Lorex Connect T1 1080p Analog Turret Camera
- Resolution1080p
- StyleTurret
Best for: entrances, garages, porches and yards at homes and small businesses that need dependable 1080p coverage with a compatible Lorex DVR.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
Stay secure around the clock with this wired analog 1080p turret camera. Continuous recording, Color Night Vision and a weatherproof design deliver dependable protection at a great value. Designed for Lorex RD Series DVRs. No monthly fees. A 60 ft BNC/DC cable and power adapter are included.
Key Features

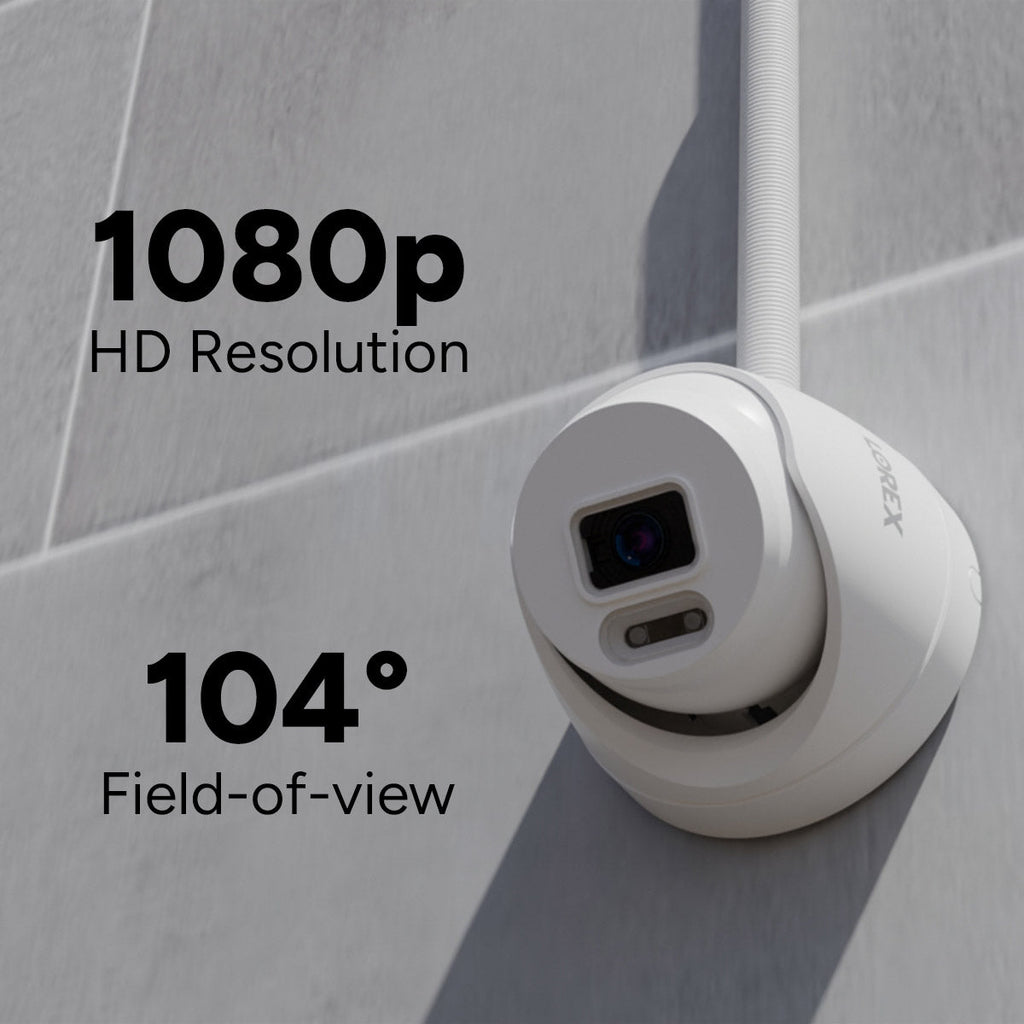

Sharp 1080p video

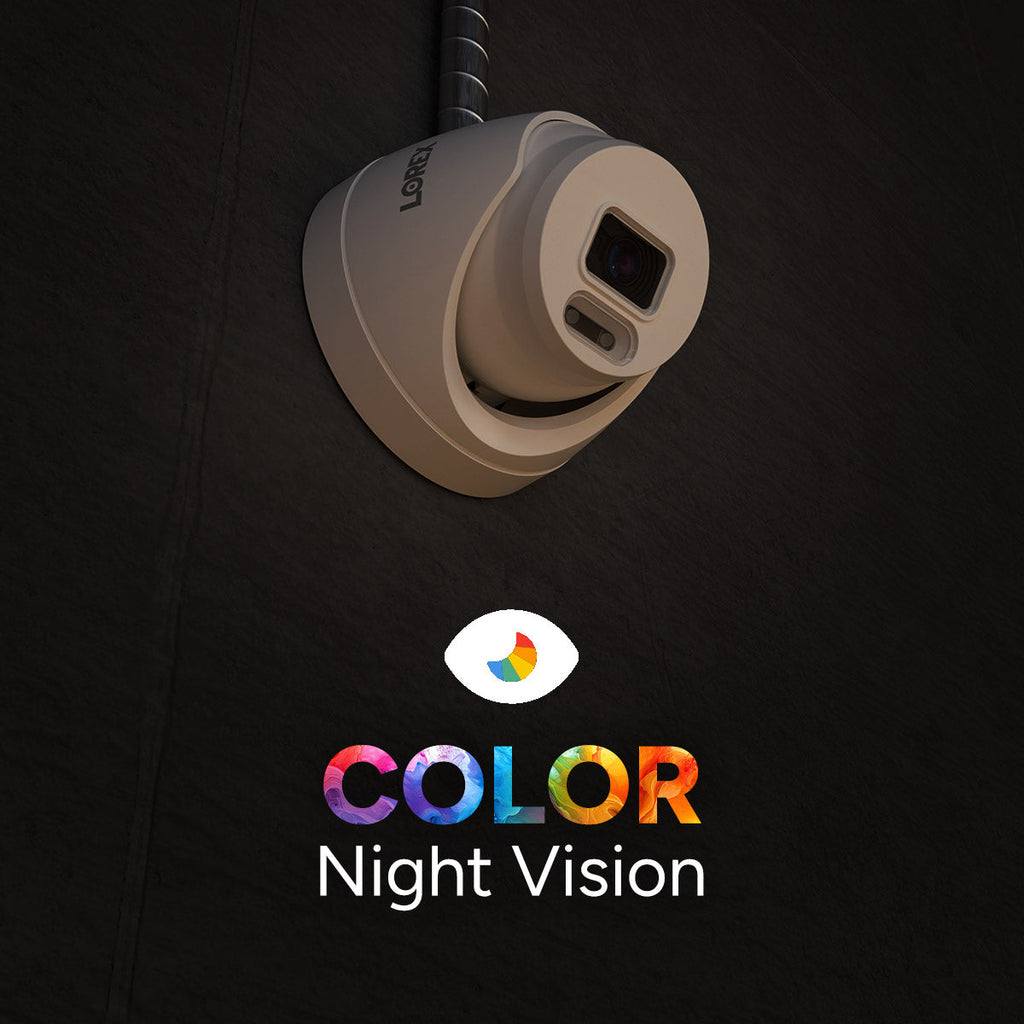

Color Night Vision for enhanced detail after dark

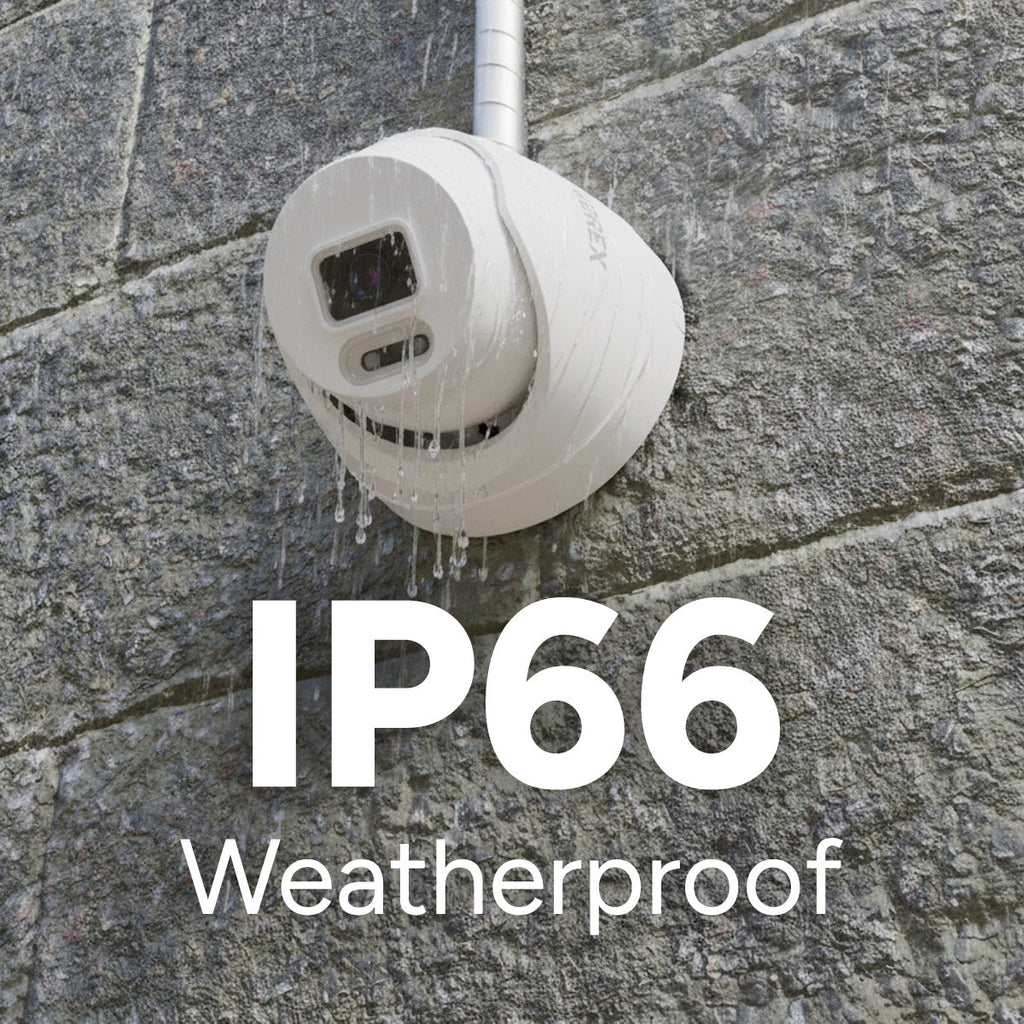

IP66-rated weatherproof design
AI detection of people and vehicles with compatible Lorex DVRs
Focused 104° diagonal field of view

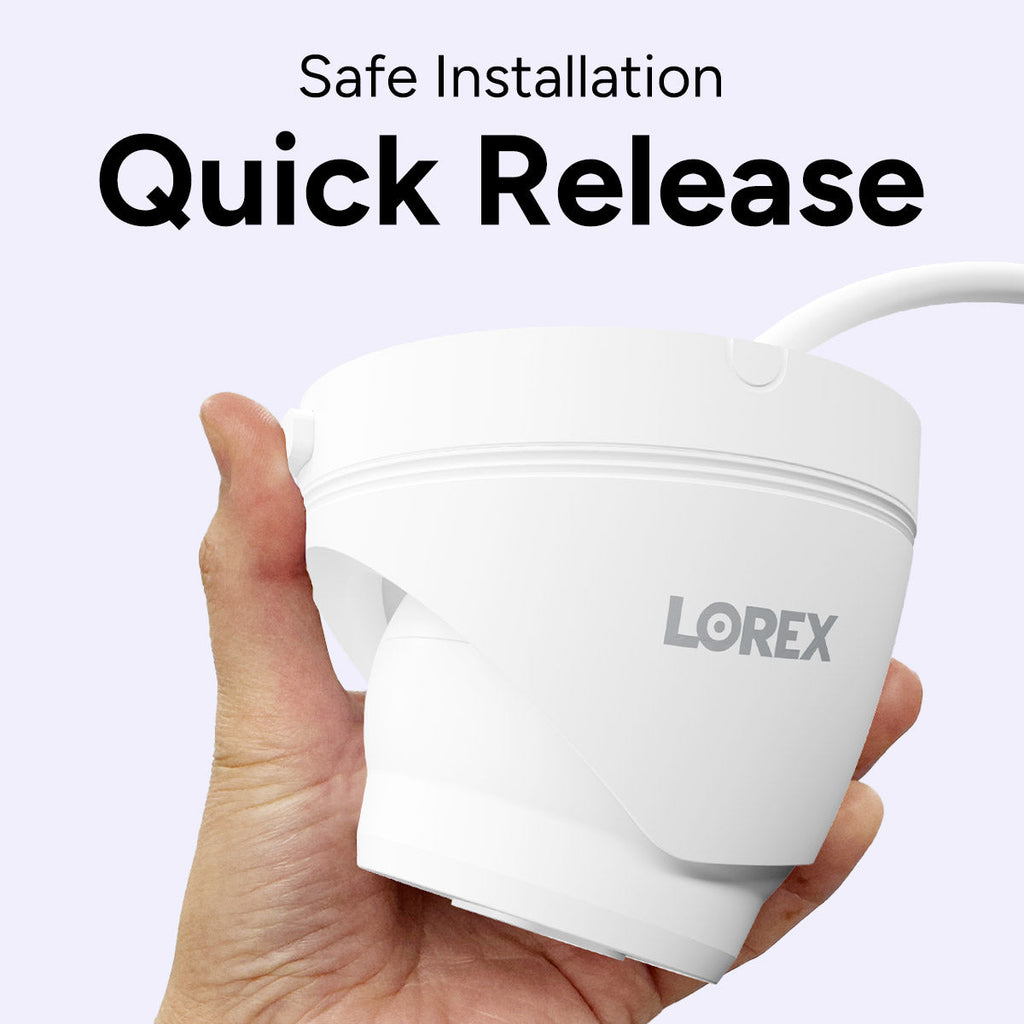

Locking mount with quick-release design
60 ft BNC/DC cable and power adapter included
Works within the Lorex Connect app ecosystem
Continuous recording to your Lorex DVR
Specifications
| Resolution | 1080p Full HD (1920 × 1080) |
| Video Type | Analog HD · BNC output · TVI / AHD / CVI / CVBS |
| Image Sensor | CMOS |
| Lens | Fixed 2.8 mm, F2.0 |
| Field of View | 88° horizontal · 48° vertical · 104° diagonal |
| Night Vision | Color Night Vision · IR up to 65 ft (20 m) in total darkness |
| Wide Dynamic Range | Digital WDR (DWDR) |
| Power | 12 V DC · 3.5 W max (IR on) |
| Weather Rating | IP66 (indoor / outdoor use) |
| Operating Temperature | -22°F to 131°F (-30°C to 55°C) |
| Housing | Plastic |
| Dimensions & Weight | 3.93 × 3.93 × 3.54 in (99.8 × 99.8 × 88.9 mm) · 0.85 lb (0.39 kg) |
Download the full specification sheet (PDF)
Manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ T1 1080p Analog Turret Camera (CA101A-1TW-AB1)
- ✔ Mounting hardware (template, anchors and screws)
- ✔ 60 ft BNC/DC cable
- ✔ 12 V / 1 A power adapter
Complete Your System
This camera connects to a compatible Lorex DVR (see the compatibility list on lorex.com). Pair it with a recorder to get started:
Prefer a ready-made bundle? Browse our T Series systems, DVRs and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
Which recorder does it work with?
It is an analog HD camera that connects to a compatible Lorex DVR with the included BNC/DC cable. It is designed for Lorex RD Series DVRs, such as the TC 4K 8-Channel and TF 4K 16-Channel DVRs. See the compatibility list on lorex.com to confirm your recorder.
Is a cable included?
Yes. A 60 ft BNC/DC cable and a 12 V / 1 A power adapter are included. If your recorder is farther away than the cable allows, additional cable is sold separately.
Are there any monthly fees?
No. Lorex T Series cameras have no monthly fees. Footage is stored locally on your recorder.
Is it weatherproof?
Yes. It has an IP66 rating for indoor and outdoor use and an operating temperature range of -22°F to 131°F (-30°C to 55°C).
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The camera ships with mounting hardware.
Compare T Series Cameras
| T1 1080p Turret (this camera) |
T5 4K Turret | |
|---|---|---|
| Resolution | 1080p Full HD | 4K (8MP) |
| Field of View | 104° diagonal | 131° diagonal |
| Night Vision | Color Night Vision · IR up to 65 ft | Color Night Vision · IR up to 98 ft |
| Weather Rating | IP66 | IP66 |
| Mount | Locking quick-release mount | Locking quick-release mount |
| Best for | Everyday HD coverage at a great value | Sharper detail on entrances and key areas |
