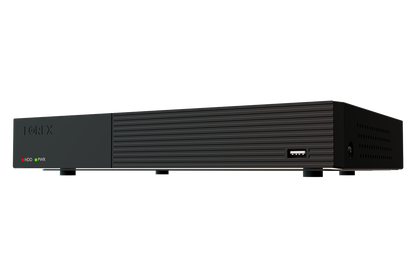

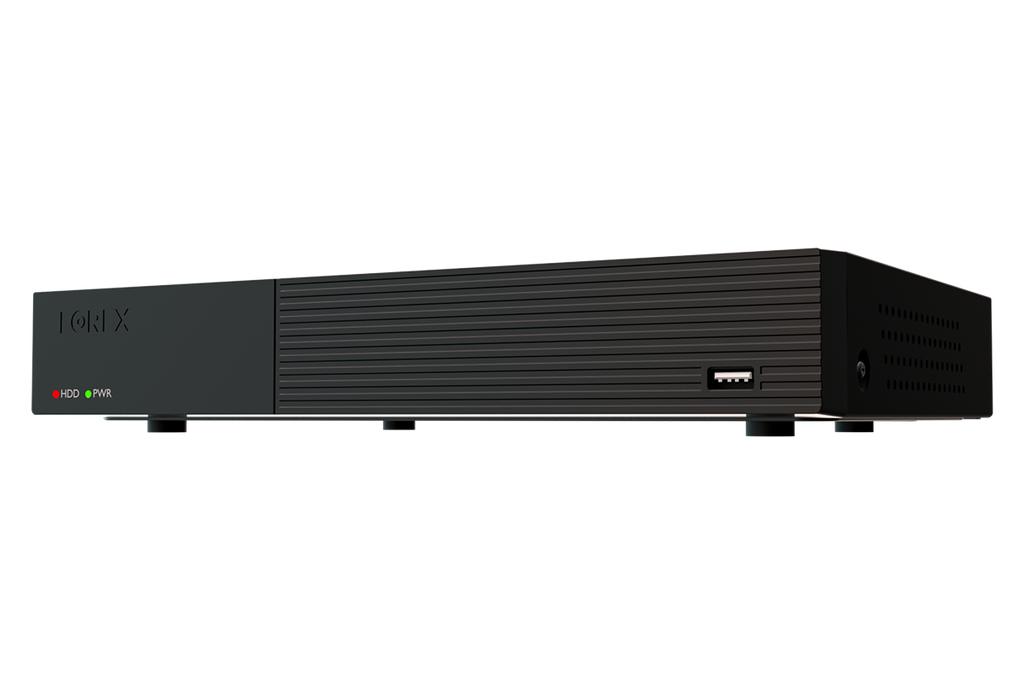

Lorex Connect TC 4K 8-Channel DVR - 1TB
Lorex Connect TC 4K 8-Channel DVR - 1TB
- Resolution4K
- Channels8-Channel
- Storage1TB
Best for: homes and small businesses that want a quiet 4K-capable recorder with 1TB of storage for up to 8 analog cameras.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
Protect your property with this 4K DVR featuring AI detection for people and vehicles, Smart Search to quickly locate events and expandable storage up to 10TB. Includes a 1TB hard drive and QuietTek technology for quiet operation. No monthly fees.
Key Features
Connect up to 8 compatible cameras

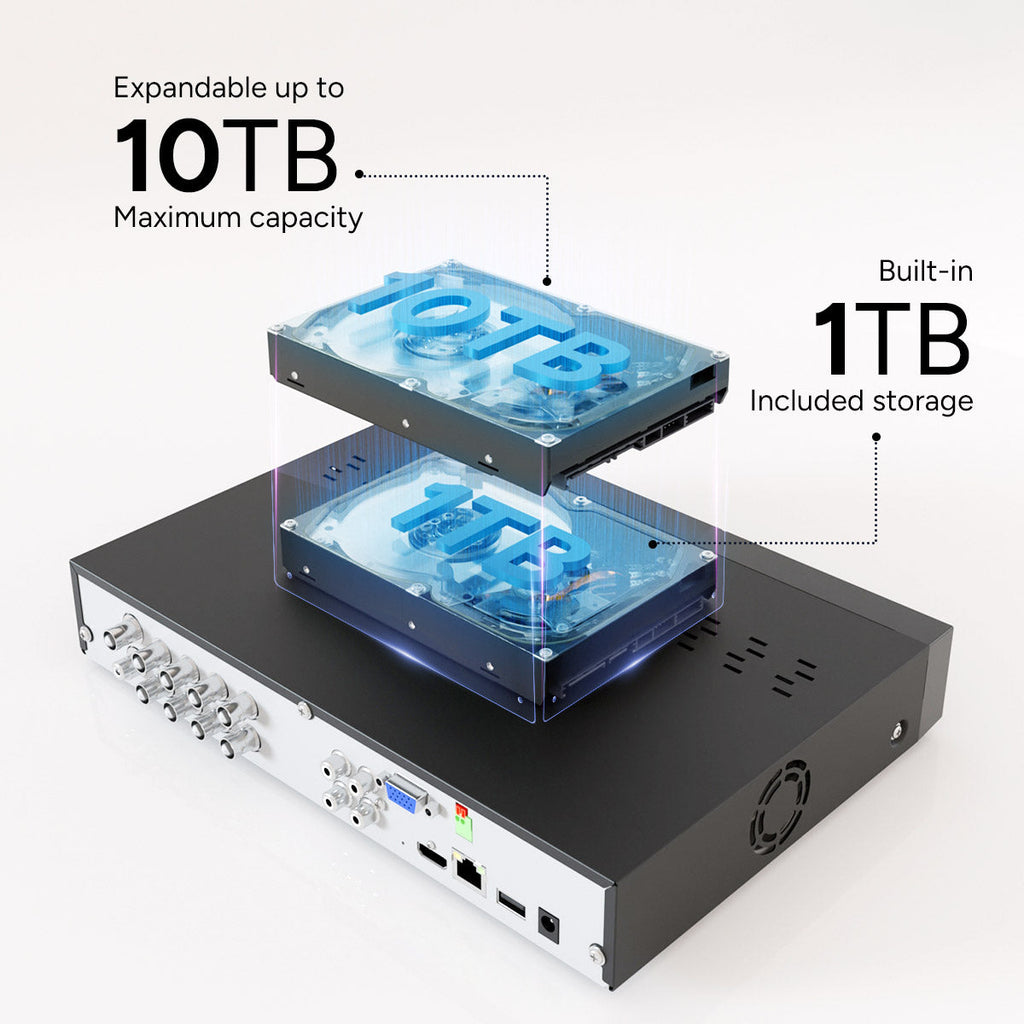

1TB hard drive included, expandable up to 10TB

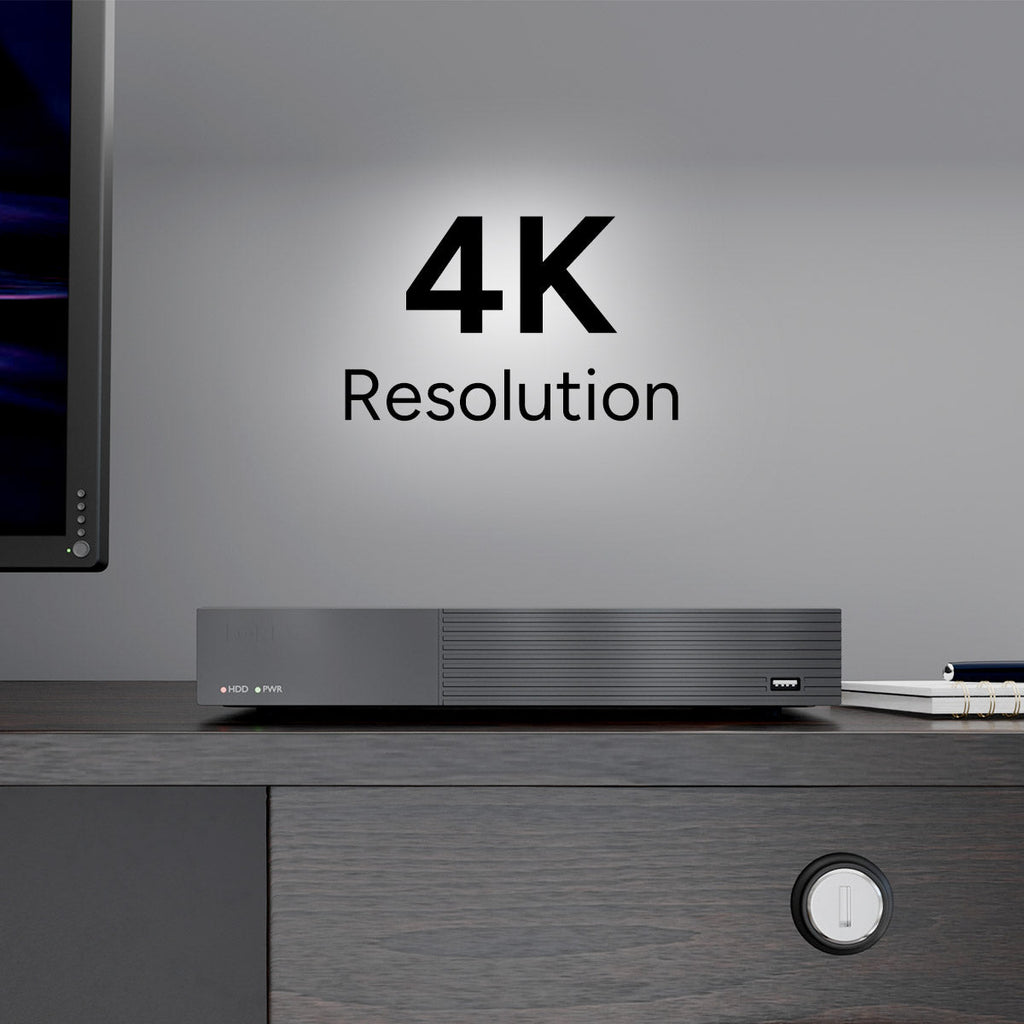

Record video in 4K resolution
QuietTek technology allows placement near TVs and living areas
Accurately identify people and vehicles
Customize searches using Smart Search filters
Up to 8 synchronized channels
Save clips to a USB flash drive or external USB HDD
Compatible with the Lorex Connect app
Specifications
| Channels | 8 |

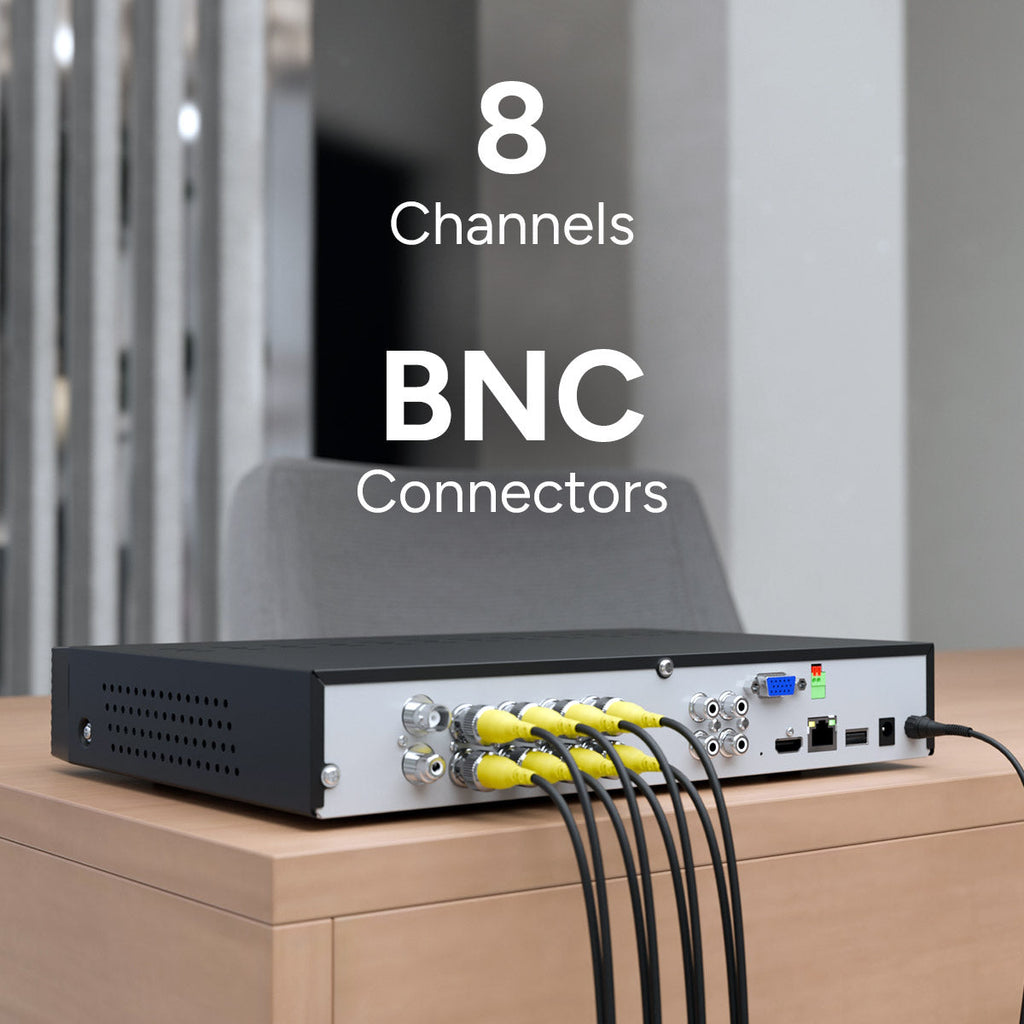

| Video Inputs | 8 × analog (BNC) |
| Video Outputs | 1 × HDMI · 1 × VGA |
| Display Resolution | Up to 4K Ultra HD (3840 × 2160) |
| Recording Resolutions | 4K (8MP), 5MP, 4MP, 1080p (2MP) |
| Video Compression | H.264 / H.265 |
| Storage | 1TB hard drive included · 1 SATA bay · expandable up to 10TB |
| AI Analytics | Person & vehicle detection, perimeter intrusion, line crossing, face detection (1 AI detection type per channel, up to 8 AI-enabled channels) |
| Backup | USB flash drive or external USB HDD |
| Playback | Up to 8 channels, synchronized |
| Mobile App | Lorex Connect (iOS and Android) |
| Network & USB | 10/100 Base-TX (RJ45) · 2 × USB 2.0 (1 front, 1 back) |
| Power | DC 12 V / 2 A · 4.7 W (excluding hard drive) |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimensions & Weight | 11.81 × 8.66 × 2.08 in (300 × 220 × 53 mm) · 1.21 lb (0.55 kg) |
Download the full specification sheet (PDF)
Manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ TC 4K 8-Channel DVR (RD501A-81B-AB1)
- ✔ 1TB hard drive
- ✔ Network (Ethernet) cable
- ✔ HDMI cable
- ✔ USB mouse
- ✔ Power adapter
Add Cameras
Pair this recorder with Lorex T Series analog cameras:
Prefer a ready-made bundle with cameras included? Browse our T Series systems, DVRs and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
Are cameras included?
No. This is a recorder only. Cameras are sold separately, or you can choose one of our ready-made T Series systems that include cameras.
Is storage included?
Yes. It includes a 1TB hard drive and has one drive bay, so you can expand storage up to 10TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
Can I record in 4K?
Yes. The recorder supports 4K (8MP) recording and displays up to 4K Ultra HD. 4K (8MP) cameras, such as the Lorex T5 4K Analog Turret Camera, are required to take advantage of 4K recording.
What do I need for remote viewing?
Remote access requires a high-speed internet connection and a router (not included). Lorex recommends a minimum upload speed of 6 Mbps for the best video performance, and up to 3 devices can connect at the same time.
How many cameras can use AI detection?
AI detection works with 1 detection type per channel, on up to 8 AI-enabled channels.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with a network cable, HDMI cable, USB mouse and power adapter.
Compare T Series DVRs
| TC 4K 8-Channel (this recorder) |
TF 4K 16-Channel | |
|---|---|---|
| Channels | 8 | 16 |
| Display Resolution | Up to 4K Ultra HD | Up to 4K Ultra HD |
| Storage | 1TB (up to 10TB) | 1TB (up to 10TB) |
| AI Detection | People & vehicles | People & vehicles |
| Live View Modes | 1, 4, 8 | 1, 4, 8, 16 |
| Best for | Homes and small businesses with up to 8 cameras | Larger properties with up to 16 cameras |
