Single Port IP & PoE over 2-wire Set (300m/1000ft end-to-end converters)
Single Port IP & PoE over 2-wire Set (300m/1000ft end-to-end converters)
Best for: moving analog systems to IP over existing two-wire cabling.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
The ETP-01 Series carries Ethernet and PoE up to 300 m (1,000 ft) over a single twisted pair, overcoming the 100 m Ethernet limit at a lower cost than fiber. Use existing UTP bundle cables or any single twisted-pair cable to migrate an analog system to IP and power your IP cameras from the NVR using PoE.
Key Features
Specifications
| Interface | 2-wire (2-pin terminal block) · 1 × RJ45 100Base-T |
| Distance | Ethernet and PoE up to 300 m (1 pair of Cat5e, 7W camera) |
| Transmission Rate | 100 Mbps full duplex |
| PoE Output (T unit) | IEEE 802.3af / 802.3at · up to 60W with a 57V adapter (not included) |
| Dimensions & Weight | 93 × 51 × 24 mm · 52 g per unit |
| Operating Temperature | -20°C to 60°C |
| Protection | Surge protection (IEC 61000-4-5, 4 kV) |
Specifications as published by Lorex and subject to change.

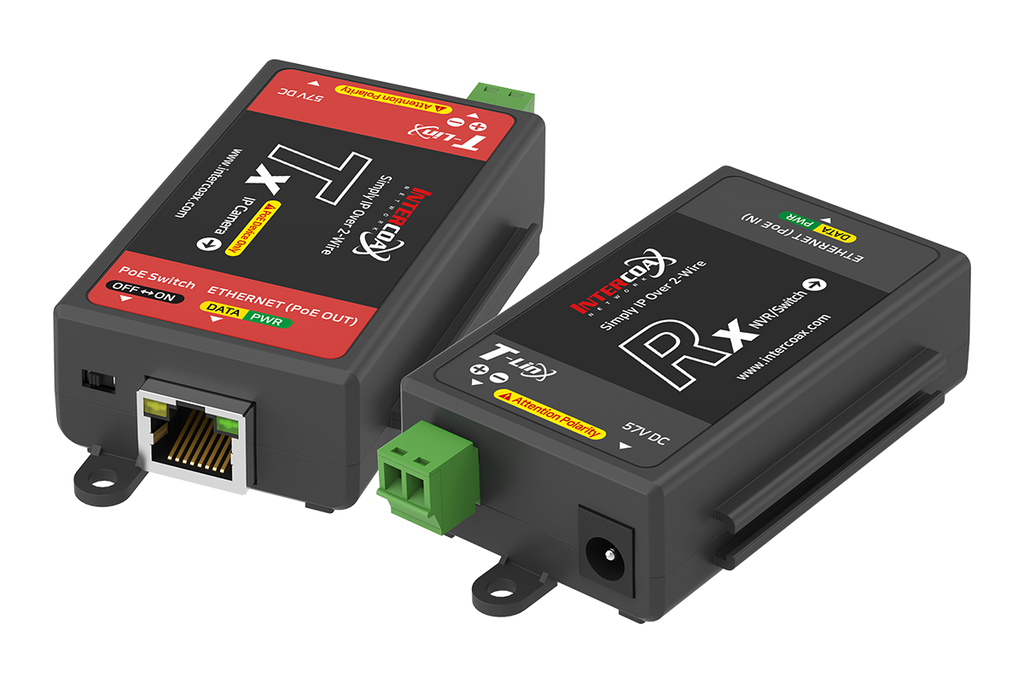

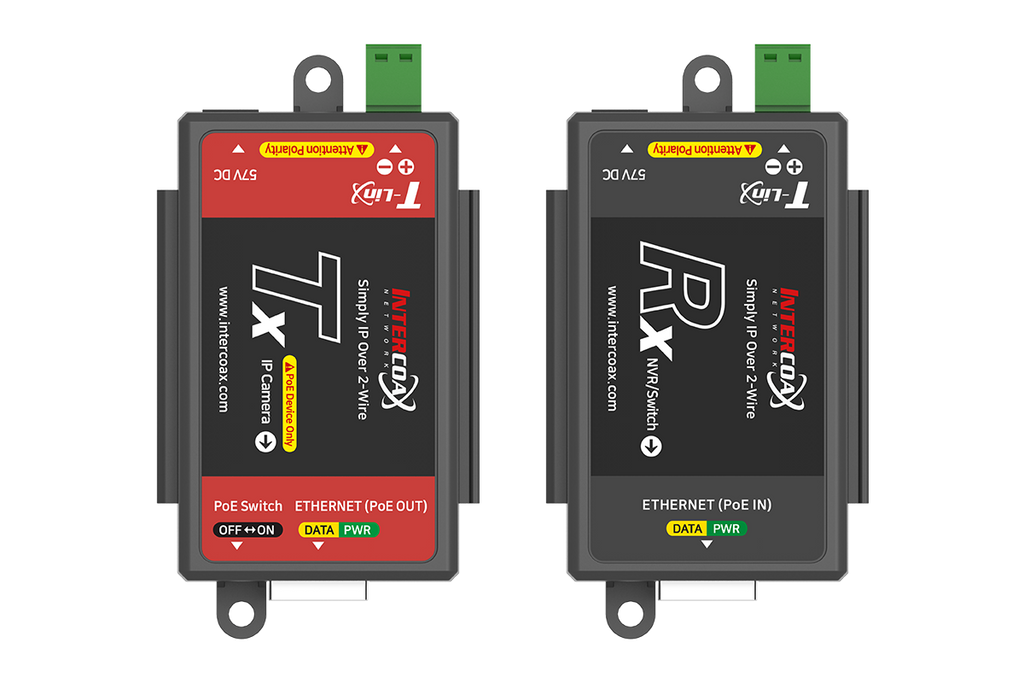

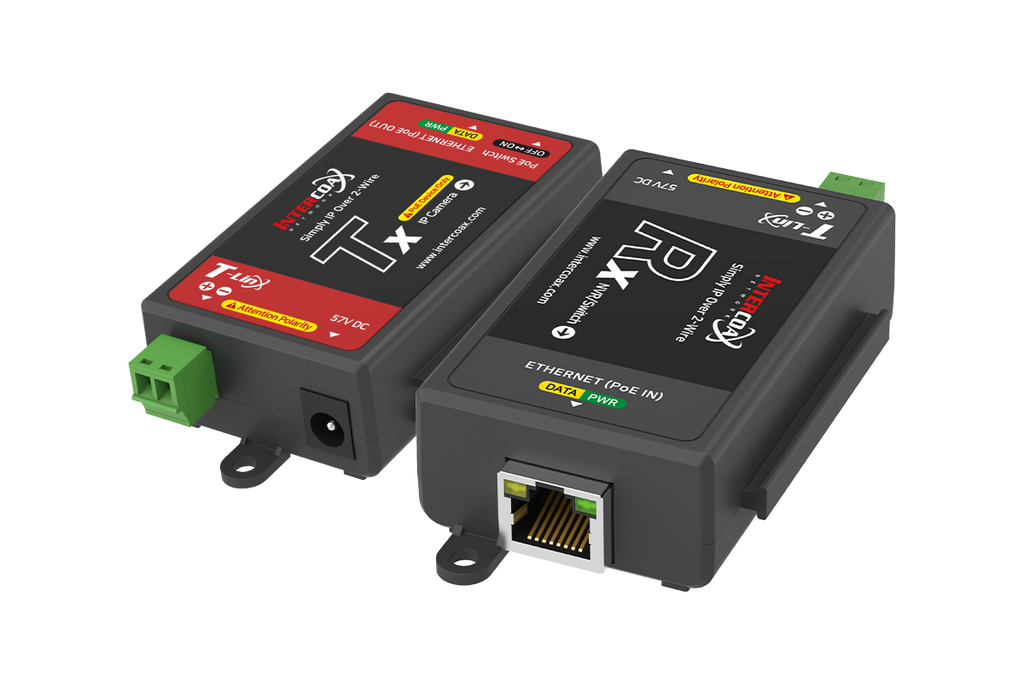

What's Included
- ✔ 1 × ETP-01T transmitter
- ✔ 1 × ETP-01R receiver
- ✔ 2 × terminal connectors
- ✔ 1 × manual
Pair It With
Use it with your Lorex recorder and IP cameras:
Warranty & Claims
This product is covered by the Lorex manufacturer warranty, counted from your date of purchase. Coverage terms vary by product and some exceptions apply — see the Lorex warranty terms. Please keep your order confirmation as proof of purchase.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions. Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
How far can it go?
Up to 300 m (1,000 ft) over 1 pair of Cat5e with a 7W camera. Distance varies with cable type and quality, power use and environmental conditions.
Is a power adapter included?
No power adapter is listed in the box. Lorex notes the extra PoE output (up to 60W) requires a 57V adapter. Contact us if you need help planning your power.
Is installation included?
No. Installation is not included and we do not offer installation services.
