Professional Single Port IP & PoE over Coax Set (1200m/4000ft end-to-end converters)
Professional Single Port IP & PoE over Coax Set (1200m/4000ft end-to-end converters)
Best for: reaching cameras over 1,000 m away on existing coax cable.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy

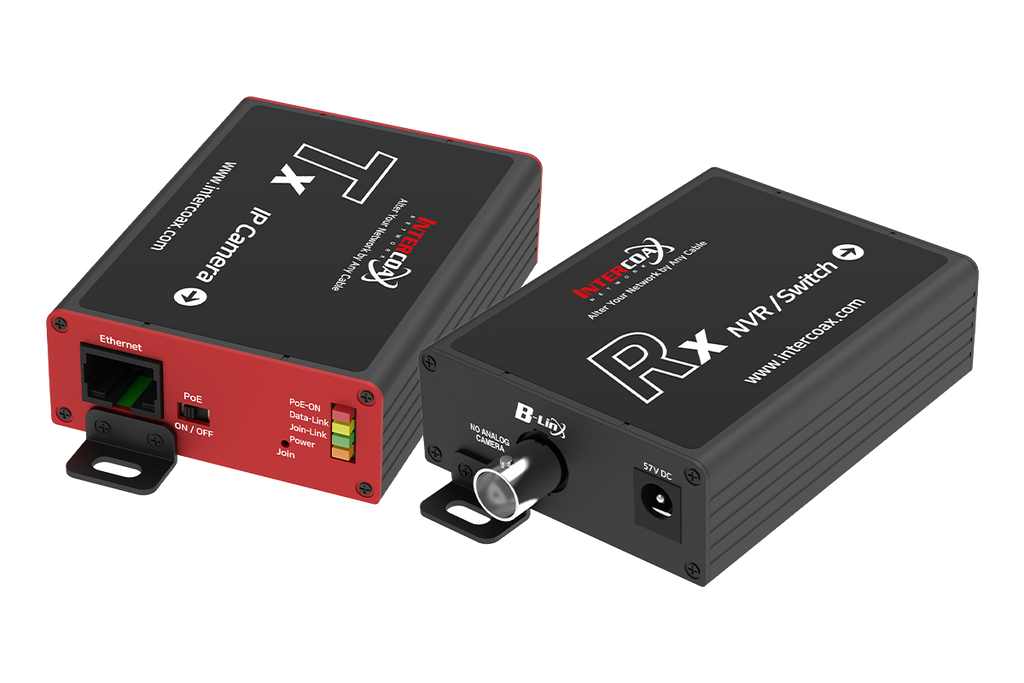

The ECP-2601 professional converter set carries Ethernet up to 2.4 km and PoE up to 1.2 km (1,200 m / 4,000 ft) over coax, UTP or 2-wire cable. It sends PoE from the NVR to the IP camera at up to 60W PoE++, supports a 1:N daisy-chain connection and software configuration, handles an 8K video stream and helps migrate an existing analog system to IP over the cables already in the walls.
Key Features
Specifications
| Interfaces | 1 × 75Ω BNC (female) · 1 × RJ45 10/100Base-T |
| Distance | Ethernet up to 2.4 km · PoE up to 1.2 km (RG-6, 7W camera) |
| Transmission Rate | 95 Mbps full duplex (270 Mbps between Intercoax devices) |
| PoE Output (T unit) | IEEE 802.3af / 802.3at · up to 60W PoE++ |
| Security | 128-bit AES encryption |
| Dimensions & Weight (T unit) | 82.4 × 61.6 × 24 mm · 77 g |
| Operating Temperature | -20°C to 60°C |
| Protection | Surge protection (IEC 61000-4-5, 4 kV) |
Specifications as published by Lorex and subject to change.
What's Included

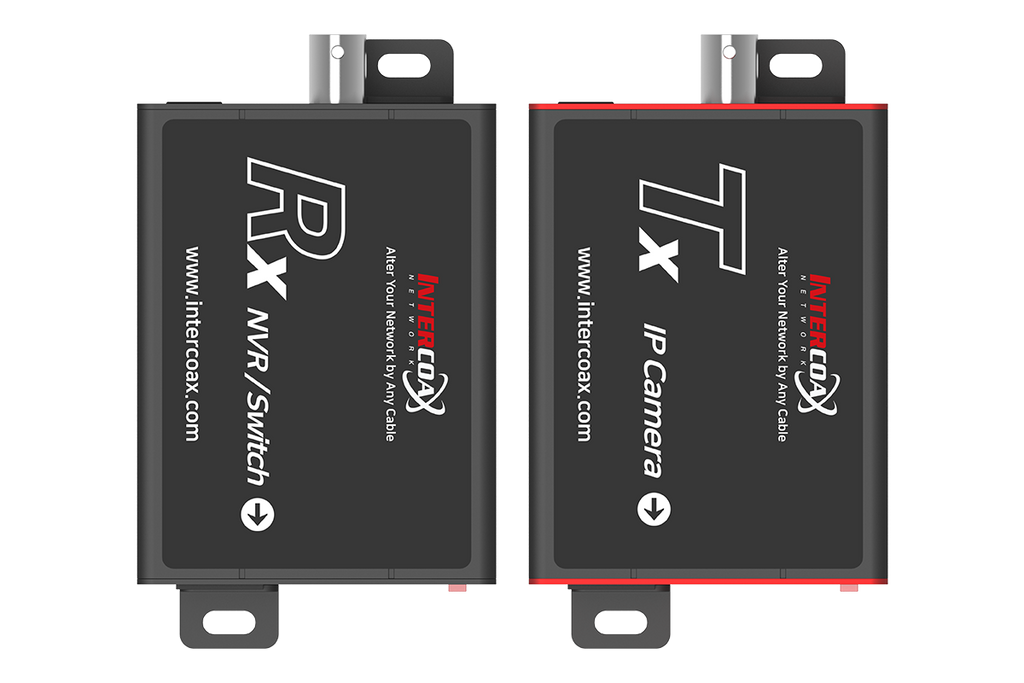

- ✔ 1 × ECP-2601T transmitter
- ✔ 1 × ECP-2601R receiver
- ✔ 2 × mounting brackets
- ✔ 4 × screws
- ✔ 1 × quick guide
Pair It With
Use it with your Lorex recorder and IP cameras:
Warranty & Claims
This product is covered by the Lorex manufacturer warranty, counted from your date of purchase. Coverage terms vary by product and some exceptions apply — see the Lorex warranty terms. Please keep your order confirmation as proof of purchase.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions. Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
How far can it go?
Up to 1.2 km (4,000 ft) for PoE and 2.4 km for Ethernet. Lorex bases these distances on RG-6 cable and a 7W IP camera; distance varies with cable type and quality, power use and environmental conditions.
Is a power adapter included?
No power adapter is listed in the box. Contact us if you need help planning your power.
Is installation included?
No. Installation is not included and we do not offer installation services.
