Lorex Connect VF 4K 16 Channel NVR - 2TB
Lorex Connect VF 4K 16 Channel NVR - 2TB
- Resolution4K
- Channels16-Channel
- Storage2TB
Best for: larger homes, properties and small businesses that need one quiet 4K recorder for up to 16 PoE cameras.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
Secure your data and stay connected to your property with this 16-channel 4K Network Video Recorder (NVR). It includes 2TB of storage and 16 built-in PoE ports, with AI detection, Smart Search and whisper-quiet operation. Pair it with Lorex V7 cameras to unlock License Plate Recognition. No monthly fees.
Key Features
Connect up to 16 compatible IP cameras

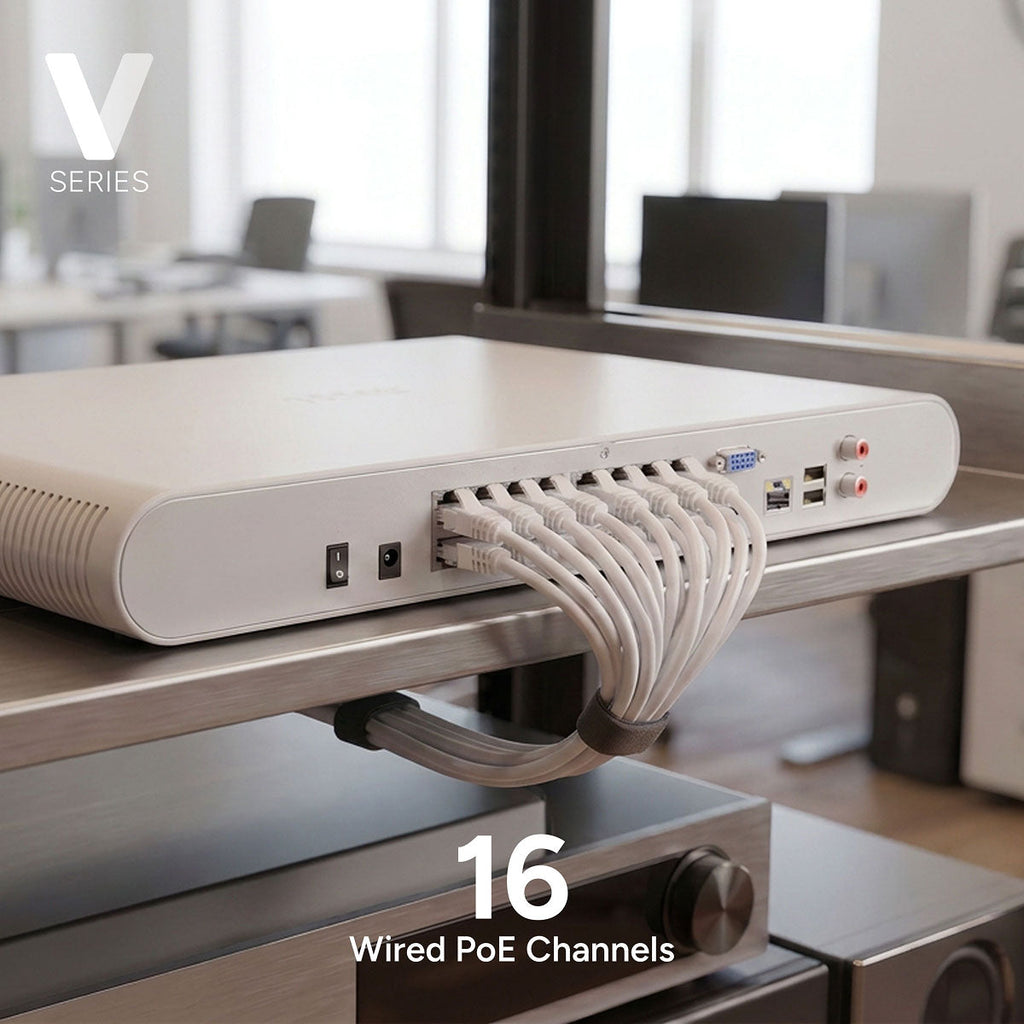

16 built-in PoE ports
Records video in 4K resolution

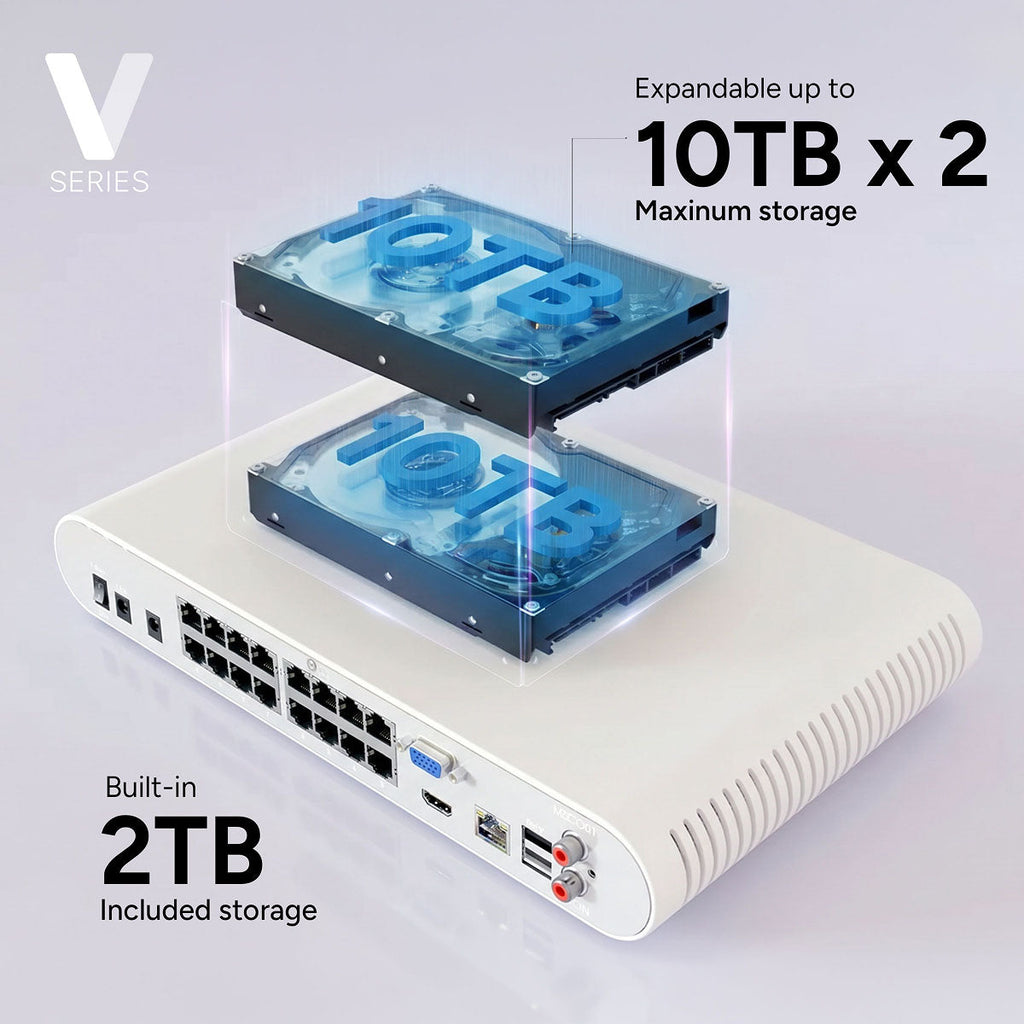

2TB included, expandable up to 2 × 10TB
Fanless QuietTek design suits TVs and living areas
Accurately identify people and vehicles
Customize searches with Smart Search filters
Remote viewing and alerts with Lorex Connect
Specifications
| Channels | 16 |
| Video Resolution | 4K (3840 × 2160) display; records cameras from 1MP up to 8MP (4K) |
| Built-In PoE | 16 PoE ports, 180 W max total PoE output (25.5 W max per port) |
| Storage | 2TB included · 2 SATA bays · up to 10TB per bay (2 × 10TB) |
| Video Output | 1 × HDMI (up to 4K) · 1 × VGA (up to 1080p) |
| Video Compression | H.265 / H.264 |
| AI Analytics | Person & vehicle detection, perimeter intrusion, face detection and recognition, license plate recognition, line crossing, cross counting, queue length, Smart Search |
| Playback | Up to 16 channels simultaneously |
| Mobile App | Lorex Connect (iOS and Android) |
| Network | 1 × RJ45 (10/100) |
| Cooling | Fanless QuietTek design |
| Operating Temperature | 14°F to 131°F (-10°C to 55°C) |
| Power Consumption | 6 W (excluding hard drive) |
| Dimensions & Weight | 15.79 × 11.42 × 1.97 in (401.07 × 290.07 × 50.04 mm) · 4.94 lb (2.24 kg) |
Download the full specification sheet (PDF)
Manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ VF 4K 16-Channel NVR (RN701A-62W-AB1)
- ✔ 2TB of storage
- ✔ Network (Ethernet) cable
- ✔ HDMI cable
- ✔ USB mouse
- ✔ Power adapter
Add Cameras
Pair this recorder with Lorex V7 PoE cameras to use License Plate Recognition:
Not sure which camera is compatible? Contact us before ordering. Browse our V Series systems and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
Are cameras included?
No. This is a recorder only. Cameras are sold separately.
Is storage included?
Yes. It includes 2TB of storage and has two SATA bays, so you can expand storage up to 10TB per bay.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
Which cameras work with it?
It records up to 16 compatible IP cameras from 1MP up to 8MP (4K). Compatibility varies by camera model, so contact us before ordering if you are not sure. Lorex V7 cameras support License Plate Recognition with this recorder.
How do I power my cameras?
The recorder has 16 built-in PoE ports (180 W max total output, shared across all connected cameras, 25.5 W max per port), so a single network cable can carry both power and video to each PoE camera. Network cable for the camera runs is not included. Please check each camera’s power requirements before installing.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with a network cable, HDMI cable, USB mouse and power adapter.
Compare V Series Recorders
| VC 8-Channel | VF 16-Channel (this recorder) |
|
|---|---|---|
| Channels | 8 | 16 |
| Built-In PoE Ports | 8 | 16 |
| Storage Included | 1TB | 2TB |
| Storage Bays | 1 (up to 10TB) | 2 (up to 10TB each) |
| AI Detection | People & vehicles | People, vehicles, faces & license plates |
| Best for | Homes and small businesses | Larger properties and businesses |
