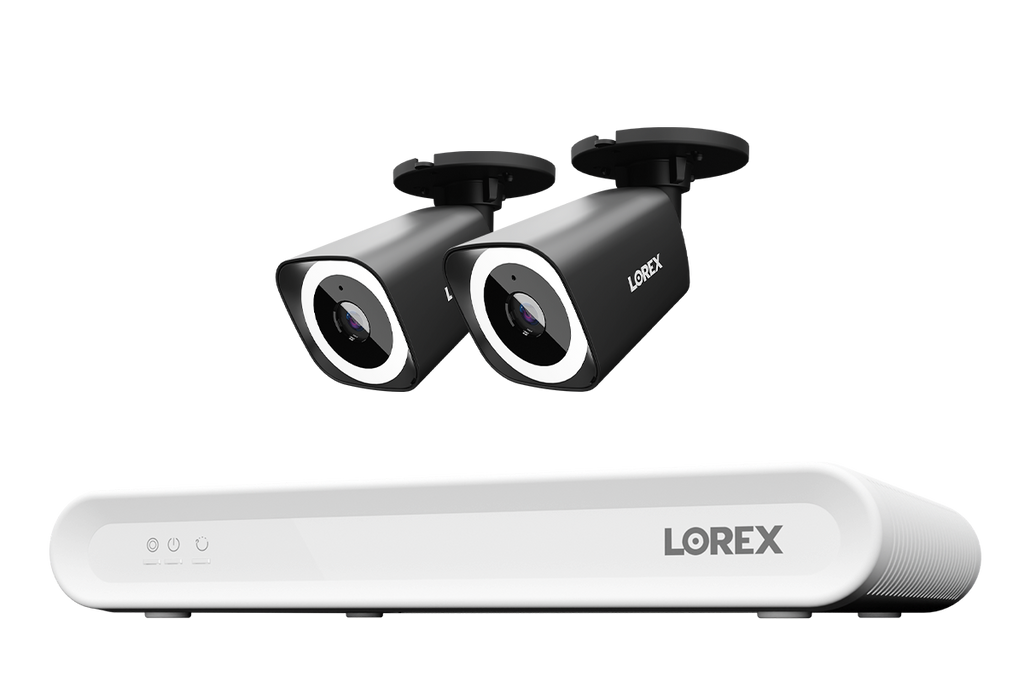

Lorex Connect V Series 4K 8-Channel Wired NVR System with V3 4K PoE Bullet Cameras - 1TB
Lorex Connect V Series 4K 8-Channel Wired NVR System with V3 4K PoE Bullet Cameras - 1TB
- Resolution4K
- StyleBullet
- Channels8-Channel
- Storage1TB
Best for: driveways, yards, building exteriors and perimeters at homes and small businesses that want 4K video with a built-in security light and siren. A complete 8-channel bundle with 1TB of storage (up to 8 cameras).
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
Keep your home or business secure with this 8-channel NVR system and 4K weatherproof bullet IP (PoE) cameras. With AI detection, proactive deterrence, and expandable local storage, you’ll have reliable protection without any monthly fees. Includes 1TB of storage, expandable up to 10TB. Cables not included.
Key Features
Continuous 4K recording

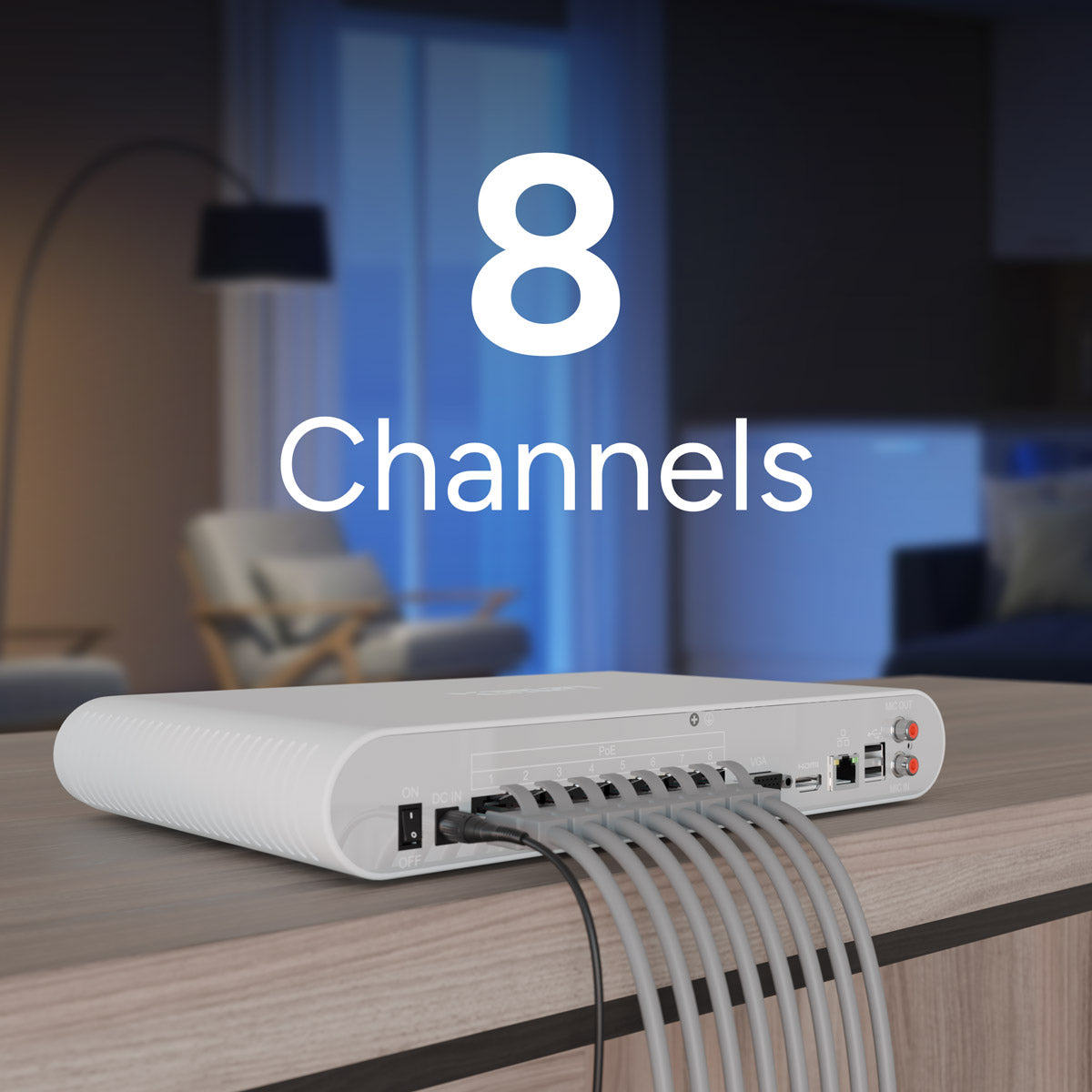

Connect up to 8 cameras
8 built-in PoE ports
4K video at 15 FPS
Color Night Vision plus IR in total darkness
White security light and siren
Person and vehicle detection
1TB included, expandable up to 10TB
Remote viewing and alerts with Lorex Connect
Specifications
Recorder: VC 4K 8-Channel NVR
| Channels | 8 |
| Video Resolution | 4K (3840 × 2160) display; records cameras from 1MP up to 8MP (4K) |
| Built-In PoE | 8 PoE ports, 57 W max total PoE output (25.5 W max per port) |
| Storage | 1TB included · 1 SATA bay · expandable up to 10TB |
| Video Output | 1 × HDMI (up to 4K) · 1 × VGA (up to 1080p) |
| AI Analytics | Person & vehicle detection, perimeter intrusion, line crossing, AI motion detection, Smart Search |
| Mobile App | Lorex Connect (iOS and Android) |
| Network | 1 × RJ45 (10/100) |
| Cooling | Fanless QuietTek design |
| Operating Temperature | 14°F to 131°F (-10°C to 55°C) |
| Power Consumption | 6 W (excluding hard drive) |
| Dimensions & Weight | 12.24 × 7.57 × 1.91 in (310.90 × 192.28 × 48.51 mm) · 2.60 lb (1.18 kg) |
Cameras: V3 4K PoE Bullet Cameras
| Resolution | 4K (8MP) at 15 FPS |
| Lens | Fixed 2.8 mm, F1.6 |
| Field of View | 126° diagonal |
| Night Vision | Color Night Vision with IR, up to 82 ft (25 m) in total darkness |
| Active Deterrence | White security light and siren |
| Audio | 2-way talk (built-in microphone and speaker) |
| AI Analytics | Person & vehicle detection |
| Local Storage | microSD slot, up to 256GB (independent recording, accessed through a web browser) |

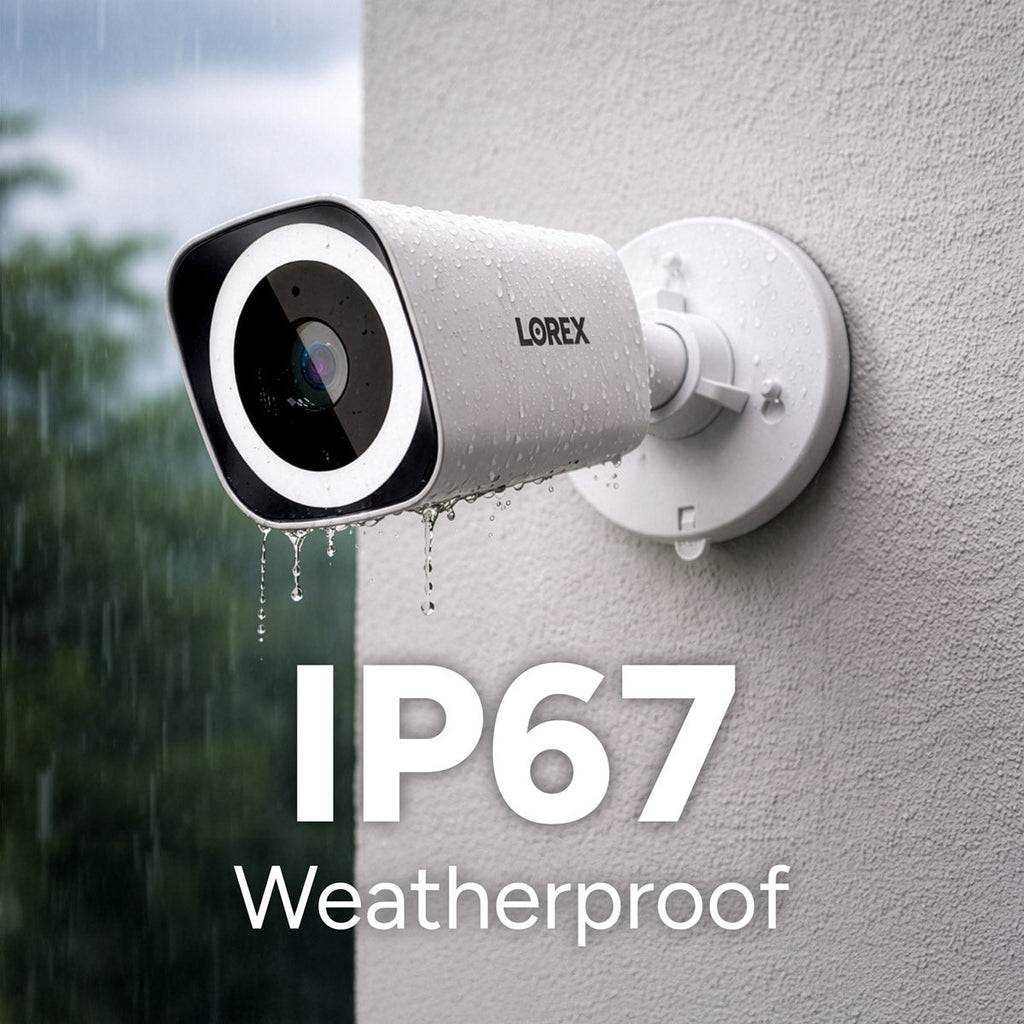

| Weather Rating | IP67 |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Power | PoE (802.3af) or 12 V DC, 9.5 W max |
| Dimensions & Weight | 3.9 × 6.7 × 3.9 in (100.57 × 170.80 × 100.57 mm) · 1.20 lb (0.54 kg) |
Download the recorder specification sheet (PDF)
Download the camera specification sheet (PDF)
Recorder manuals, downloads and support articles (Lorex)
Camera manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ VC 4K 8-Channel NVR (RN301A-81W-AB1)
- ✔ 1TB of storage
- ✔ V3 4K PoE Bullet Cameras (CN301A-1BB-AB1 Black / CN301A-1BW-AB1 White), quantity and color per your selected options
- ✔ Network (Ethernet) cable, HDMI cable, USB mouse and power adapter for the recorder
- ✔ Mounting hardware and a weather-resistant cap for each camera
Expand Your System
The recorder in this system supports up to 8 cameras, so you can add more Lorex V Series PoE cameras whenever you need them:
Need a different system? Browse our V Series systems and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
What is included in this system?
The 8-channel recorder with 1TB of storage, the number of cameras you select, and the mounting hardware and weather-resistant cap for each camera. See What’s Included above for the full list.
Are network cables included?
Only one network cable (with the recorder) is included. Each PoE camera needs its own network cable run back to the recorder, so plan your cable lengths and buy cable separately before ordering.
Is storage included?
Yes. It includes 1TB of storage and has one SATA bay, so you can expand storage up to 10TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
How are the cameras powered?
The recorder has 8 built-in PoE ports (57 W max total output, shared across all connected cameras), so a single network cable carries both power and video to each camera. Please check each camera’s power requirements before installing.
Can I add more cameras later?
Yes. The recorder supports up to 8 cameras in total. You can add any compatible Lorex V Series PoE camera, see Expand Your System above.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with a network cable, HDMI cable, USB mouse and power adapter, and each camera ships with its own mounting hardware.
Compare V Series 8-Channel Systems
| V5 Turret | V5 Bullet | V3 Turret | V3 Bullet (this system) |
|
|---|---|---|---|---|
| Resolution | 4K | 4K | 4K | 4K |
| Night Vision | Color Night Vision plus IR | Color Night Vision plus IR | Color Night Vision plus IR | Color Night Vision plus IR |
| Active Deterrence | Color security lighting and siren | Color security lighting and siren | White security light and siren | White security light and siren |
| AI Detection | People, vehicles, faces & key incidents | People, vehicles, faces & key incidents | People & vehicles | People & vehicles |
| Storage | 1TB (up to 10TB) | 1TB (up to 10TB) | 1TB (up to 10TB) | 1TB (up to 10TB) |
| Best for | Entrances and covered areas | Exteriors and perimeters | Entrances and covered areas | Exteriors and perimeters |
