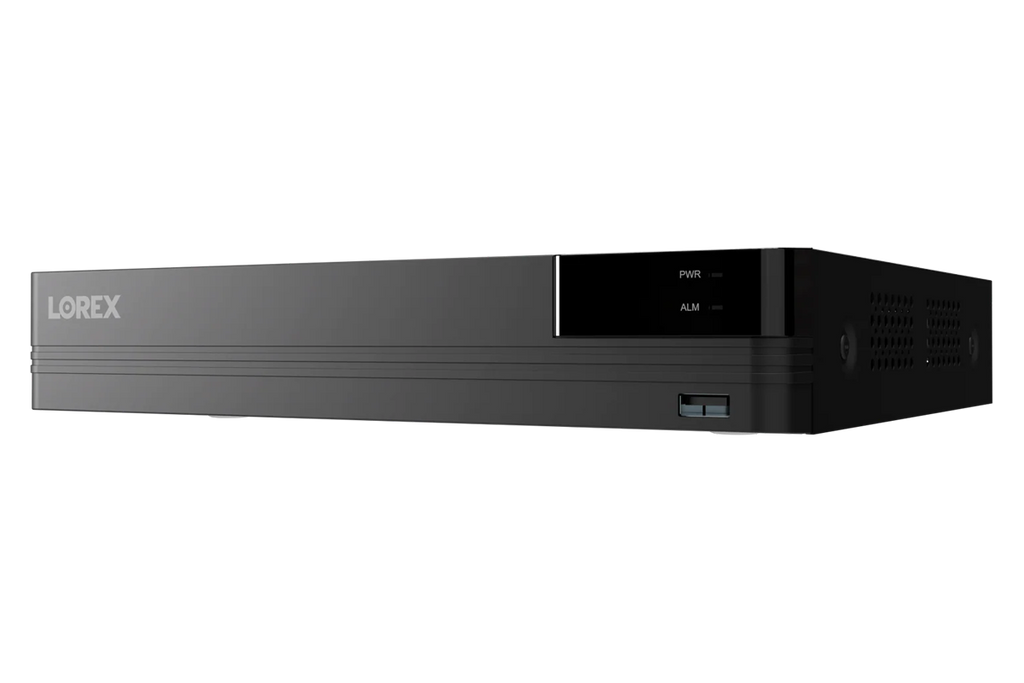

Lorex Connect UA 4K 8-Channel PoE Network Video Recorder
Lorex Connect UA 4K 8-Channel PoE Network Video Recorder
- Resolution4K
- Channels8-Channel
- Storage2TB
Best for: homes and small businesses that want a quiet 4K recorder with 2TB of storage for up to 8 PoE cameras.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
This high-performance 8-channel 4K NVR unifies your security system with future-ready smart AI monitoring and expandable local storage, designed to grow with your needs while keeping you protected today. Includes 2TB of storage and 8 built-in PoE ports. No monthly fees.
Key Features
Continuous 4K recording
Connect up to 8 cameras
8 built-in PoE ports
2TB included, expandable up to 10TB
Face, person and vehicle detection
Smart Search locates key activity
Arrange camera layouts and sequences
Remote viewing and alerts with Lorex Connect
Fanless QuietTek operation
Specifications
| Channels | 8 |
| Video Resolution | Up to 4K Ultra HD (3840 × 2160) · supports continuous 4K recording |

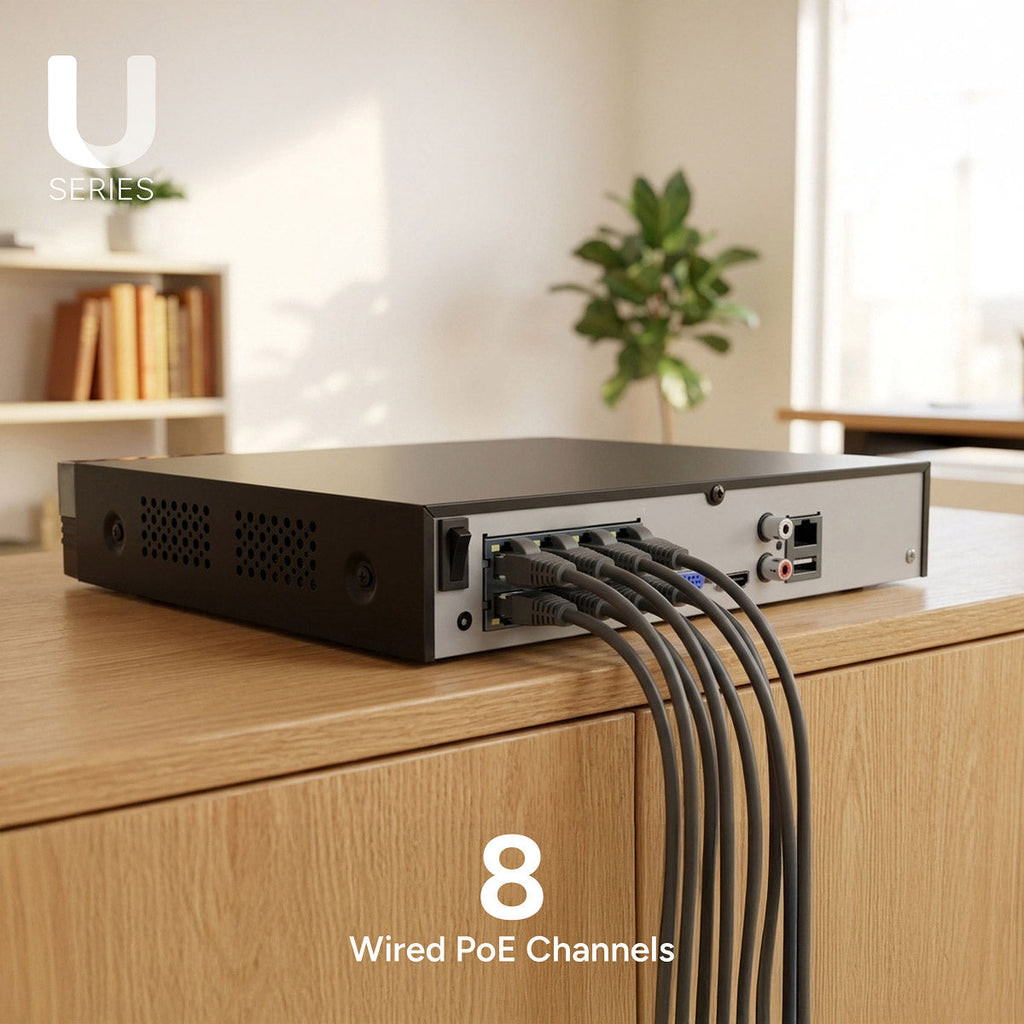

| Built-In PoE | 8 PoE ports, up to 25 W per port, 72 W total |

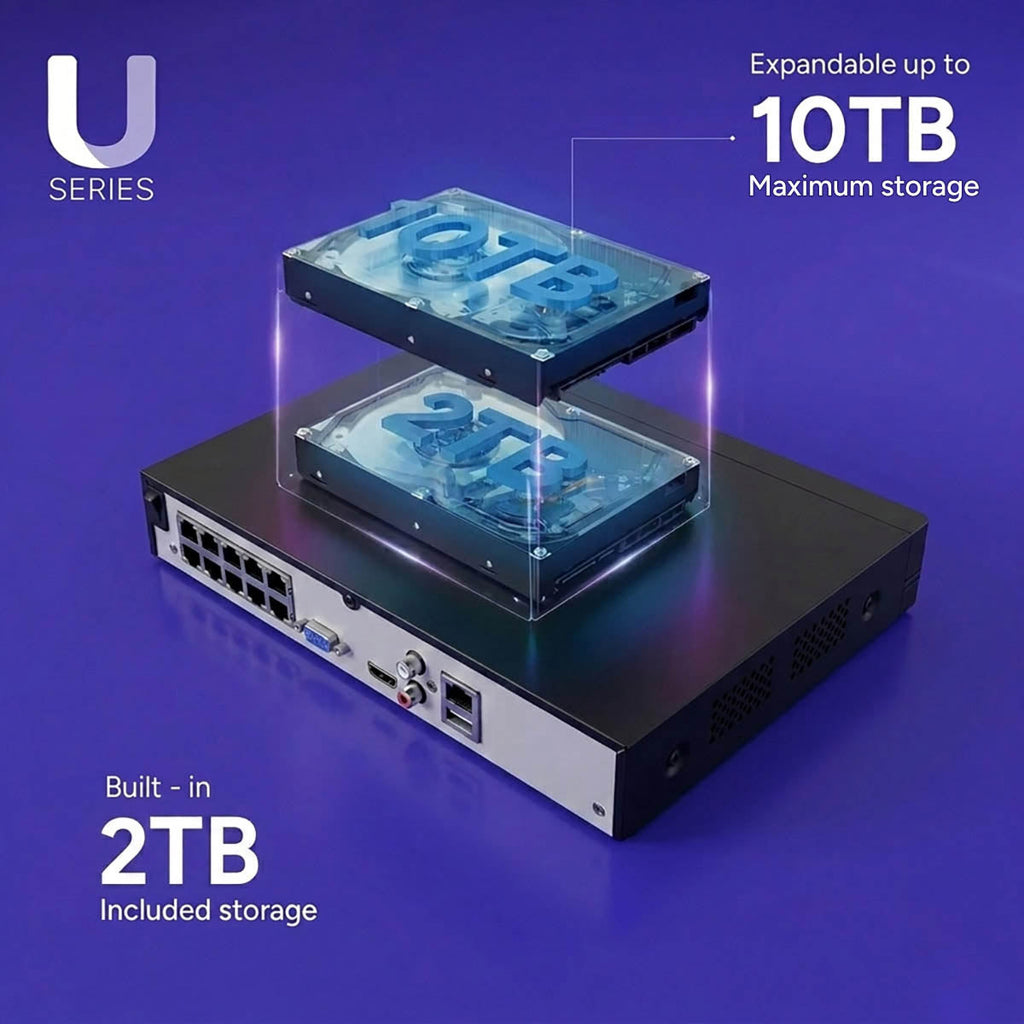

| Storage | 2TB included · 1 bay · expandable up to 10TB |
| Video Output | 1 × HDMI · 1 × VGA |
| AI Analytics | Face, person and vehicle detection, active deterrence, Smart Search |
| Mobile App | Lorex Connect (iOS and Android) |
| Network & USB | 10/100 Base-TX (RJ45) · 2 × USB 2.0 (1 front, 1 back) |
| Cooling | Fanless QuietTek design |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Power Consumption | 15 W (excluding hard drive) · DC 48 V / 1.8 A |
| Dimensions & Weight | 9.84 × 9.06 × 1.77 in (249.94 × 230.12 × 44.96 mm) · 1.81 lb (0.82 kg) |
Download the full specification sheet (PDF)
Manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ UA 4K 8-Channel PoE NVR (RN201A-82B-AB1)
- ✔ 2TB of storage
- ✔ Network (Ethernet) cable
- ✔ HDMI cable
- ✔ USB mouse
- ✔ Power adapter
Add Cameras
Pair this recorder with Lorex U3 PoE cameras:
Prefer a ready-made bundle with cameras included? Browse our U Series systems and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
Are cameras included?
No. This is a recorder only. Cameras are sold separately, or you can choose one of our ready-made U Series systems that include cameras.
Is storage included?
Yes. It includes 2TB of storage and has one drive bay, so you can expand storage up to 10TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
How do I power my cameras?
The recorder has 8 built-in PoE ports (up to 25 W per port, 72 W total, shared across all connected cameras), so a single network cable can carry both power and video to each PoE camera. Network cable for the camera runs is not included. Please check each camera’s power requirements before installing.
Can I record in 4K?
Yes. The recorder supports continuous 4K recording and displays up to 4K Ultra HD. To record in 4K, pair it with 4K (8MP) cameras, such as the Lorex U3 4K PoE cameras.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with a network cable, HDMI cable, USB mouse and power adapter.
Compare U3 Cameras
| U3 4K Turret | U3 4K Bullet | U3 2K+ Turret | U3 2K+ Bullet | |
|---|---|---|---|---|
| Resolution | 4K (8MP) at 20 FPS | 4K (8MP) at 20 FPS | 2K+ (5MP) at 25 FPS | 2K+ (5MP) at 25 FPS |
| Night Vision | Color Night Vision plus long-range IR | Color Night Vision plus long-range IR | Color Night Vision plus long-range IR | Color Night Vision plus long-range IR |
| Active Deterrence | Red and blue lights | Red and blue lights | Red and blue lights | Red and blue lights |
| AI Detection | People & vehicles | People & vehicles | People & vehicles | People & vehicles |
| Weather Rating | IP67 | IP67 | IP67 | IP67 |
| Best for | Entrances and covered areas | Exteriors and perimeters | Entrances and covered areas | Exteriors and perimeters |
