Lorex Connect U Series 4K 8-Channel Wired NVR System with U3 2K+ PoE Turret Cameras - 2TB
Lorex Connect U Series 4K 8-Channel Wired NVR System with U3 2K+ PoE Turret Cameras - 2TB
- Resolution2K
- StyleTurret
- Channels8-Channel
- Storage2TB
Best for: entrances, porches, hallways and covered areas at homes and small businesses that want sharp 2K+ video with red and blue deterrence lights. A complete 8-channel bundle with 2TB of storage (up to 8 cameras).
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy

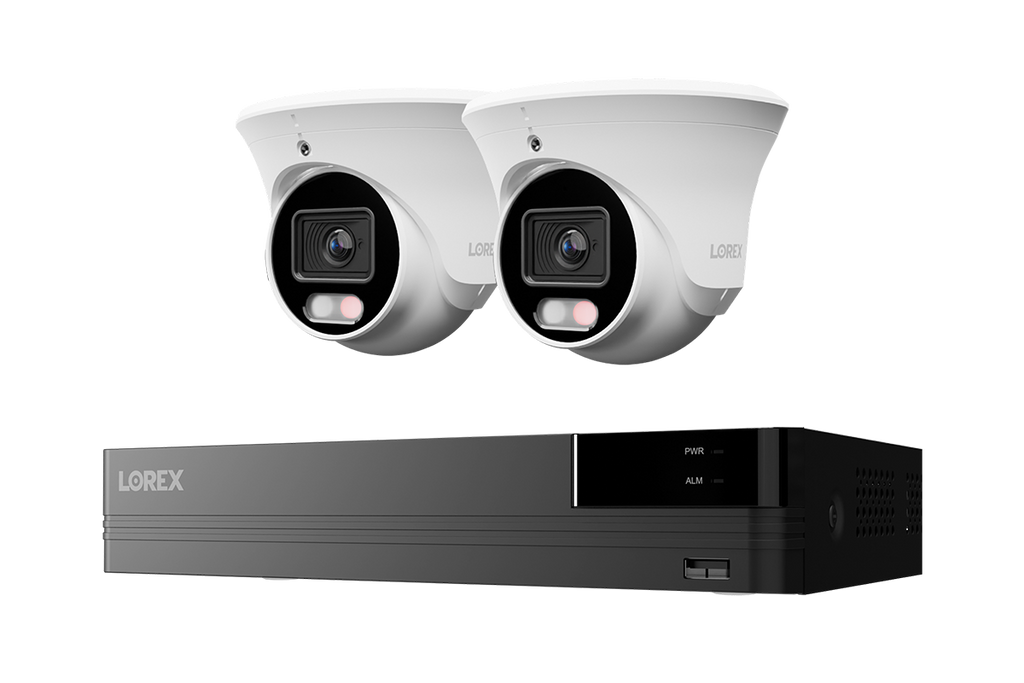

A complete U Series bundle: an 8-channel 4K NVR with 2TB of storage and U3 2K+ (5MP) PoE turret cameras. Color Night Vision, a weatherproof design, red and blue deterrence lights, AI detection of people and vehicles and remote viewing with Lorex Connect help you stay on top of what matters. PoE means a single network cable carries both power and video to each camera. No monthly fees. Cables not included.
Key Features
Continuous 4K recording
Connect up to 8 cameras

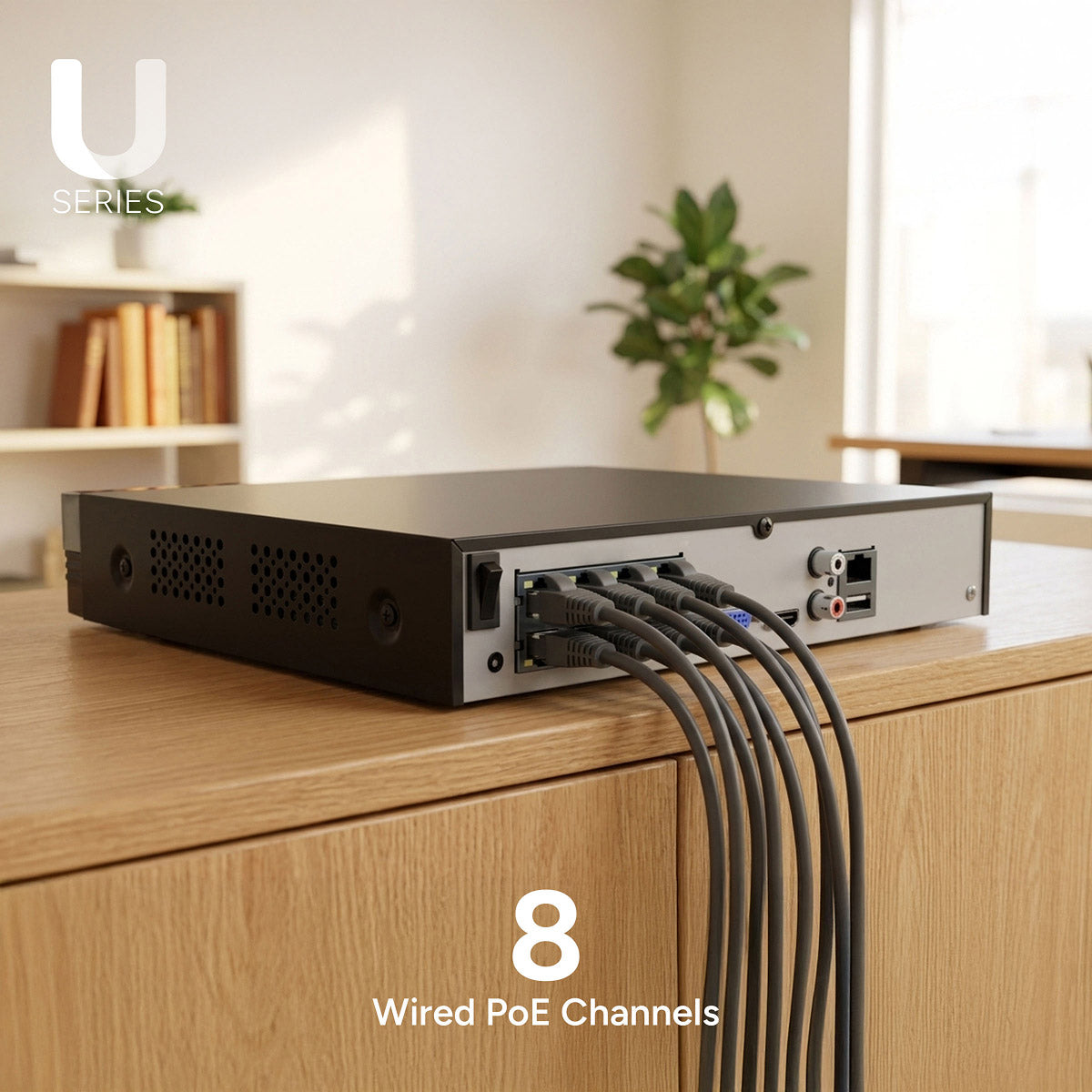

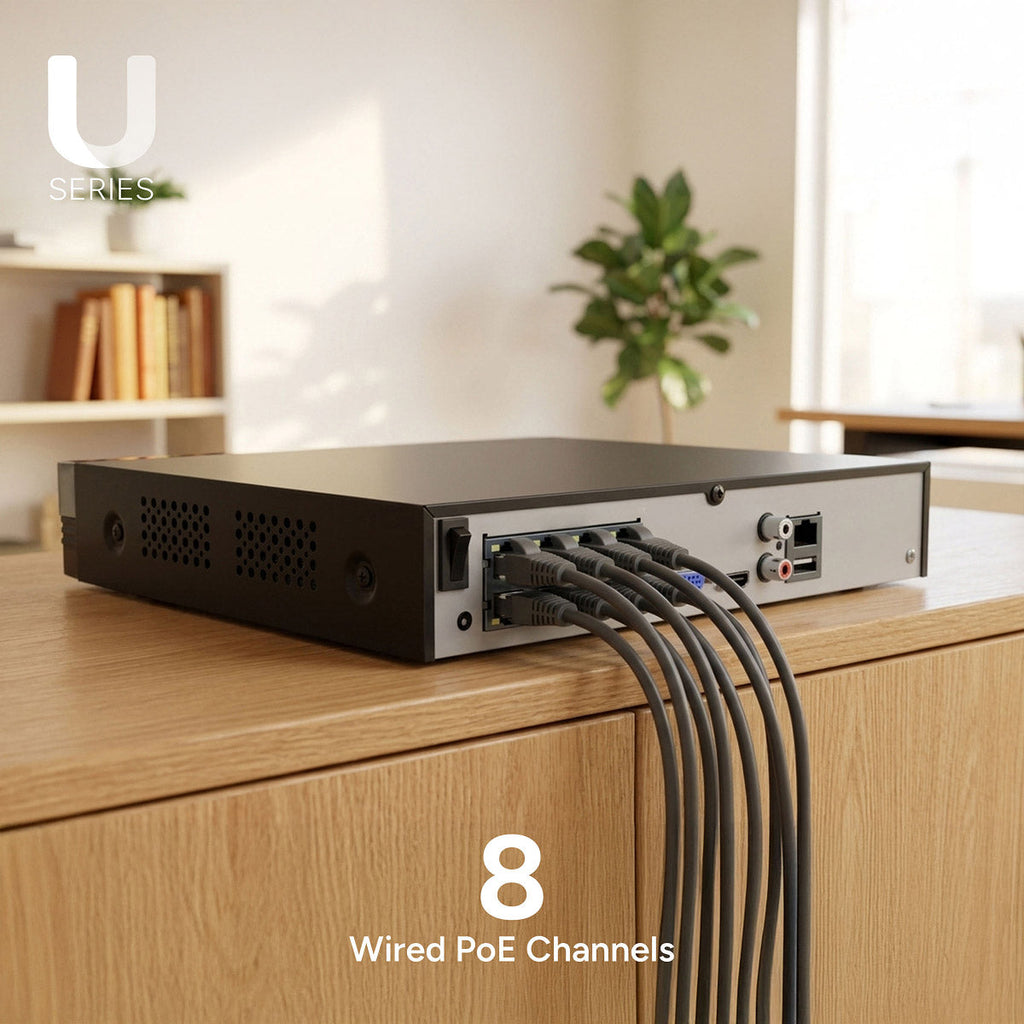

8 built-in PoE ports

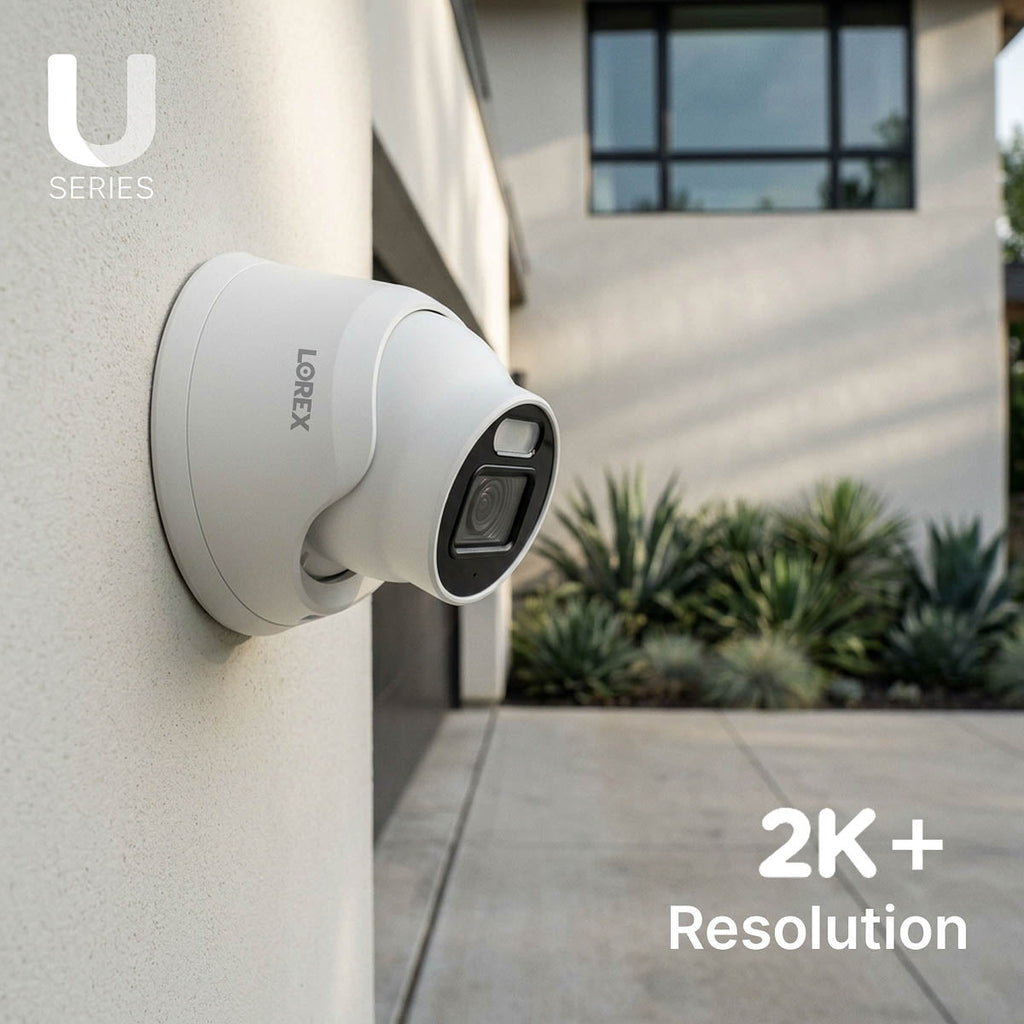

2K+ (5MP) video at 25 FPS

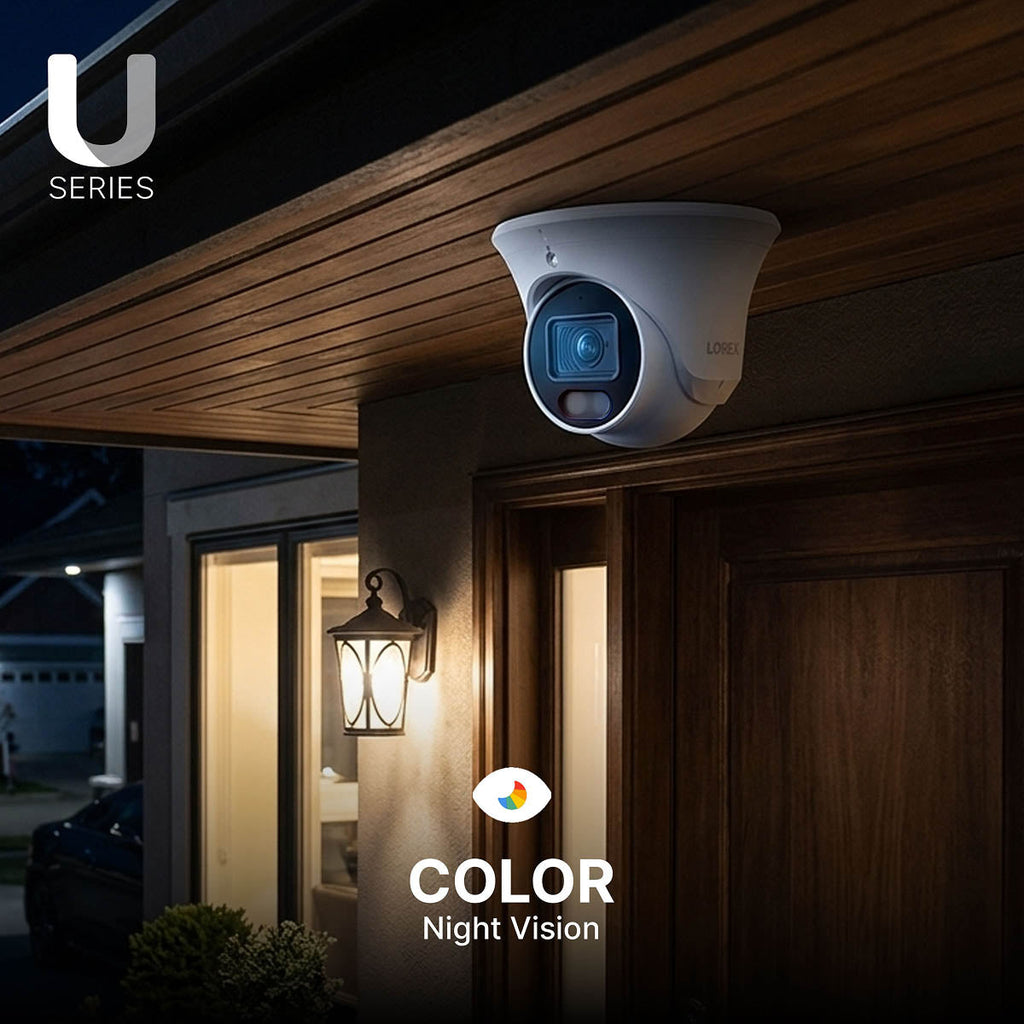

Color Night Vision and long-range IR
High-intensity red and blue lights

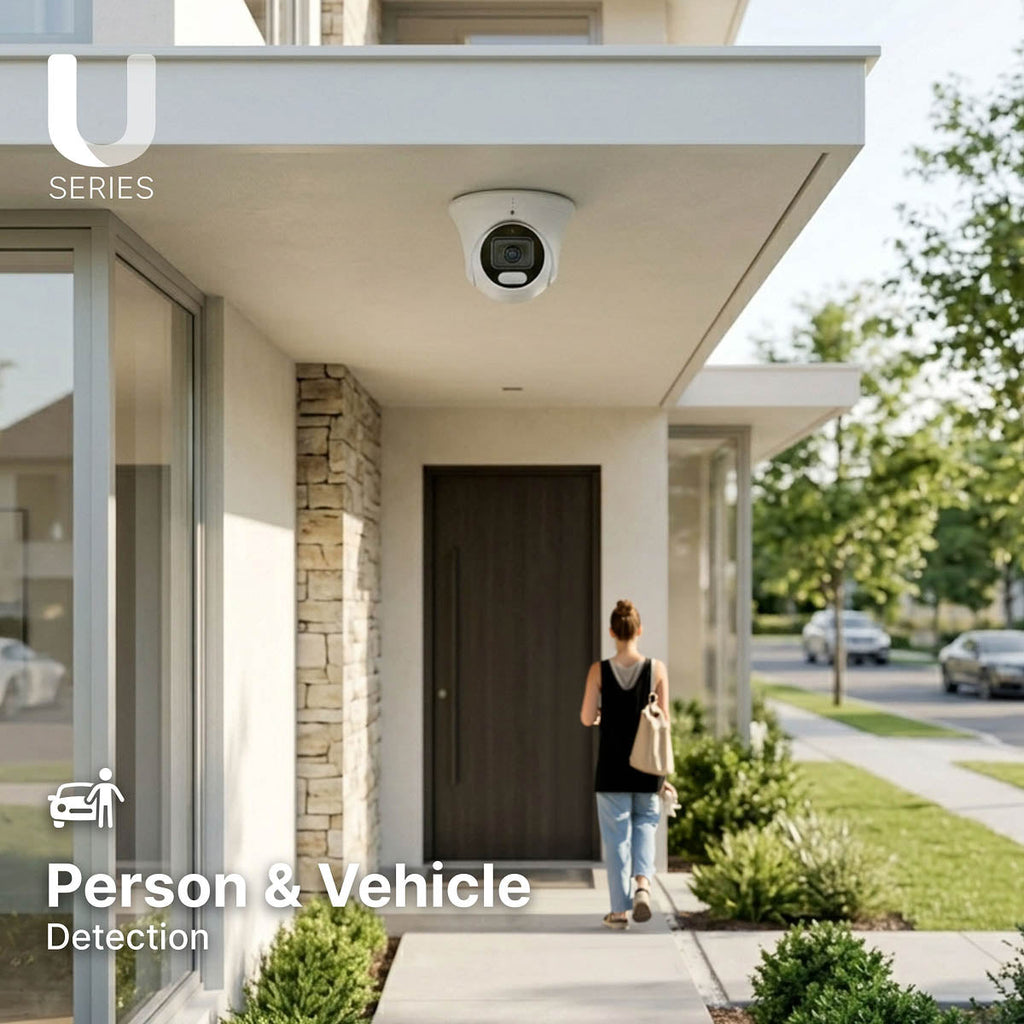

Advanced AI detection of people and vehicles

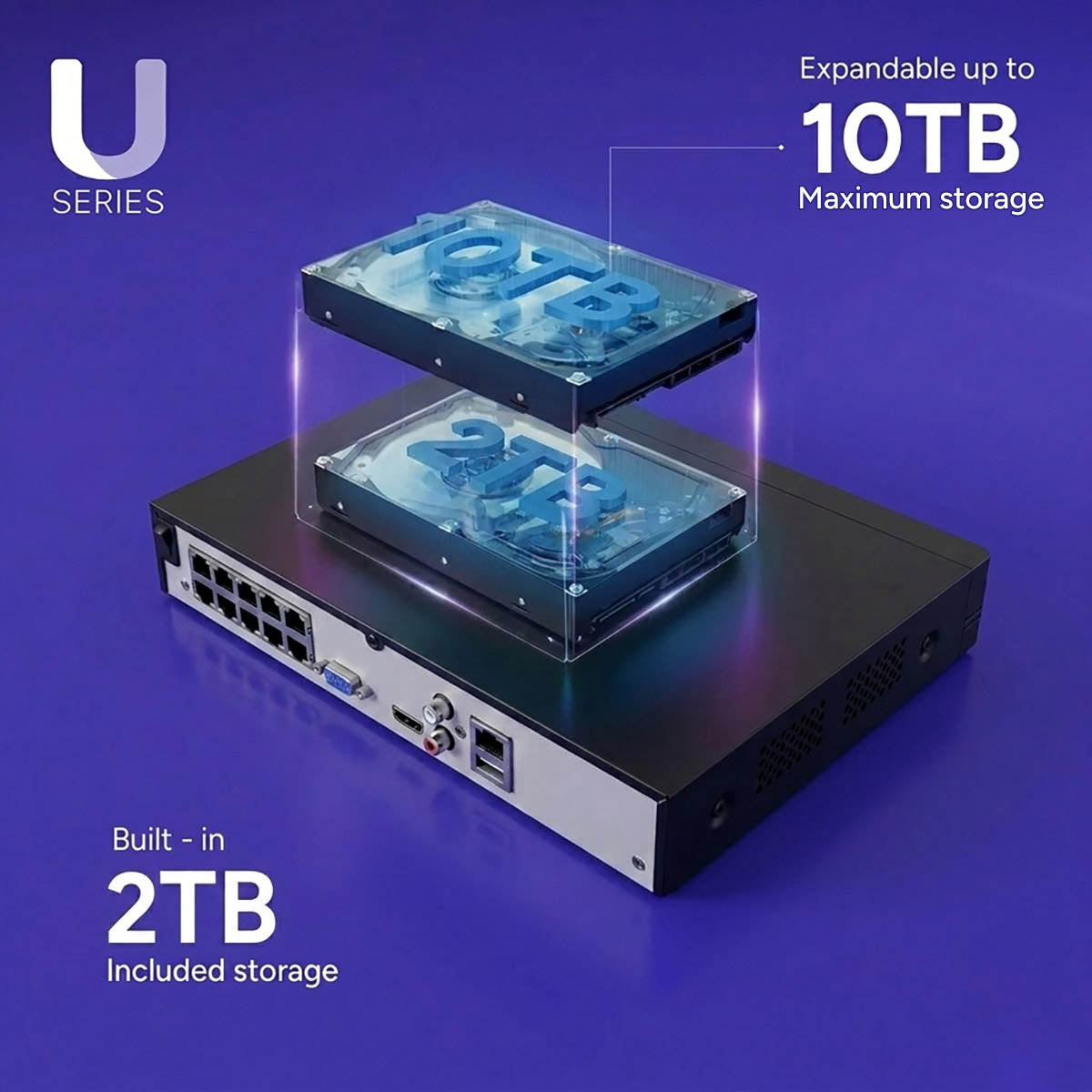

2TB included, expandable up to 10TB
Remote viewing and alerts with Lorex Connect
Specifications
Recorder: UA 4K 8-Channel PoE NVR
| Channels | 8 |
| Video Resolution | Up to 4K Ultra HD (3840 × 2160) · supports continuous 4K recording |
| Built-In PoE | 8 PoE ports, up to 25 W per port, 72 W total |
| Storage | 2TB included · 1 bay · expandable up to 10TB |
| Video Output | 1 × HDMI · 1 × VGA |
| AI Analytics | Face, person and vehicle detection, active deterrence, Smart Search |
| Mobile App | Lorex Connect (iOS and Android) |
| Network & USB | 10/100 Base-TX (RJ45) · 2 × USB 2.0 (1 front, 1 back) |
| Cooling | Fanless QuietTek design |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Power Consumption | 15 W (excluding hard drive) · DC 48 V / 1.8 A |
| Dimensions & Weight | 9.84 × 9.06 × 1.77 in (249.94 × 230.12 × 44.96 mm) · 1.81 lb (0.82 kg) |
Cameras: U3 2K+ PoE Turret Cameras
| Resolution | 2K+ (5MP, 2880 × 1620) at 25 FPS |
| Image Sensor | 1/2.7" CMOS |
| Lens | Fixed 2.8 mm, F1.6 |
| Field of View | 132° diagonal · 110° horizontal · 59° vertical |
| Night Vision | Color Night Vision · IR up to 98 ft (30 m) in total darkness |
| Active Deterrence | Red and blue lights |
| Audio | Built-in microphone (audio recording disabled by default) |
| AI Analytics | Smart motion detection, line crossing, area intrusion, region entrance, region exiting, face detection |
| Video Compression | H.264 / H.265 |
| Local Storage | microSD slot, up to 512GB (independent recording; not uploaded to a compatible NVR or the cloud for mobile app viewing) |
| Network | RJ45 (10/100BASE-T) · ONVIF supported |
| Power | PoE (802.3af) or 12 V DC, 6 W max |

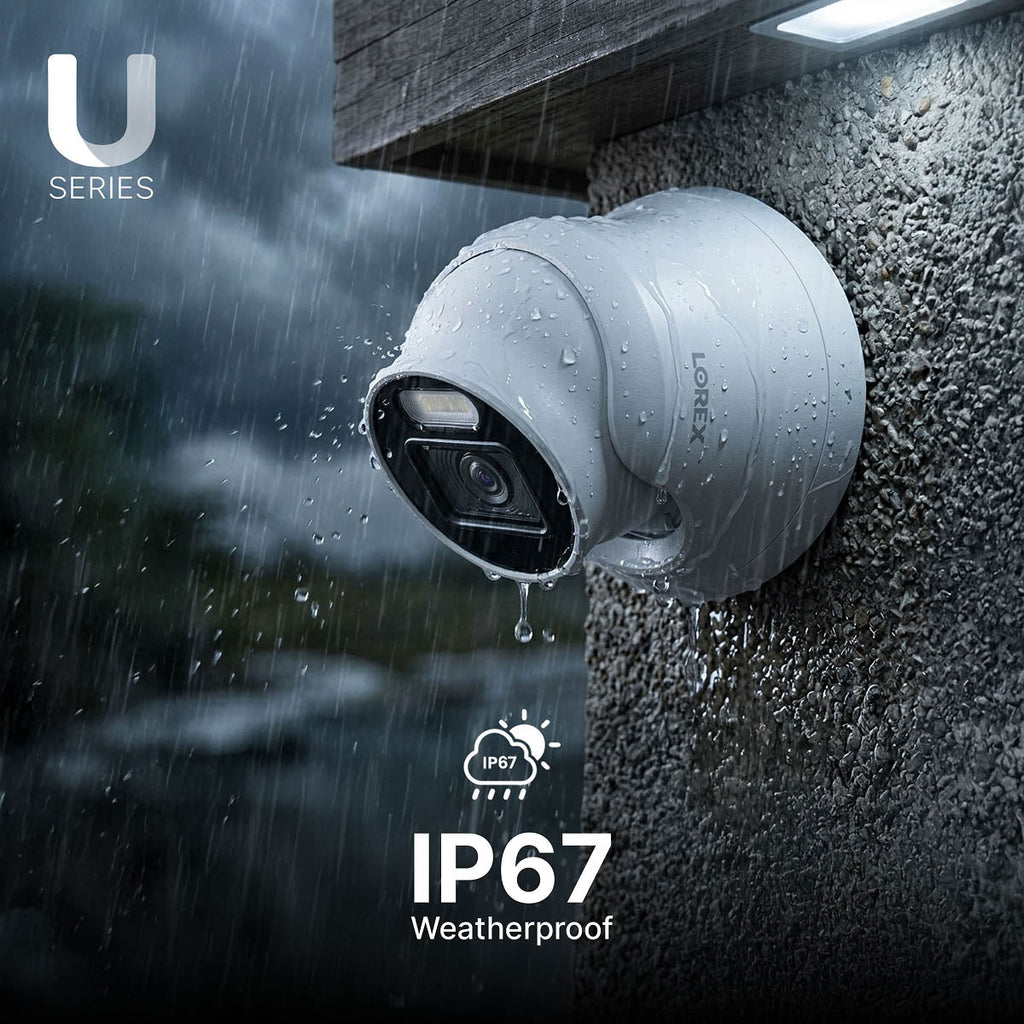

| Weather Rating | IP67 (indoor / outdoor use) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Dimensions & Weight | 4.07 × 4.07 × 3.24 in (103.38 × 103.38 × 82.30 mm) · 0.89 lb (0.40 kg) |
Download the recorder specification sheet (PDF)
Download the camera specification sheet (PDF)
Recorder manuals, downloads and support articles (Lorex)
Camera manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ UA 4K 8-Channel PoE NVR (RN201A-82B-AB1)
- ✔ 2TB of storage
- ✔ U3 2K+ PoE Turret Cameras (CN201A-1TW-AB1), quantity per your selected option
- ✔ Network (Ethernet) cable, HDMI cable, USB mouse and power adapter for the recorder
- ✔ Mounting hardware, a weather-resistant cap, an Allen key and an Ethernet extension cable for each camera
Expand Your System
The recorder in this system supports up to 8 cameras, so you can add more Lorex U3 PoE cameras whenever you need them:
Need a different system? Browse our U Series systems and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
What is included in this system?
The 8-channel recorder with 2TB of storage, the number of cameras you select, and the mounting hardware and weather-resistant cap for each camera. See What’s Included above for the full list.
Are network cables included?
Only one network cable (with the recorder) and an Ethernet extension cable for each camera are included. Each PoE camera needs its own network cable run back to the recorder, so plan your cable lengths and buy cable separately before ordering.
Is storage included?
Yes. It includes 2TB of storage and has one drive bay, so you can expand storage up to 10TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
How are the cameras powered?
The recorder has 8 built-in PoE ports (up to 25 W per port, 72 W total, shared across all connected cameras), so a single network cable carries both power and video to each camera. Please check each camera’s power requirements before installing.
Can I add more cameras later?
Yes. The recorder supports up to 8 cameras in total. You can add any compatible Lorex U3 PoE camera, see Expand Your System above.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with a network cable, HDMI cable, USB mouse and power adapter, and each camera ships with its own mounting hardware.
Compare U Series 8-Channel Systems
| U3 4K Turret | U3 4K Bullet | U3 2K+ Turret (this system) |
U3 2K+ Bullet | |
|---|---|---|---|---|
| Camera Resolution | 4K (8MP) | 4K (8MP) | 2K+ (5MP) | 2K+ (5MP) |
| Night Vision | Color Night Vision plus long-range IR | Color Night Vision plus long-range IR | Color Night Vision plus long-range IR | Color Night Vision plus long-range IR |
| Active Deterrence | Red and blue lights | Red and blue lights | Red and blue lights | Red and blue lights |
| AI Detection | People & vehicles | People & vehicles | People & vehicles | People & vehicles |
| Storage | 2TB (up to 10TB) | 2TB (up to 10TB) | 2TB (up to 10TB) | 2TB (up to 10TB) |
| Best for | Entrances and covered areas | Exteriors and perimeters | Entrances and covered areas | Exteriors and perimeters |
