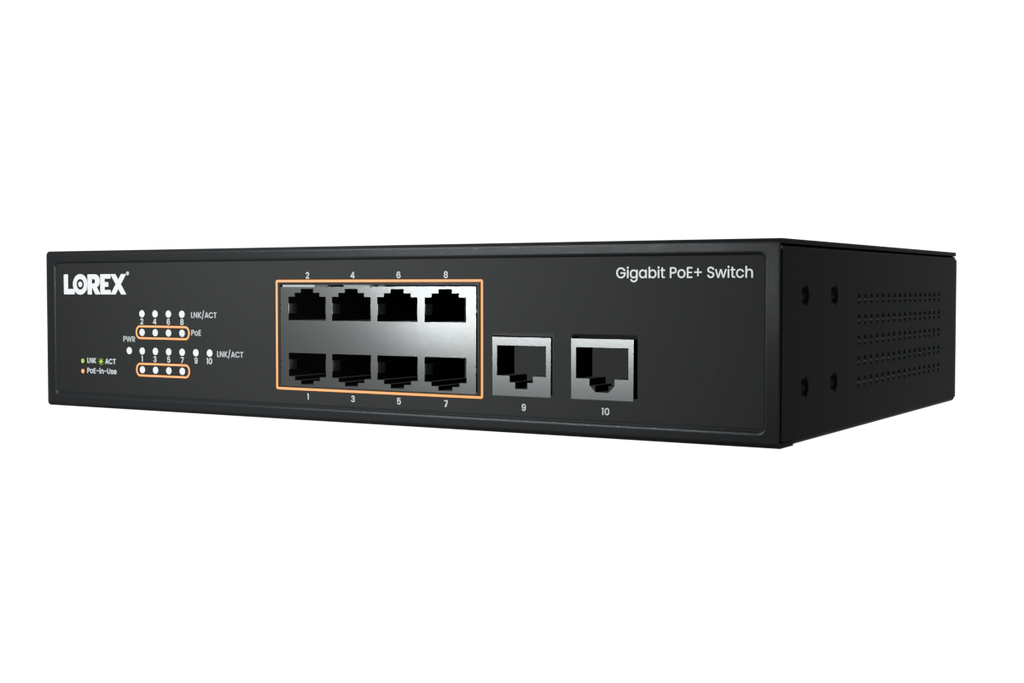

Lorex 8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch with 120W PoE Budget
Lorex 8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch with 120W PoE Budget
Best for: adding PoE ports for NVR cameras with a plug-and-play switch.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy

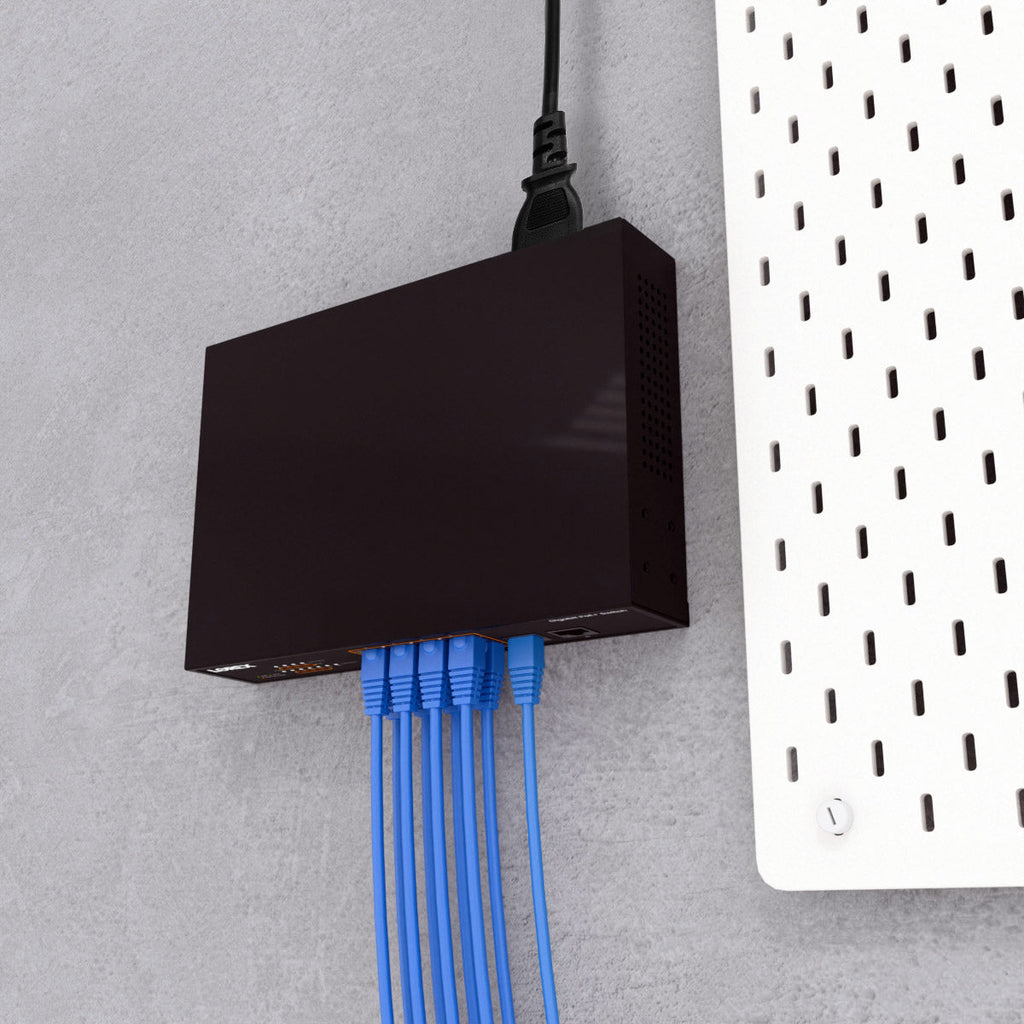

Expand the reach and simplify the cabling of your NVR security camera system with this 8-port Gigabit PoE+ unmanaged switch. There is no setup beyond connecting your PoE cameras. It delivers a 120W total PoE+ budget with up to 30W per port, which Lorex says is enough for up to 8 cameras averaging under 6W, and it extends camera distance up to 100 m (328 ft). Built-in holes allow wall or server-rack mounting.
Key Features
Specifications
| Ports | 10 × 10/100/1000 Mbps RJ45 (PoE on ports 1–8) |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 120W total · up to 30W per port · 130W power supply |
| Range | Up to 100 m (328 ft) per cable run |
| Switching | 20 Gbps bandwidth · 9K-byte jumbo frames |
| Dimensions | 8.66 × 5.90 × 1.73 in (220 × 150 × 44 mm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Specifications as published by Lorex and subject to change.
What's Included
- ✔ AX8 8-port PoE+ switch
- ✔ Power cord
- ✔ 2 × rack-mount brackets
- ✔ 8 × screws
- ✔ 4 × rubber feet
Pair It With
Build out your recorder-based system:
Warranty & Claims
This product is covered by the Lorex manufacturer warranty, counted from your date of purchase. Coverage terms vary by product and some exceptions apply — see the Lorex warranty terms. Please keep your order confirmation as proof of purchase.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions. Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
Does it add channels to my recorder?
No. A PoE switch does not add recorder channels. Your NVR's channel count still applies.
Does it need to be on the same network as my recorder?
Yes. Lorex says the switch must be on the same network as the recorder. Without an NVR, cameras are only reachable on your local network, with no remote app access.
Can it power other devices?
Lorex says it can also power devices such as video phones, VoIP phones, access points and repeaters within its PoE budget.
Will this work with my Lorex system?
Compatibility depends on your camera or recorder model. Check the details on this page, and contact us with your model number before ordering if you are not sure.
Is installation included?
No. Installation is not included and we do not offer installation services.
