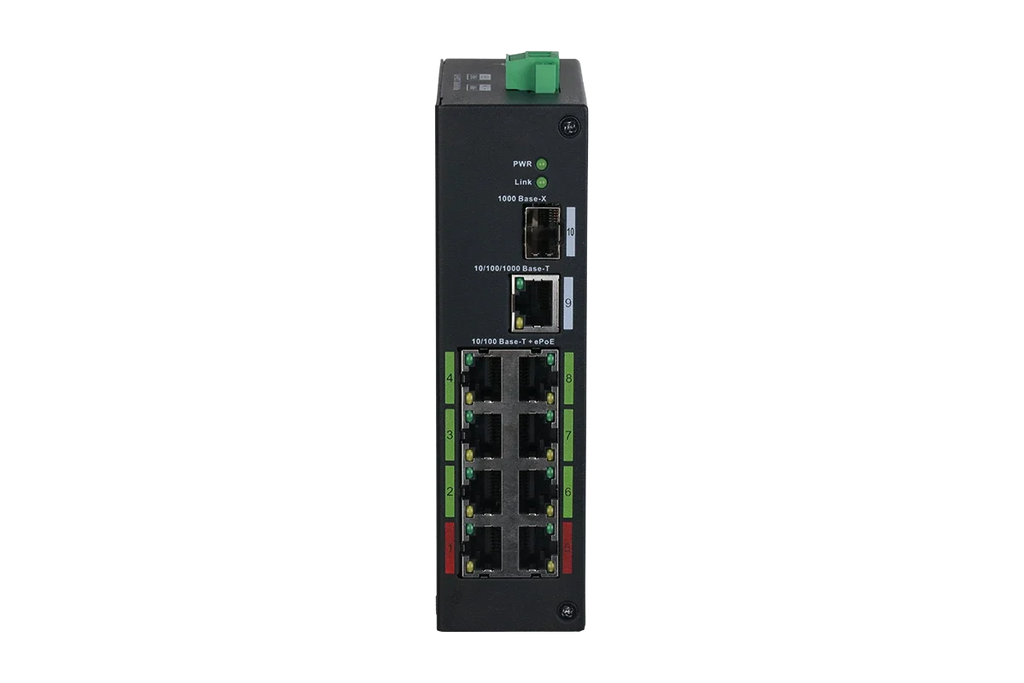

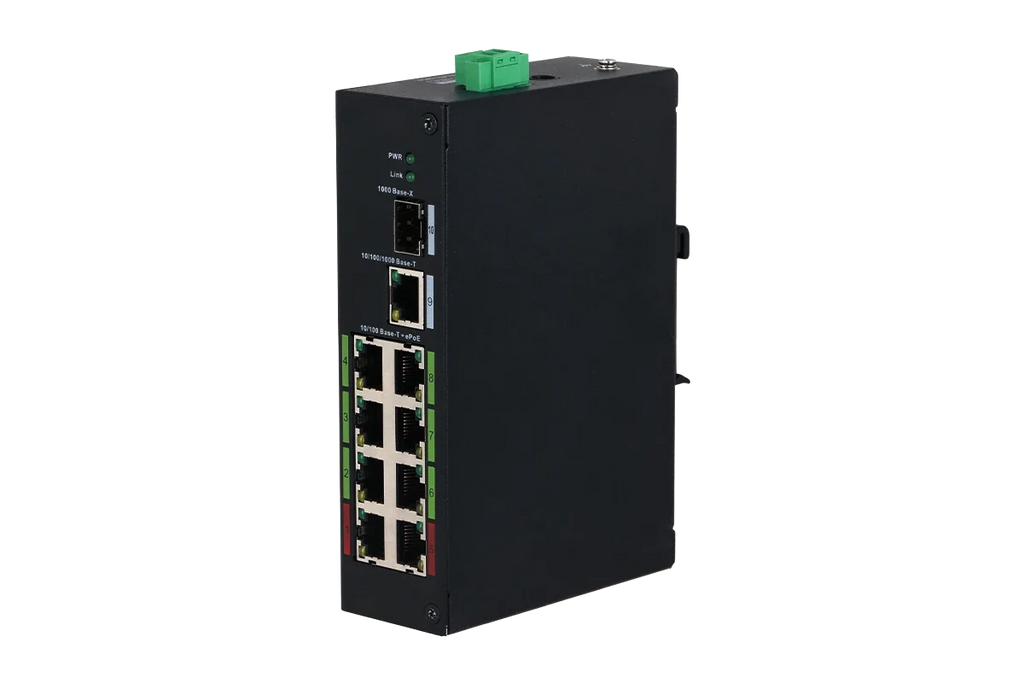

Lorex 8-Port ePoE Switch
Lorex 8-Port ePoE Switch
Best for: reaching cameras up to 800 m away with an industrial-grade ePoE switch.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
Expand the reach and simplify the installation of your NVR security camera system with this 8-port ePoE switch. It provides PoE transmission up to 800 m at 10 Mbps or 300 m at 100 Mbps, supports IEEE 802.3af, 802.3at and 802.3bt plus Hi-PoE devices, and has an industrial wide-temperature design for demanding sites.
Key Features
Specifications
| Ports | 8 × 10/100 Base-T PoE output · 1 × 10/100/1000 Base-T · 1 × 1000 Base-X (fiber) |
| ePoE Range | Up to 800 m at 10 Mbps (E10) · up to 300 m at 100 Mbps (E100) |
| PoE Standards | IEEE 802.3af / 802.3at / 802.3bt, Hi-PoE |
| PoE Budget | 120 W total · ports 1 and 5 up to 90 W · ports 2, 3, 4, 6, 7, 8 up to 30 W each |
| Power Input | 54 VDC, 2.22 A (external adapter) |
| Switching Capacity | 8.8 Gbps |
| Operating Temperature | -30°C to 65°C (industrial wide-temperature design) |
| Mounting | DIN rail (28 mm slide width); mount not included |
| Dimensions & Weight | 5.9 × 3.9 × 1.6 in (150 × 100 × 42 mm) · 1.32 lb (0.6 kg) |
Specifications as published by Lorex and subject to change.
What's Included
- ✔ AEX8-2 8-Port ePoE Switch
- ✔ Power adapter and cable (53 in)
Pair It With
Build out your recorder-based system:
Warranty & Claims
This product is covered by the Lorex manufacturer warranty, counted from your date of purchase. Coverage terms vary by product and some exceptions apply — see the Lorex warranty terms. Please keep your order confirmation as proof of purchase.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions. Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
How do I connect it?
Connect your cameras to the switch, the switch to your router, and the router to your NVR. The switch cannot connect directly to an NVR port.
Does it include a DIN rail mount?
No. It supports DIN rail mounting (28 mm slide width), but the DIN rail mount is not included.
Which recorders is it compatible with?
Lorex says it works with Lorex NVRs that appear on its compatibility list. Contact us with your recorder model before ordering.
Is installation included?
No. Installation is not included and we do not offer installation services.
