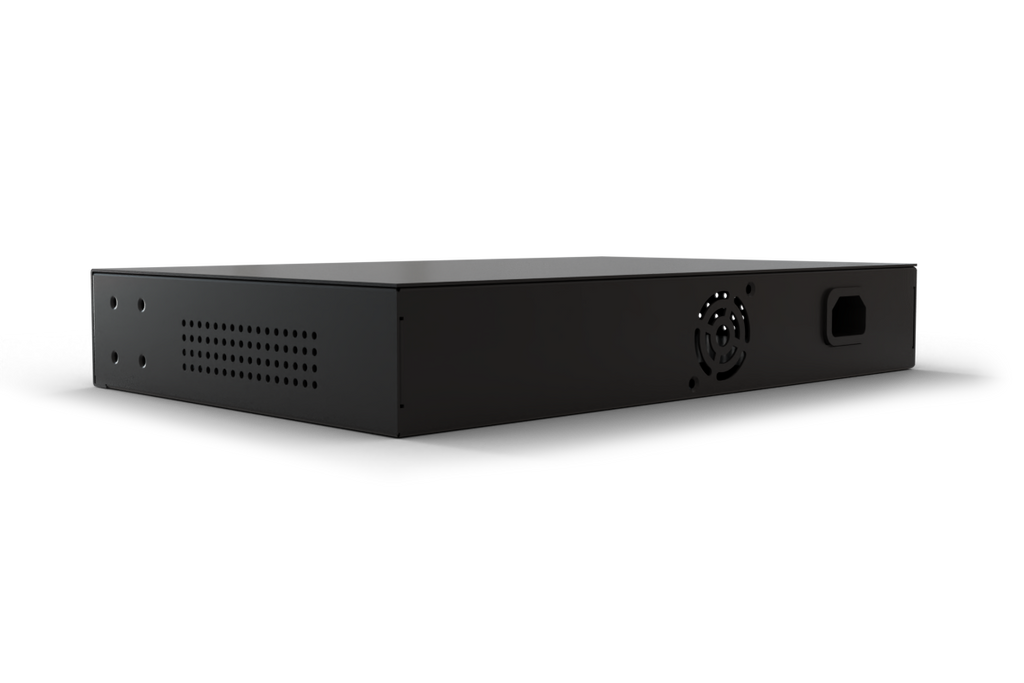

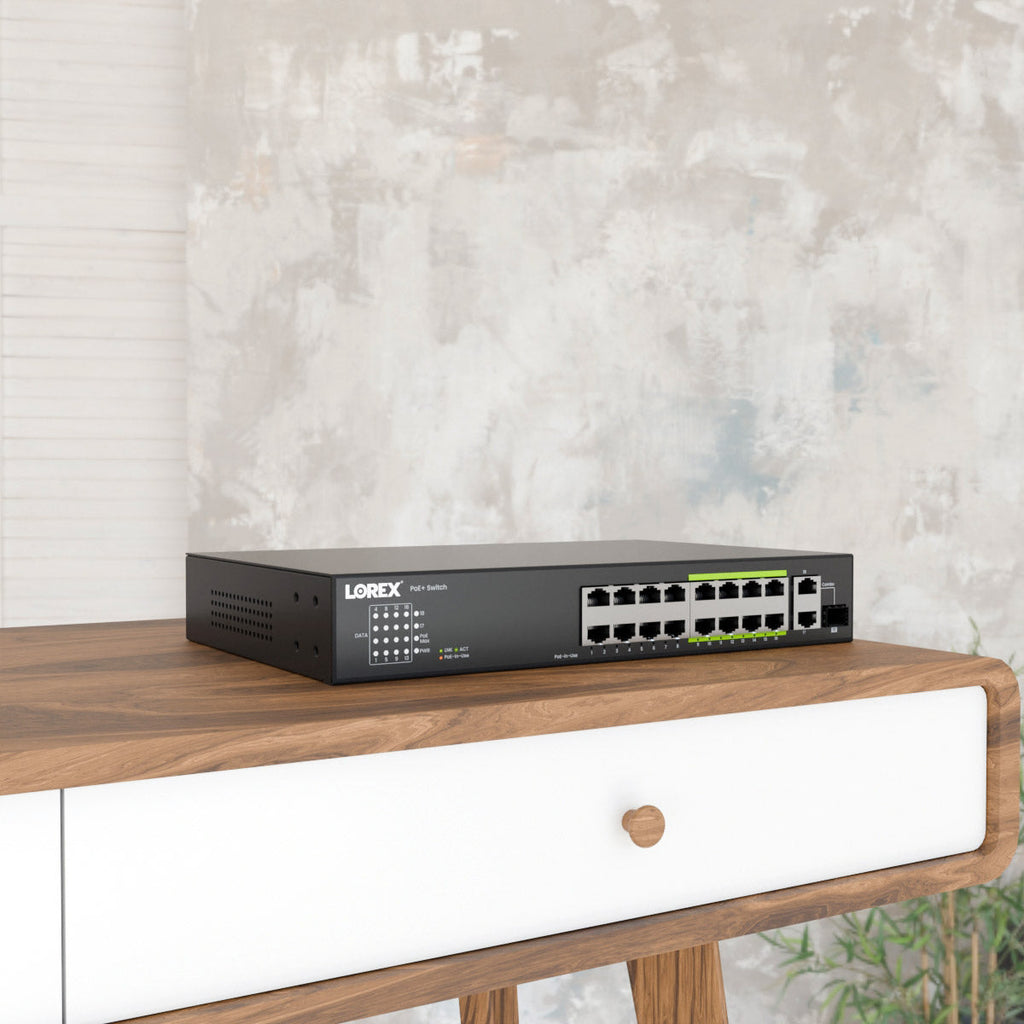

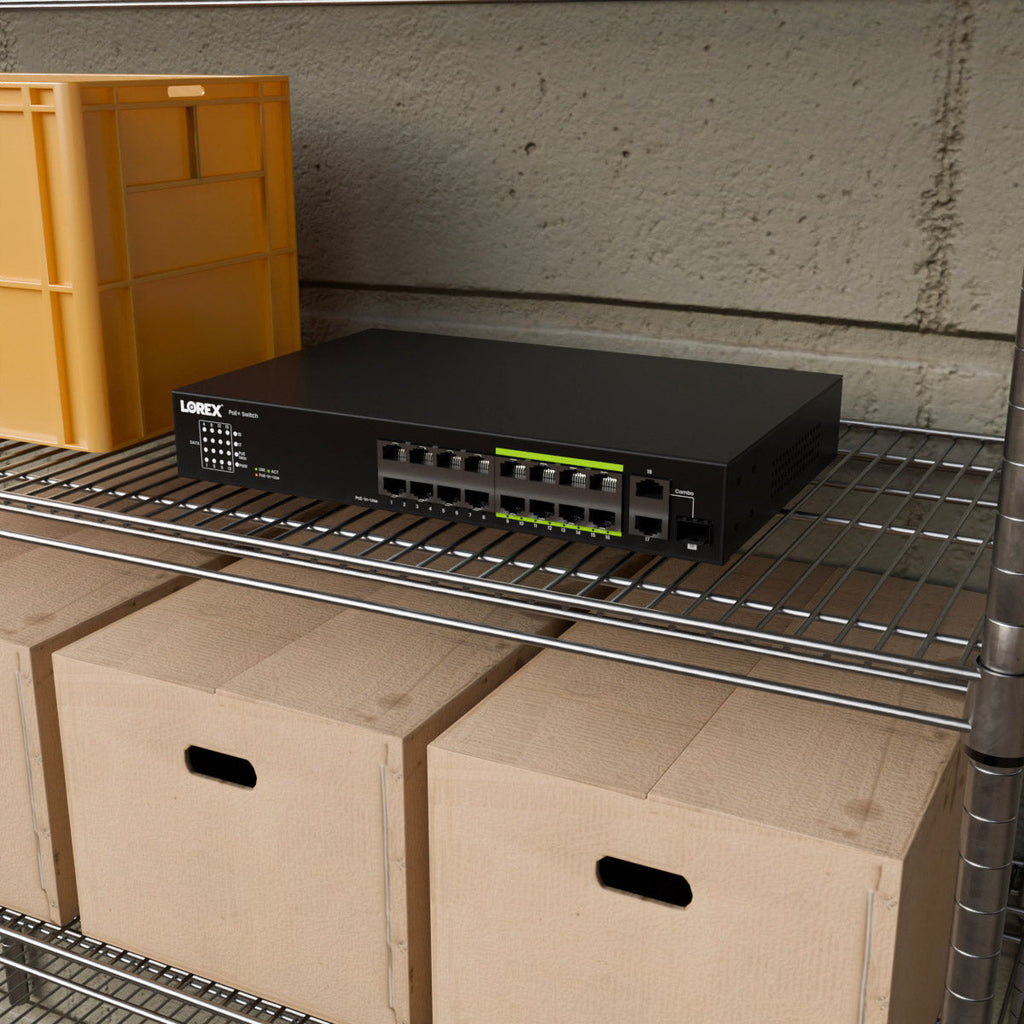

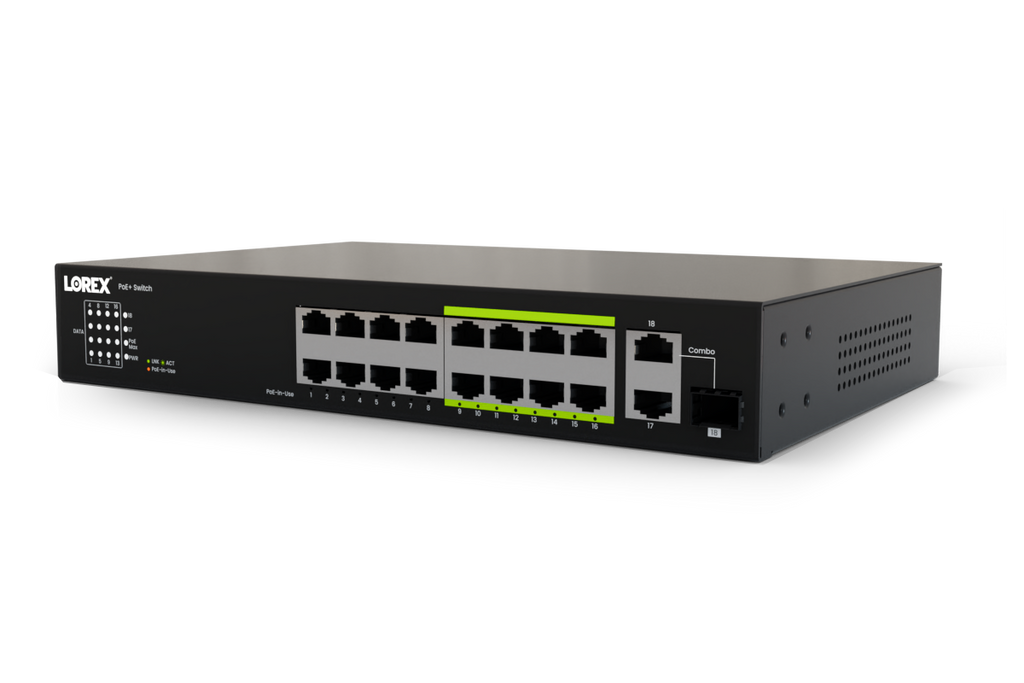

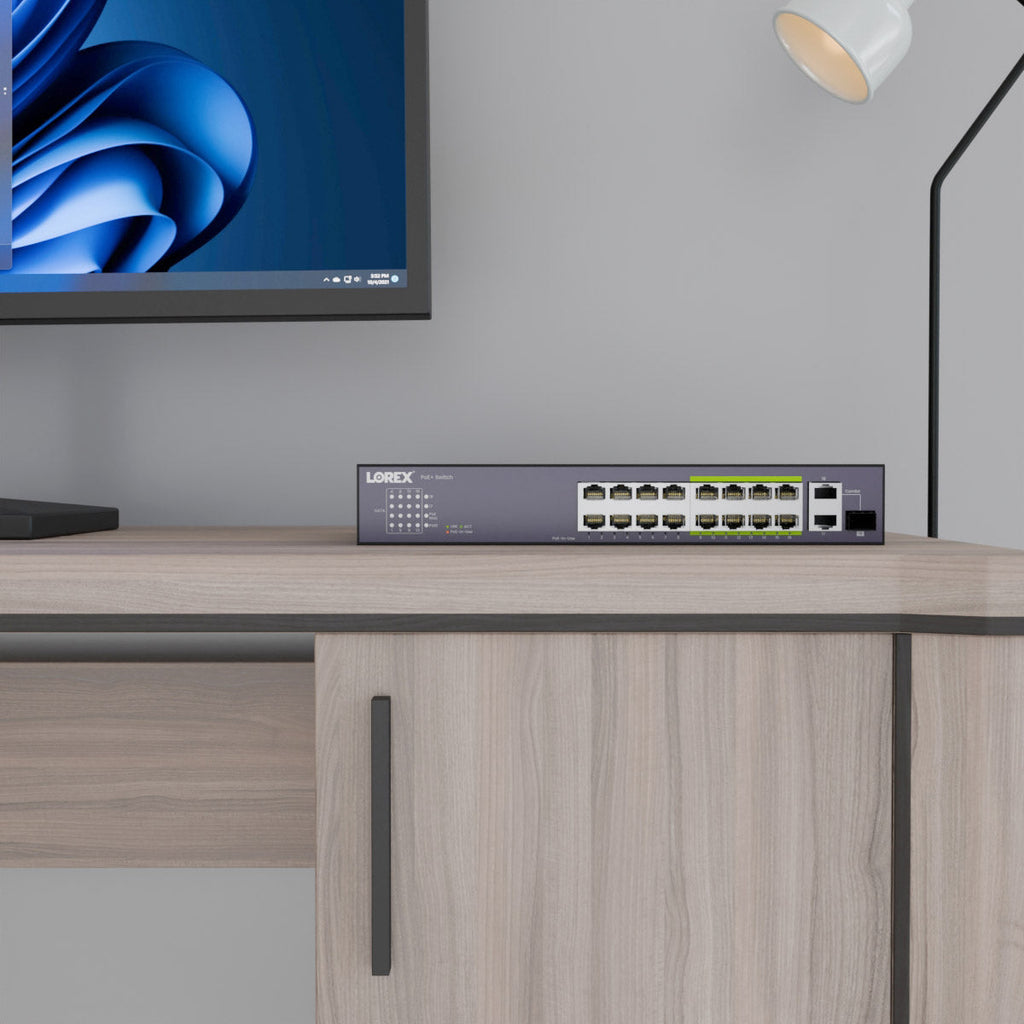

Lorex 16-Port Unmanaged Switch (8-port ePoE and 8-port PoE+) and 250W Power Budget
Lorex 16-Port Unmanaged Switch (8-port ePoE and 8-port PoE+) and 250W Power Budget
Best for: adding cameras to an NVR system and reaching farther with ePoE.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
Expand the reach and simplify the cabling of your NVR security camera system with this 16-port unmanaged PoE switch. Eight ports are ePoE for long-range transmission and eight are PoE+, all sharing a 250W total PoE budget. An SFP port lets you link it to another switch or network device, and the included rack-mount brackets let you install it in a rack.
Key Features
Specifications
| Ports | 16 × 10/100 Mbps RJ45 · 1 × 1000 Mbps combo (SFP) · 1 × 10/100/1000 Mbps uplink |
| PoE Ports | Ports 1–8 PoE+ · ports 9–16 ePoE |
| PoE Standards | IEEE 802.3af / 802.3at (PoE+) plus Lorex ePoE mode |
| ePoE Range | Ports 9–16: up to 300 m at 100 Mbps (E100) or 600 m at 10 Mbps (E10). ePoE cameras are required for runs over 100 m |
| PoE Budget | 250W total · 30W maximum per port · 260W power supply |
| Switching | 7.2 Gbps bandwidth · 5.36 Mpps forwarding rate · 9K-byte jumbo frames |
| Dimensions | 11.02 × 7.09 × 1.73 in (280 × 180 × 44 mm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Specifications as published by Lorex and subject to change.
What's Included
- ✔ AEX16 16-port PoE switch
- ✔ Power cord
- ✔ 2 × rack-mount brackets
- ✔ 8 × screws
- ✔ 4 × rubber feet (for tabletop use)
- ✔ SFP dust cap
Pair It With
Build out your recorder-based system:
Warranty & Claims
This product is covered by the Lorex manufacturer warranty, counted from your date of purchase. Coverage terms vary by product and some exceptions apply — see the Lorex warranty terms. Please keep your order confirmation as proof of purchase.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions. Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
What is ePoE?
ePoE is Lorex's extended-range PoE mode. On ports 9–16 it can carry PoE up to 300 m at 100 Mbps or 600 m at 10 Mbps. Cable runs over 100 m require ePoE-capable cameras.
Does it add channels to my recorder?
No. A PoE switch extends cable reach and port count, but your recorder's channel limit still applies.
Is it managed?
No. It is an unmanaged switch, so no setup is needed beyond connecting your cables.
Will this work with my Lorex system?
Compatibility depends on your camera or recorder model. Check the details on this page, and contact us with your model number before ordering if you are not sure.
Is installation included?
No. Installation is not included and we do not offer installation services.
