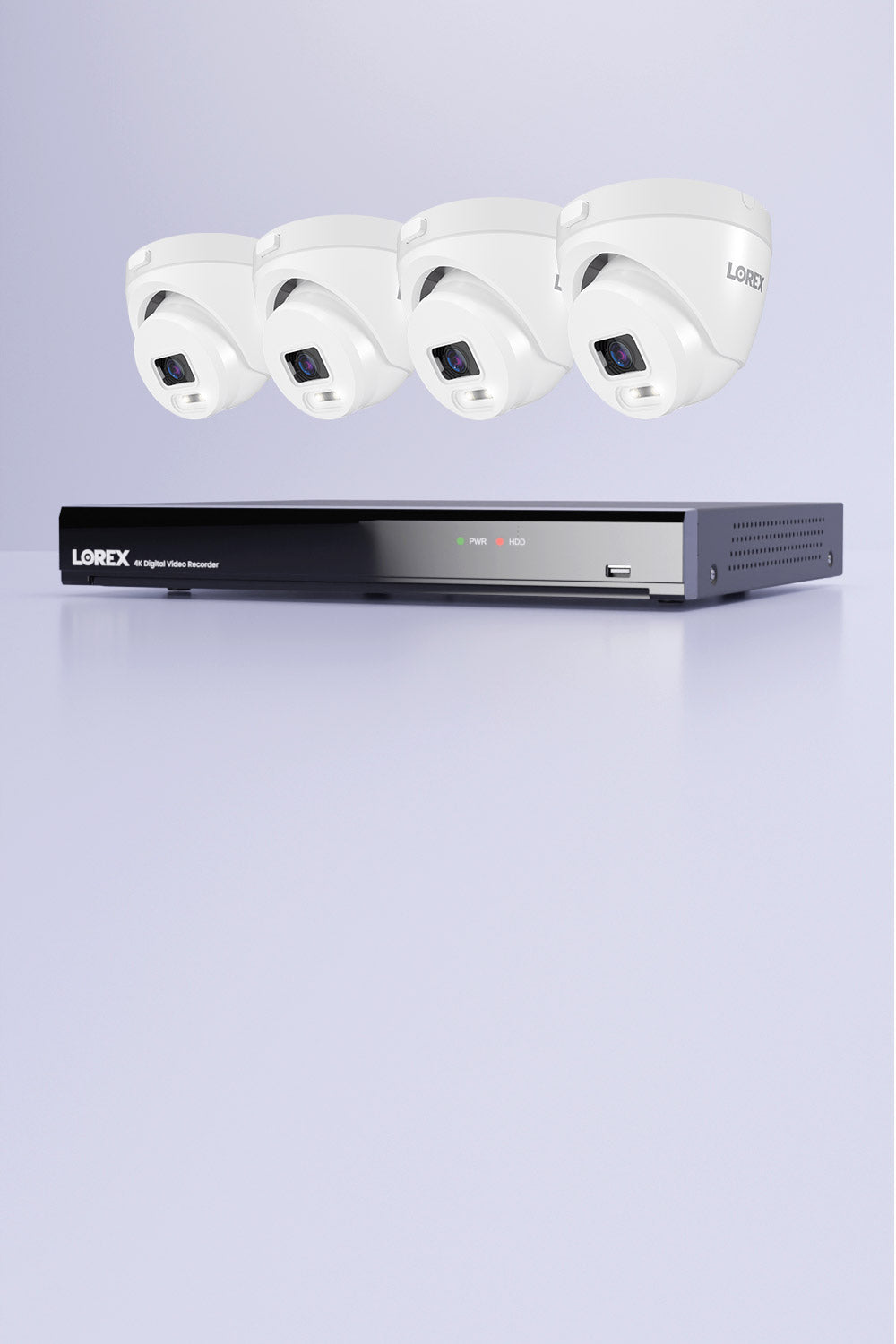

Lorex Connect T Series 4K 8-Channel Wired DVR System with T5 Turret Security Cameras - 1TB
Lorex Connect T Series 4K 8-Channel Wired DVR System with T5 Turret Security Cameras - 1TB
- Resolution4K
- StyleTurret
- Channels8-Channel
- Storage1TB
Best for: homes and small businesses that want a complete 4K DVR system with 1TB of storage for up to 8 analog cameras.
Standard delivery: 4 to 8 business days Express: 2 to 5 business days Estimate from today, counting business days. - Free standard shipping on orders of $150+ Tracking on every order. Shipping & delivery
- No tax added at checkout The price you see is the price you pay.
- Authorized Lorex partner Lorex 1-year limited warranty on every purchase. Warranty & claims
- 7-day return policy Read the return policy
A complete T Series bundle: a 4K 8-channel DVR with a 1TB hard drive and T5 4K analog turret cameras. Color Night Vision, IP66 weatherproof cameras, an ultra-wide 131° field of view, deterrence LEDs and AI detection of people and vehicles help you stay on top of what matters. QuietTek technology keeps the recorder quiet. A 60 ft BNC/DC cable and power adapter are included with each camera. No monthly fees.
Key Features

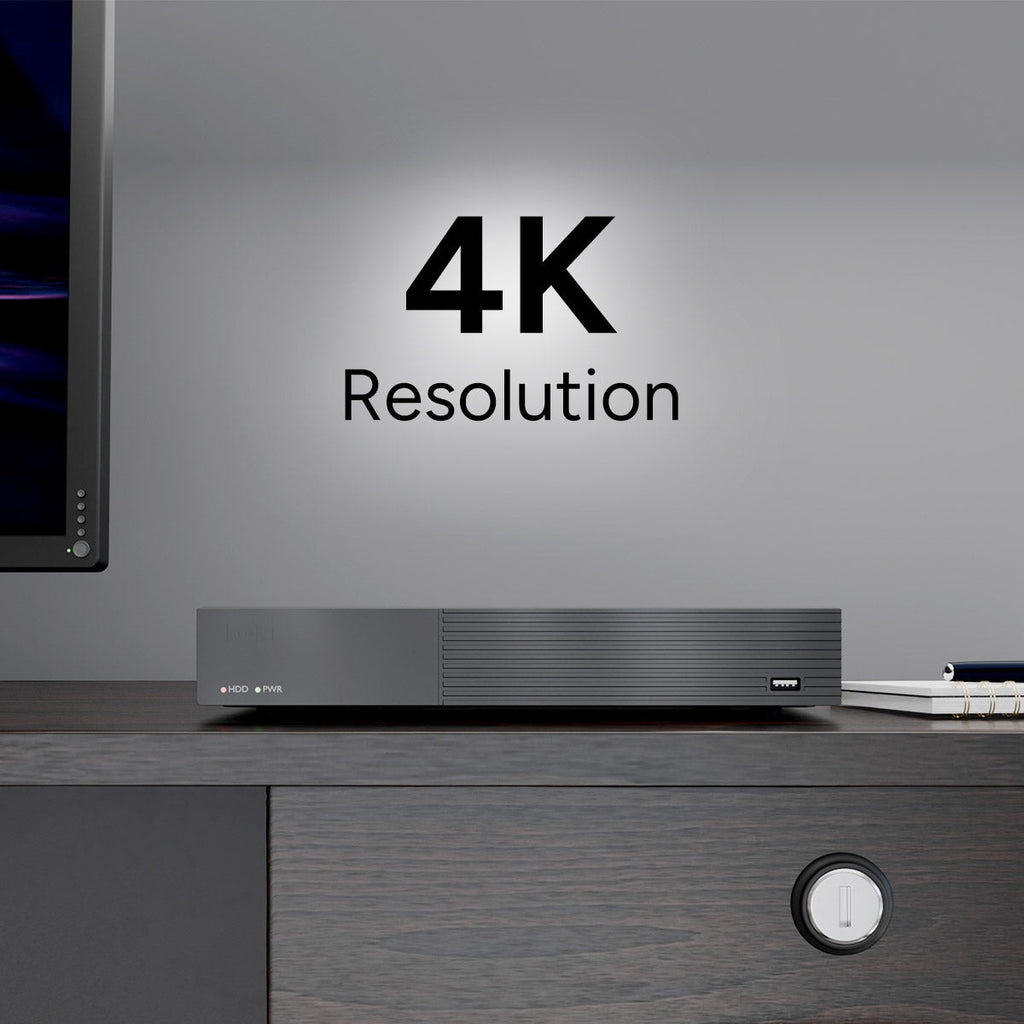

Record video in 4K resolution

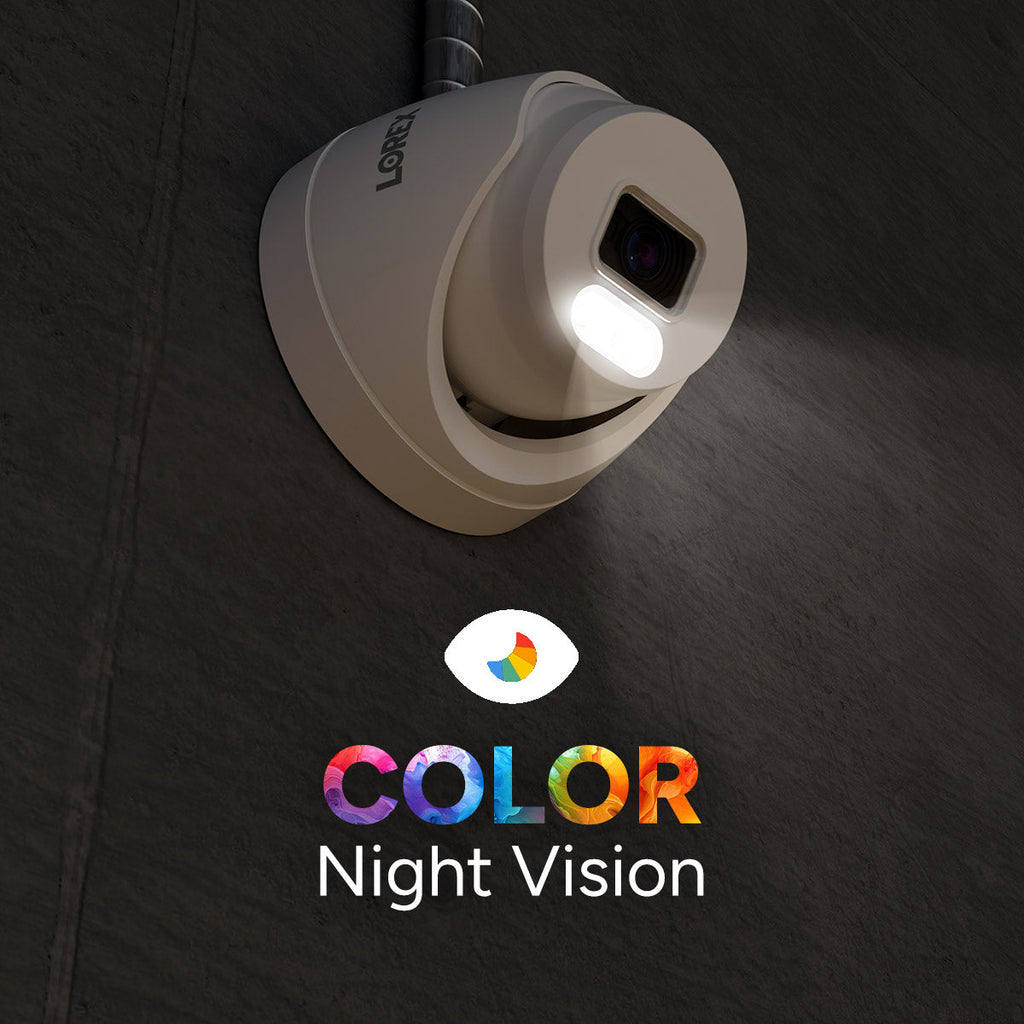

Color Night Vision for enhanced detail after dark

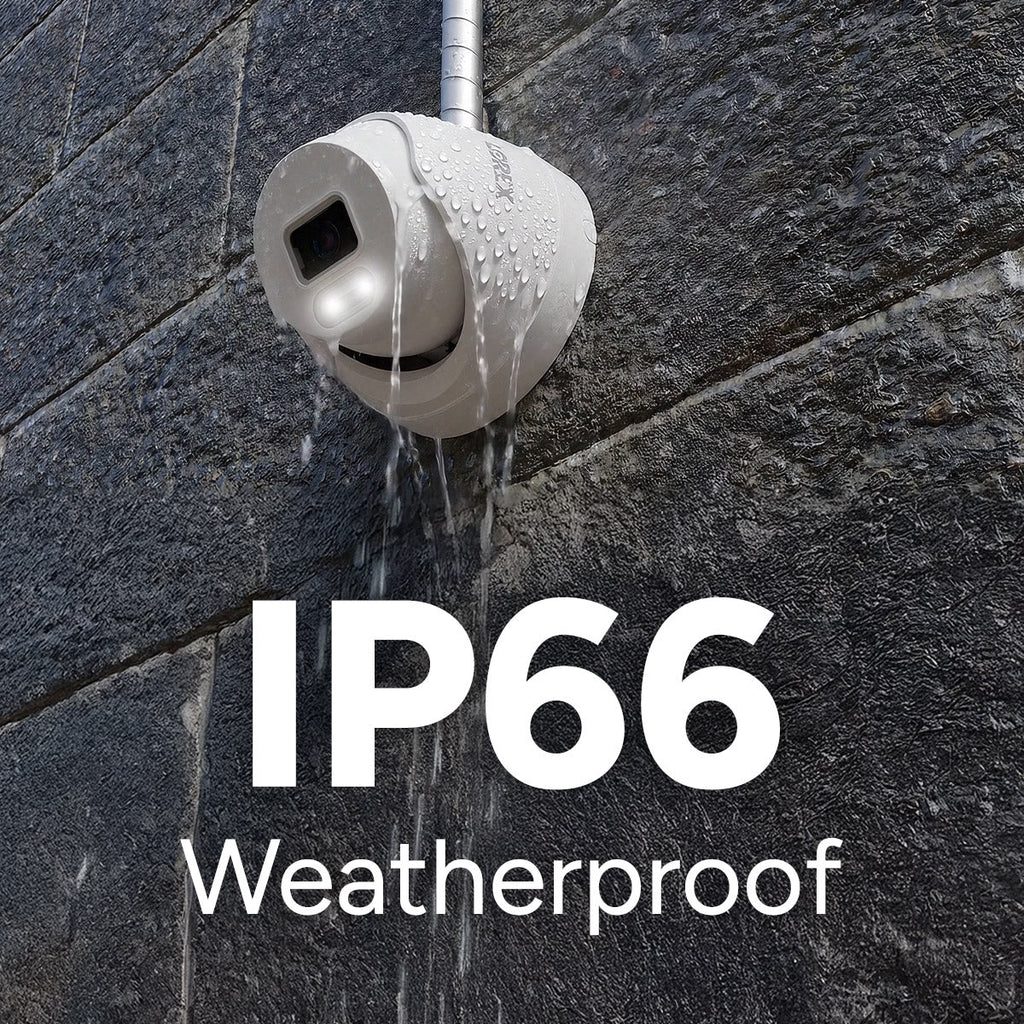

IP66-rated weatherproof cameras
AI detection of people and vehicles
Deterrence LEDs add visible protection

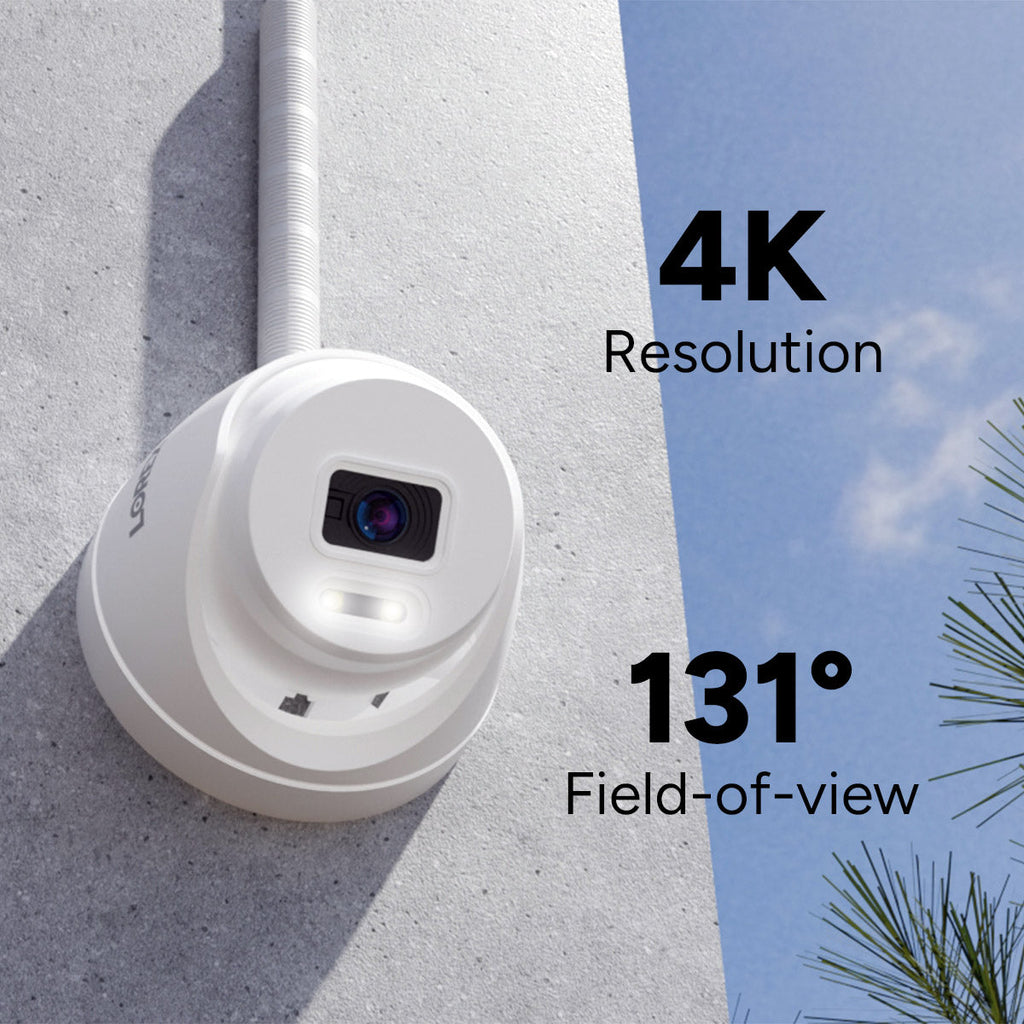

Ultra-wide 131° diagonal field of view

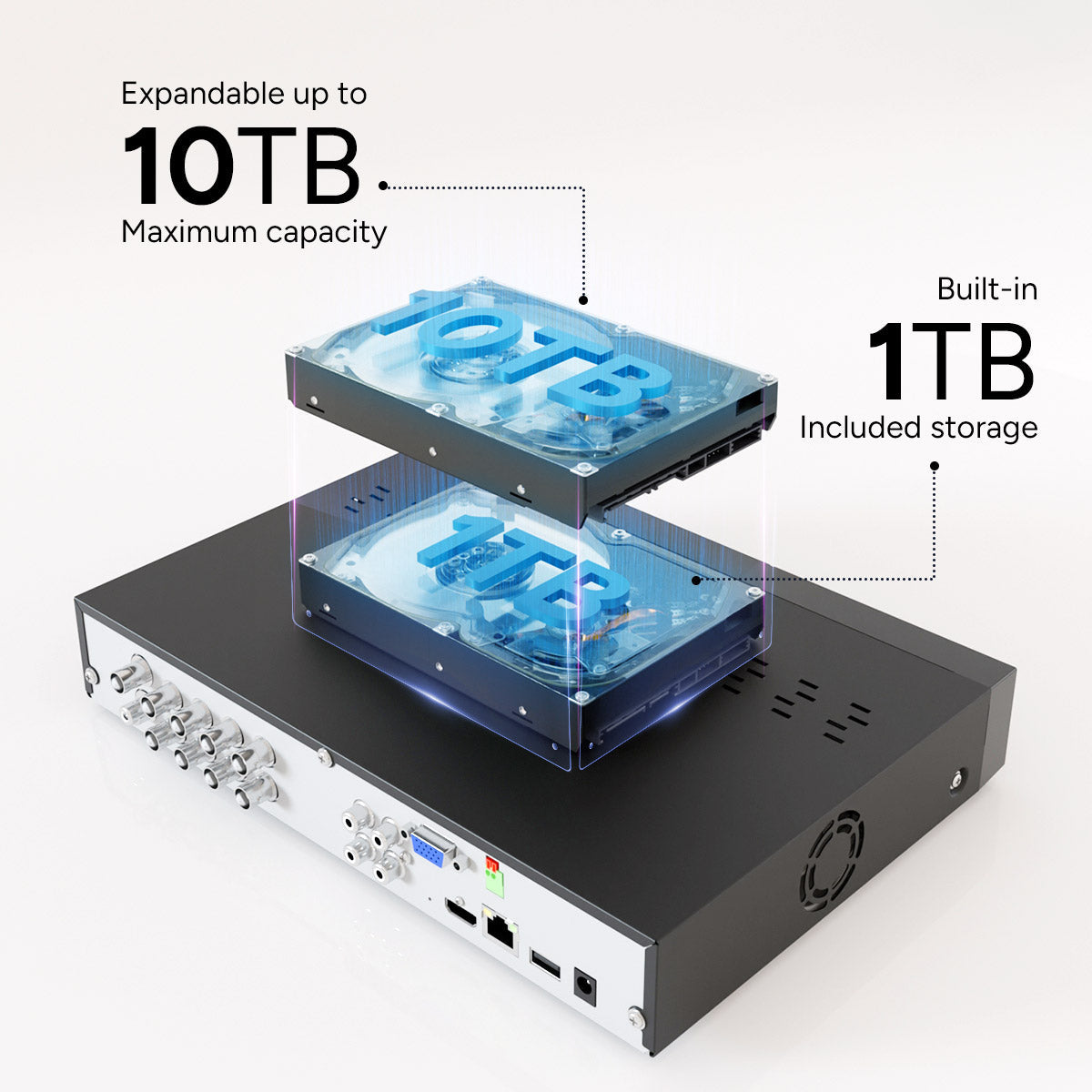

1TB included, expandable up to 10TB
QuietTek technology allows placement near TVs and living areas
Compatible with the Lorex Connect app
Specifications
Recorder: TC 4K 8-Channel DVR
| Channels | 8 |

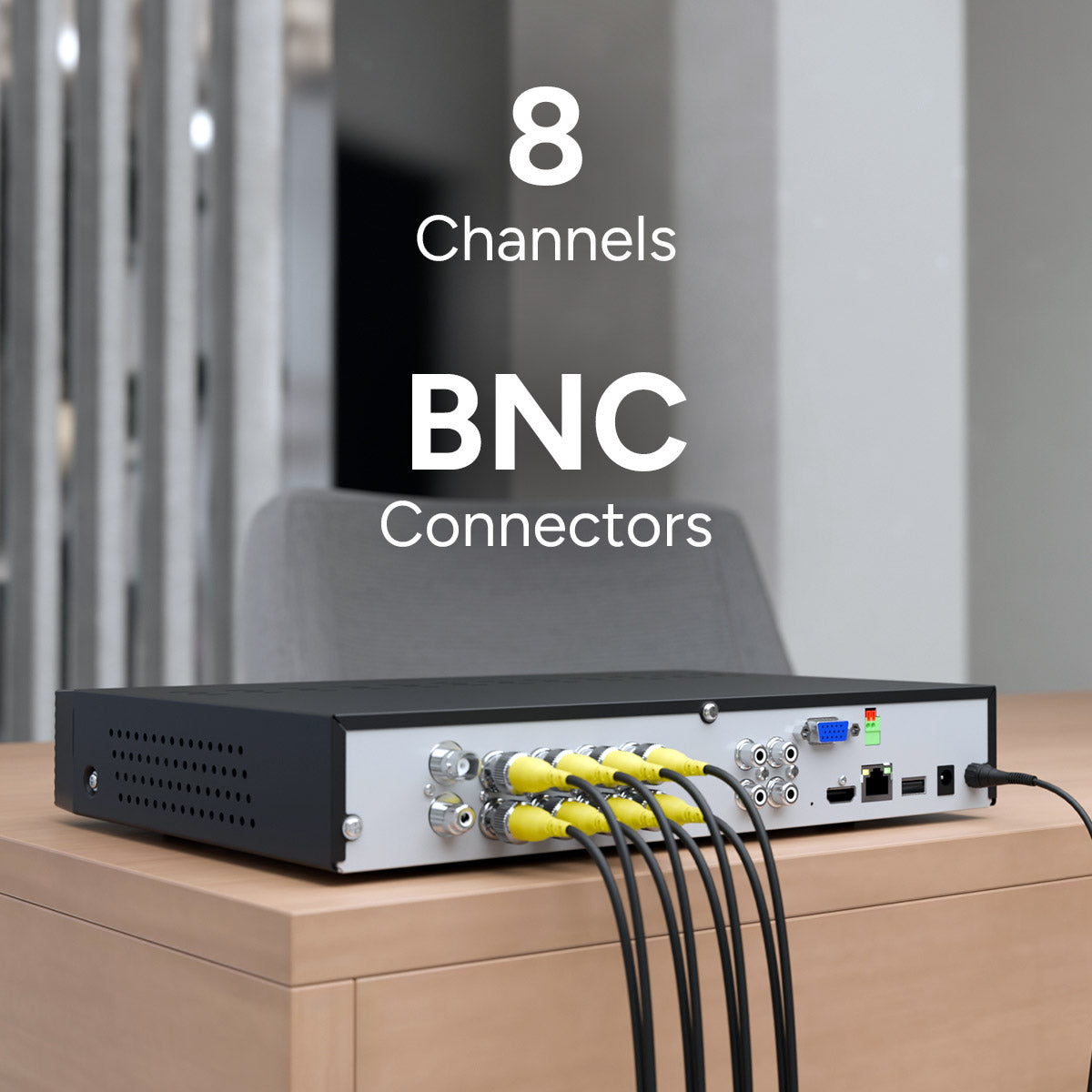

| Video Inputs | 8 × analog (BNC) |
| Video Outputs | 1 × HDMI · 1 × VGA |
| Display Resolution | Up to 4K Ultra HD (3840 × 2160) |
| Recording Resolutions | 4K (8MP), 5MP, 4MP, 1080p (2MP) |
| Video Compression | H.264 / H.265 |
| Storage | 1TB hard drive included · 1 SATA bay · expandable up to 10TB |
| AI Analytics | Person & vehicle detection, perimeter intrusion, line crossing, face detection (1 AI detection type per channel, up to 8 AI-enabled channels) |
| Backup | USB flash drive or external USB HDD |
| Playback | Up to 8 channels, synchronized |
| Mobile App | Lorex Connect (iOS and Android) |
| Network & USB | 10/100 Base-TX (RJ45) · 2 × USB 2.0 (1 front, 1 back) |
| Power | DC 12 V / 2 A · 4.7 W (excluding hard drive) |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimensions & Weight | 11.81 × 8.66 × 2.08 in (300 × 220 × 53 mm) · 1.21 lb (0.55 kg) |
Cameras: T5 4K Analog Turret Cameras
| Resolution | 4K (8MP, 3840 × 2160) |
| Video Type | Analog HD · BNC output · TVI / AHD / CVI / CVBS |
| Image Sensor | CMOS |
| Lens | Fixed 2.8 mm, F1.6 |
| Field of View | 109° horizontal · 57° vertical · 131° diagonal |
| Night Vision | Color Night Vision · IR up to 98 ft (30 m) in total darkness |
| Power | 12 V DC · 4 W max (IR on) |
| Weather Rating | IP66 (indoor / outdoor use) |
| Operating Temperature | -22°F to 131°F (-30°C to 55°C) |
| Housing | Plastic |
| Dimensions & Weight | 3.93 × 3.93 × 3.54 in (99.8 × 99.8 × 88.9 mm) · 0.85 lb (0.39 kg) |
Download the recorder specification sheet (PDF)
Download the camera specification sheet (PDF)
Recorder manuals, downloads and support articles (Lorex)
Camera manuals, downloads and support articles (Lorex)
Specifications as published by Lorex and subject to change.
What's Included
- ✔ TC 4K 8-Channel DVR (RD501A-81B-AB1)
- ✔ 1TB hard drive

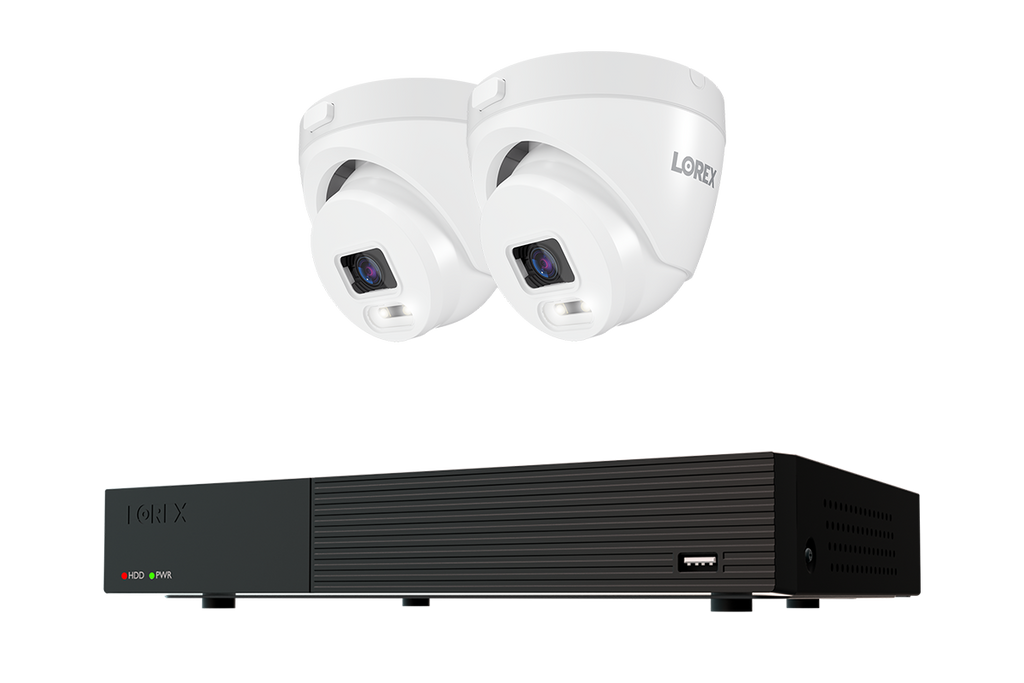

- ✔ T5 4K Analog Turret Cameras (CA501A-1TW-AB1), quantity per your selected option
- ✔ Mounting hardware, a 60 ft BNC/DC cable and a 12 V / 1 A power adapter for each camera
- ✔ Network (Ethernet) cable, HDMI cable, USB mouse and power adapter for the recorder
Expand Your System
The recorder in this system supports up to 8 cameras, so you can add more compatible Lorex T Series cameras whenever you need them:
Need a different system? Browse our T Series systems, DVRs and cameras.
Warranty & Extended Coverage
Every purchase includes Lorex’s standard 1-year limited warranty, valid from your date of purchase. Some exceptions apply — see the Lorex warranty terms. Want protection for longer? Choose an Extended Warranty option on this page.
| Option | Total Coverage |
|---|---|
| No Extended Warranty | 1 year (included) |
| 1-Year Extended Warranty | 2 years total |
| 2-Year Extended Warranty | 3 years total — longest coverage |
Coverage for every option runs from your date of purchase, so please keep your order confirmation as proof of purchase. Extended coverage follows the same terms as the Lorex limited warranty.
To make a warranty claim, contact us with your order number and we will guide you to the right Lorex support team, who will handle your claim. All claims are subject to eligibility and the Lorex warranty terms and conditions.
Read the full Warranty & Claims terms.
Shipping, Returns & Contact
- No tax added: no tax is added at checkout, so the price you see on the product is the price you pay.
- Canada: Standard shipping is $12 (4 to 8 business days) and free on orders of $150 or more. Express shipping (2 to 5 business days) is $15. Tracking number provided.
- United States: Standard International shipping is $15 CAD and free on orders of $150 or more. Express International shipping is $25 CAD. Tracking number provided.
- Availability: Items are ordered from our supplier when you place your order. If an item becomes unavailable, we will contact you and refund you in full.
- Returns: see our Return Policy
- Contact: support@thegalaxystore.ca · Contact page
Frequently Asked Questions
What is included in this system?
The 8-channel recorder, a 1TB hard drive, the number of cameras you select, and a cable, power adapter and mounting hardware for each camera. See What’s Included above for the full list.
Are cables included?
Each camera includes a 60 ft BNC/DC cable and a 12 V / 1 A power adapter, and the recorder includes a network cable and an HDMI cable. If a camera is farther from the recorder than the cable allows, additional cable is sold separately.
Is a monitor included?
No. A TV or monitor is not included. The recorder has HDMI and VGA outputs so you can connect your own display.
Is storage included?
Yes. It includes a 1TB hard drive and has one drive bay, so you can expand storage up to 10TB.
Are there any monthly fees?
No. There are no monthly fees or subscriptions. Footage is stored locally on the recorder.
What do I need for remote viewing?
Remote access requires a high-speed internet connection and a router (not included). Lorex recommends a minimum upload speed of 6 Mbps for the best video performance, and up to 3 devices can connect at the same time.
Can I add more cameras later?
Yes. The recorder supports up to 8 cameras in total. You can add any compatible Lorex T Series camera, see Expand Your System above.
How many cameras can use AI detection?
AI detection works with 1 detection type per channel, on up to 8 AI-enabled channels.
How does the Extended Warranty work?
Choose the 1-Year or 2-Year Extended Warranty option on this page to extend your coverage to 2 or 3 years total, counted from your date of purchase. To make a claim, contact us with your order number and we will guide you to the right Lorex support team. Claims are subject to eligibility and the Lorex warranty terms and conditions.
Is installation included?
No. Installation is not included and we do not offer installation services. The recorder ships with a network cable, HDMI cable, USB mouse and power adapter, and each camera ships with its own mounting hardware.
Compare T Series 4K DVR Systems
| T5 4K · 8-Channel (this system) |
T5 4K · 16-Channel | T1 1080p · 8-Channel | T1 1080p · 16-Channel | |
|---|---|---|---|---|
| Camera Resolution | 4K (8MP) | 4K (8MP) | 1080p | 1080p |
| DVR Channels | 8 | 16 | 8 | 16 |
| Camera Options | 2, 4, 6 or 8 | 4, 8, 12 or 16 | 2, 4, 6 or 8 | 4, 8, 12 or 16 |
| Night Vision | Color Night Vision · IR up to 98 ft | Color Night Vision · IR up to 98 ft | Color Night Vision · IR up to 65 ft | Color Night Vision · IR up to 65 ft |
| Storage | 1TB (up to 10TB) | 1TB (up to 10TB) | 1TB (up to 10TB) | 1TB (up to 10TB) |
| Best for | Sharp 4K detail, up to 8 cameras | Sharp 4K detail, up to 16 cameras | HD coverage at a great value, up to 8 cameras | HD coverage at a great value, up to 16 cameras |
